EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) WIRE HARNESS Parts Diagram

Generator, Made in Japan

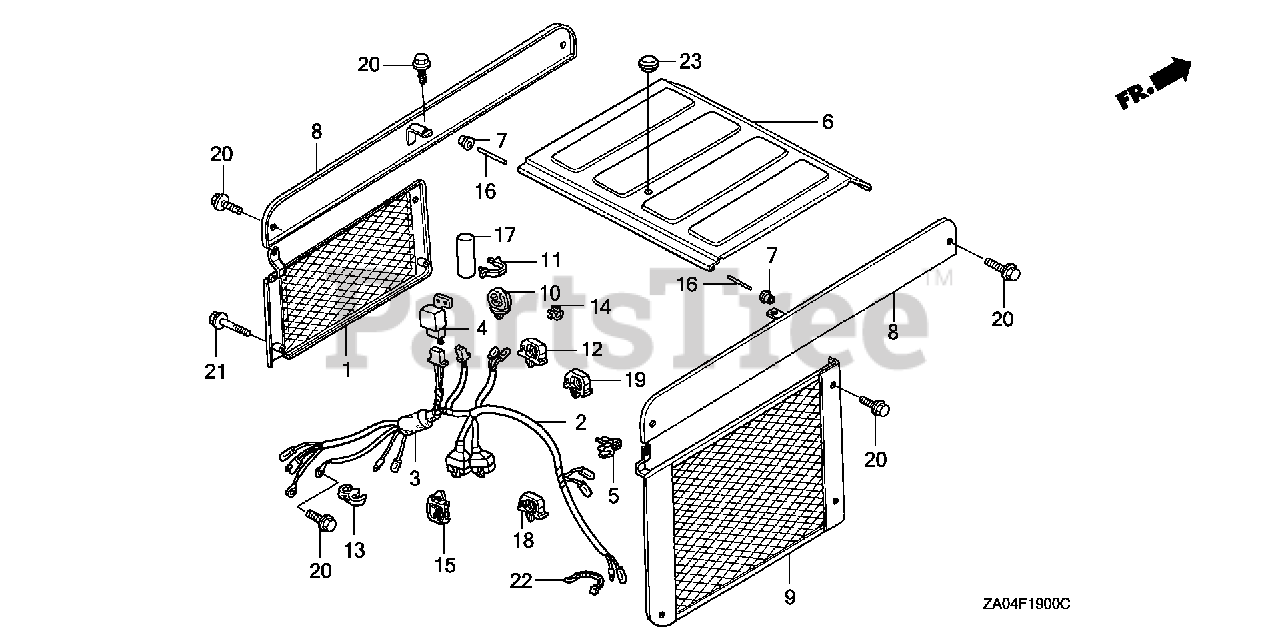

WIRE HARNESS Parts Diagram

  • Title

1

Honda 18321-ZA0-000ZA

COVER, MUFFLER *NH105* (MAT BLACK)

$

$

Not available

2

Honda 32100-ZA0-730

WIRE HARNESS

$

$

Not available

3

Honda 32108-046-750

COVER, WIRE HARNESS CONNECTOR

$4.99

$

Usually ships in 3-6 days

0

6

Honda 63110-ZA0-000ZB

COVER, TOP *R280* (POWER RED)

$

$

Not available

7

Honda 63127-ZA0-000

BUSH, TOP COVER

$

$

Not available

8

Honda 63130-ZA0-000ZB

COVER (UPPER) *R280* (POWER RED)

$

$

Not available

9

Honda 63190-ZA0-000ZA

COVER, RADIATOR *NH105* (MAT BLACK)

$

$

Not available

16

Honda 90752-ZA0-000

PIN, TOP COVER HINGE

$4.49

$

Usually ships in 3-6 days

0

20

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95700-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0

23

Honda 38564-SA5-000

GROMMET, WASHER HOLE

$10.99

$

Usually ships in 3-6 days

0
