EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) ROTOR + STATOR Parts Diagram

Generator, Made in Japan

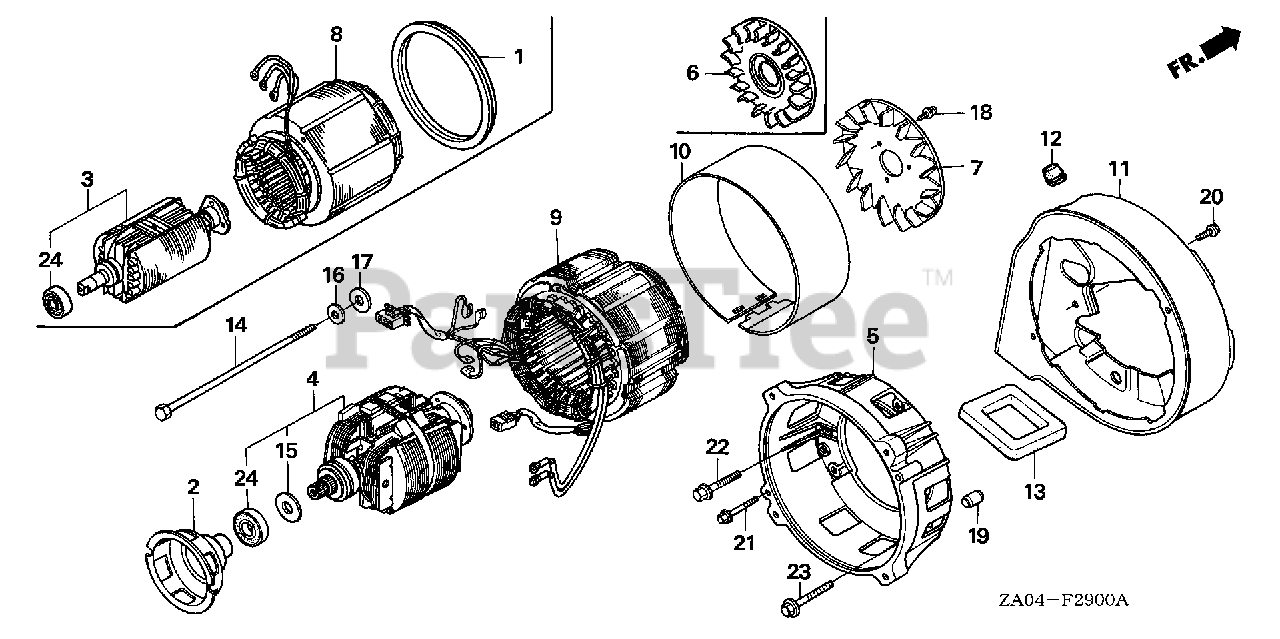

ROTOR + STATOR Parts Diagram

  • Title

2

Honda 28451-ZA0-000

PULLEY, STARTER

$

$

Not available

4

Honda 31105-ZA0-731

ROTOR

Note: Use up to Frame SN 1013216.

$

$

Not available

4

Honda 31105-ZA0-732

SEE PART DETAILS - SUP; ROTOR
(Superseded to 31105-ZA0-733)

Note: Use from Frame SN 1013217.

$

$

Not available

4

Honda 31105-ZA0-733

SEE PART DETAILS - PRI; ROTOR

Note: Use from Frame SN 1013217.

$

$

Not available

5

Honda 31109-ZA0-000

HOUSING, FR. (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31112-ZA0-003

FAN

$84.99

$

Usually ships in 3-6 days

0

9

Honda 31120-ZA0-731

STATOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31127-ZA0-731ZA

COVER, STATOR *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

11

Honda 31315-ZA0-000

COVER, DUCT (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31316-ZA0-000

GROMMET, DUCT COVER

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90101-ZA0-730

BOLT, HEX. (10X285) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 90501-ZA0-003

WASHER, THRUST

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90503-819-000

WASHER, PLAIN (10MM)

$2.99

$

In Stock, only 1 left!

0

17

Honda 90504-ZA0-000

WASHER (10.5MM)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1013217.

$2.99

$

Usually ships in 3-6 days

0

18

Honda 93893-05014-08

SCREW-WASHER (5X14)

Note: Use up to Frame SN 1013216.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06040-00

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

23

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

23

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

24

Honda 96150-62050-10

BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0
