EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) RADIATOR (1) Parts Diagram

Generator, Made in Japan

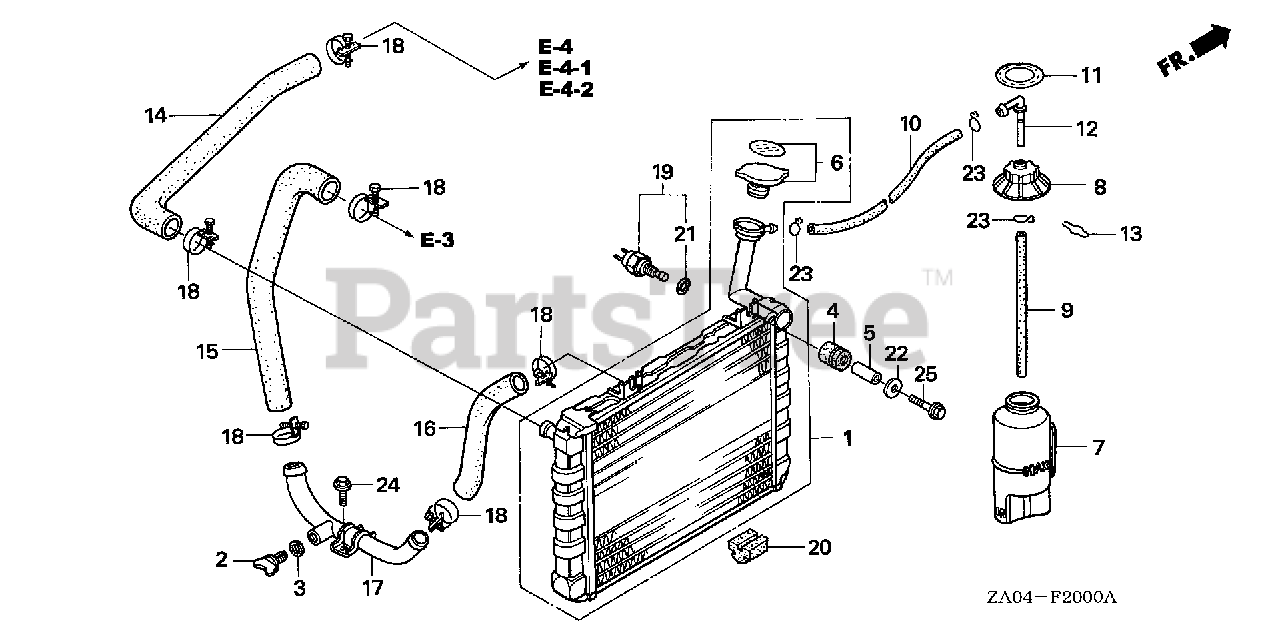

RADIATOR (1) Parts Diagram

  • Title

1

Honda 19010-ZA0-003

RADIATOR (TOYO)

$

$

Not available

2

Honda 19011-PA0-003

SEE PART DETAILS - SUP; PETCOCK, DRAIN (DENSO)

$

$

Currently unavailable

3

Honda 19012-ZB5-003

SEE PART DETAILS - PRI; GASKET, DRAIN

$4.99

$

In Stock, only 2 left!

0

4

Honda 19021-692-000

RUBBER, RADIATOR MOUNTING

$7.49

$

Usually ships in 3-6 days

0

5

Honda 19024-692-000

COLLAR, DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 19045-692-003

CAP, RADIATOR (DENSO)

$56.99

$

Usually ships in 3-6 days

0

7

Honda 19101-PA0-000

TANK, RESERVE

$59.99

$

Usually ships in 3-6 days

0

8

Honda 19102-PA0-020

CAP, RESERVE TANK

$22.99

$

Usually ships in 3-6 days

0

9

Honda 19103-PA0-000

HOSE, RESERVE TANK

$21.99

$

Usually ships in 3-6 days

0

10

Honda 19104-634-000

TUBE, RESERVOIR TANK

$

$

Not available

11

Honda 19105-PA0-010

MARK, RESERVE TANK

$13.99

$

Usually ships in 3-6 days

0

12

Honda 19106-PA0-020

JOINT, RESERVE TANK

$4.99

$

Usually ships in 3-6 days

0

13

Honda 19107-PA0-000

CLIP, RESERVE TANK JOINT

$26.99

$

Usually ships in 3-6 days

0

14

Honda 19501-ZA0-000

HOSE, WATER (UPPER)

$69.99

$

Usually ships in 3-6 days

0

15

Honda 19502-ZA0-000

HOSE, WATER (LOWER)

$51.99

$

Usually ships in 3-6 days

0

16

Honda 19503-ZA0-000

HOSE B, WATER (LOWER)

$27.99

$

Usually ships in 3-6 days

0

17

Honda 19505-ZA0-000

PIPE, JOINT (LOWER)

$

$

Not available

18

Honda 19511-679-010

CLIP, WATER HOSE

$15.99

$

Usually ships in 3-6 days

0

19

Honda 37765-ZA0-005

SWITCH, THERMOSTAT

$97.99

$

Usually ships in 3-6 days

0

20

Honda 60867-ZA0-000

RUBBER, RADIATOR MOUNTING

$15.99

$

Usually ships in 3-6 days

0

21

Honda 91307-PH7-660

O-RING (13.5X1.4)

$3.99

$

In Stock, only 2 left!

0

22

Honda 90563-355-000

WASHER, WHEEL (6MM)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

24

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95700-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
