EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) FRAME PIPE (1) Parts Diagram

Generator, Made in Japan

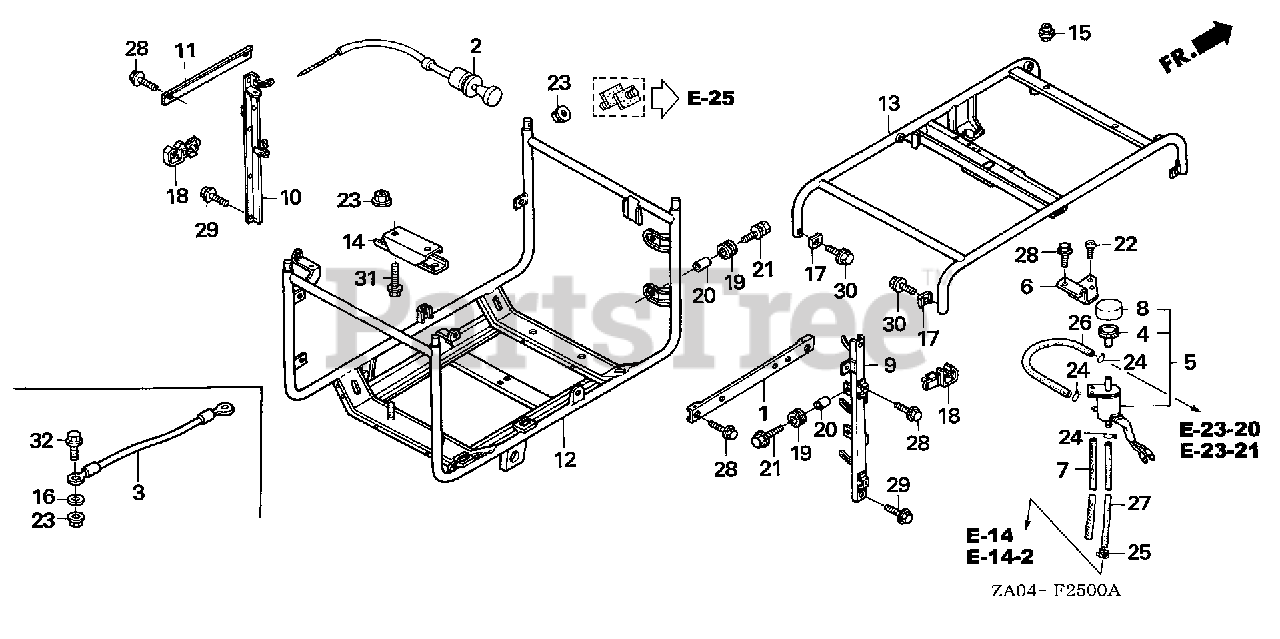

FRAME PIPE (1) Parts Diagram

  • Title

1

Honda 17521-ZA0-000

STAY, FR. TANK

$58.99

$

Usually ships in 3-6 days

0

2

Honda 17950-ZA0-000

CABLE, CHOKE

$27.99

$

In Stock, only 1 left!

0

4

Honda 36138-PM1-G01

FILTER ASSY., SOLENOID VALVE

$

$

Not available

5

Honda 36160-ZA0-003

VALVE ASSY., CONTROL

$146.99

$

Usually ships in 3-6 days

0

6

Honda 36161-ZA0-000

STAY, IDLE CONTROL

$12.99

$

Usually ships in 3-6 days

0

7

Honda 36162-898-000

PROTECTOR, TUBE (9X210)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 38776-671-000

CAP, AIR FILTER

$

$

Not available

9

Honda 50165-ZA0-000

PILLAR, FR.

$

$

Not available

10

Honda 50175-ZA0-000

PILLAR, RR. (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 50185-ZA0-000

GUARD, RR.

$41.99

$

Usually ships in 3-6 days

0

12

Honda 50310-ZA0-000

FRAME (LOWER)

$1015.99

$

Usually ships in 3-6 days

0

13

Honda 50350-ZA0-000

FRAME (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 50820-ZA0-000

RUBBER, GENERATOR MOUNTING

$119.99

$

Usually ships in 3-6 days

0

15

Honda 75891-ZA0-000

CUSHION, TOP COVER

$

$

Not available

17

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 9

0

19

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

20

Honda 91552-898-000

COLLAR, CONTROL BOX

$5.49

$

Usually ships in 3-6 days

0

21

Honda 93404-06020-00

BOLT-WASHER (6X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05008-0G

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

24

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

25

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

26

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X170)

$14.99

$

Usually ships in 3-6 days

0

27

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X230)

$14.99

$

Usually ships in 3-6 days

0

28

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0

30

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

31

Honda 95701-10025-00

BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
