EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) CYLINDER Parts Diagram

Generator, Made in Japan

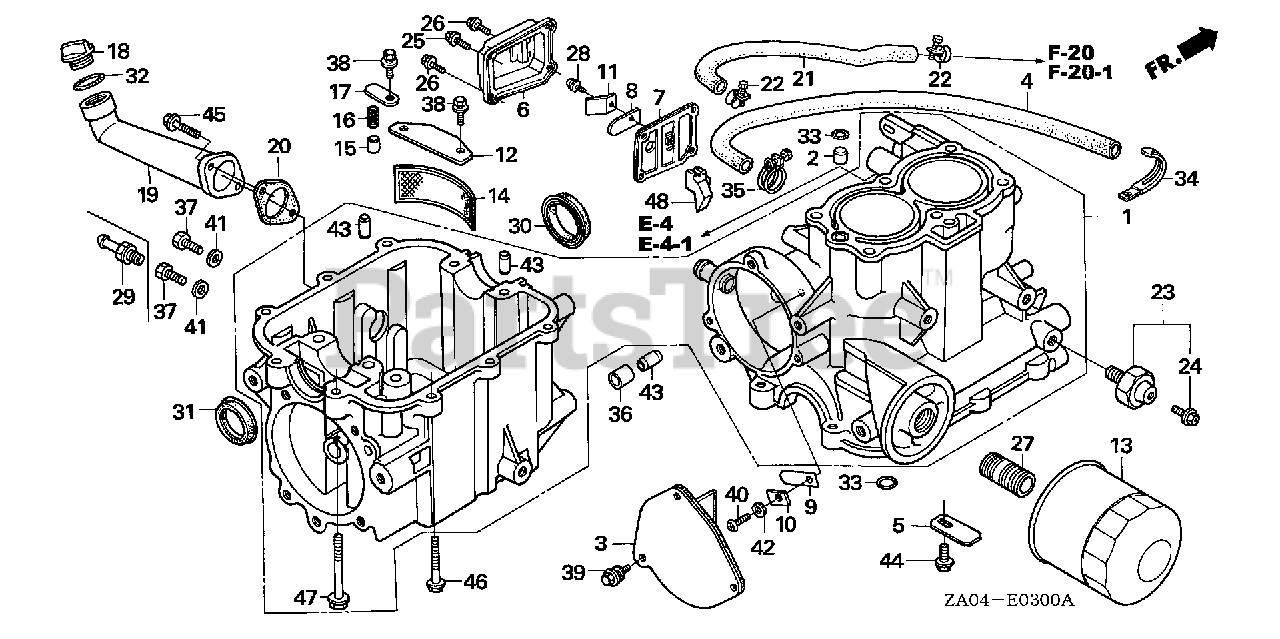

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZA0-000

CYLINDER ASSY.

$

$

Not available

2

Honda 12125-ZA0-000

SEE PART DETAILS - SUP; ORIFICE, OIL CONTROL

$

$

Not available

3

Honda 12129-ZA0-000

COVER ASSY., BREATHER

$

$

Not available

4

Honda 12315-ZA0-010

TUBE, BREATHER (NOT AVAILABLE)

$

$

Not available

5

Honda 12318-ZA0-000

COVER, BREATHER RETURN

$

$

Not available

9

Honda 12372-848-320

PLATE, VALVE

$3.49

$

Usually ships in 3-6 days

0

10

Honda 12373-848-010

STOPPER, VALVE

$3.99

$

Usually ships in 3-6 days

0

12

Honda 15334-ZA0-000

PLATE, OIL FILTER

$9.99

$

Usually ships in 3-6 days

0

13

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

13

Honda 15400-PM3-405

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-PM3-004)

$22.99

$

In Stock, only 2 left!

0

14

Honda 15421-ZA0-000

SCREEN, OIL FILTER

$16.99

$

Usually ships in 3-6 days

0

15

Honda 15473-ZA0-000

VALVE, CHECK

$10.99

$

Usually ships in 3-6 days

0

16

Honda 15474-881-000

SPRING, CHECK VALVE

$5.99

$

Usually ships in 3-6 days

0

17

Honda 15475-ZA0-000

PLATE, CHECK VALVE

$4.99

$

Usually ships in 3-6 days

0

18

Honda 15611-921-000

CAP, OIL (YELLOW)

$13.99

$

Usually ships in 3-6 days

0

19

Honda 15632-ZA0-000

PIPE, OIL FILLER

$62.99

$

Usually ships in 3-6 days

0

20

Honda 15635-ZA0-800

GASKET, OIL PIPE

$3.99

$

Usually ships in 3-6 days

0

23

Honda 37240-ZA0-013

SWITCH, OIL PRESSURE

$44.99

$

Usually ships in 3-6 days

0

24

Honda 90002-PA6-003

BOLT-WASHER (4X8) (DENSO)

$7.99

$

Usually ships in 3-6 days

0

27

Honda 90015-590-000

HOLDER, OIL FILTER

$20.99

$

Usually ships in 3-6 days

0

30

Honda 91201-ZA0-003

OIL SEAL (33X48X7)

$14.99

$

In Stock, only 1 left!

0

31

Honda 91205-ZA0-003

OIL SEAL (30X44X7)

$12.99

$

In Stock, only 4 left!

0

32

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, Qty 11

0

33

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI)

$3.99

$

In Stock, only 1 left!

0

35

Honda 91410-ZA0-000

SEE PART DETAILS - SUP; CLIP A18, TUBE

$

$

Currently unavailable

36

Honda 91501-ZA0-600

SPACER, ENGINE MOUNTING

$

$

Not available

37

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

38

Honda 93402-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 93402-06016-08

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

42

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

44

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

44

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

45

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

46

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

47

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.49

$

In Stock, only 2 left!

0
