EL5000 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) CARBURETOR (1) Parts Diagram

Generator, Made in Japan

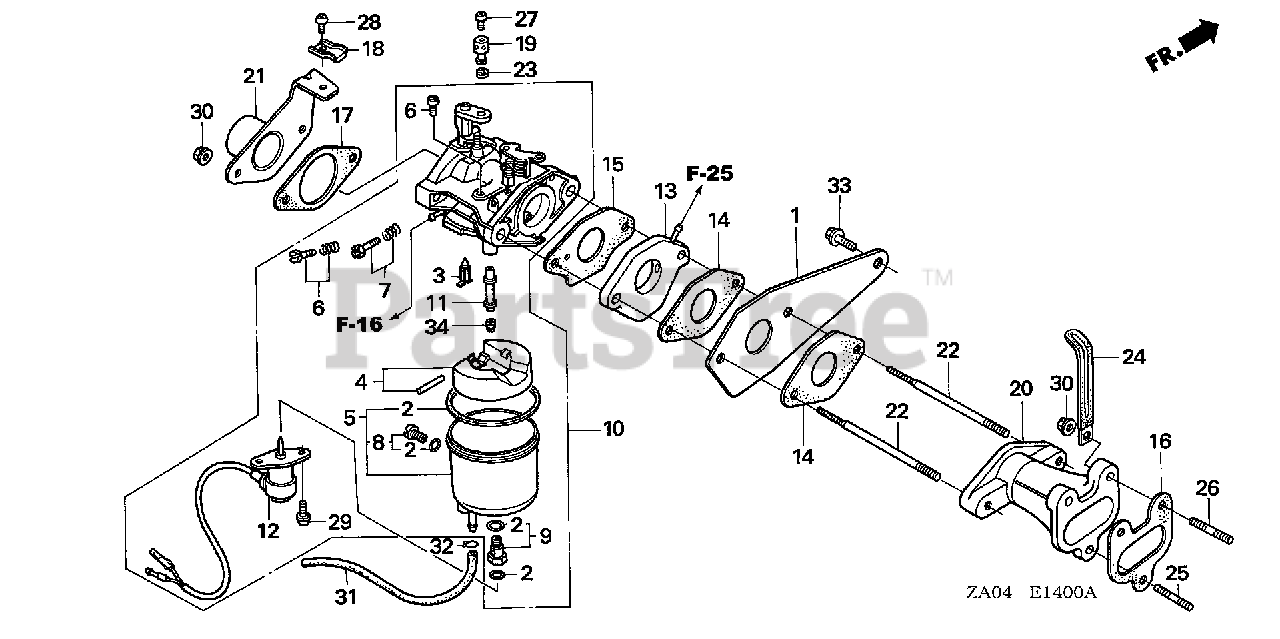

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 11815-ZA0-000

STAY, TIMING BELT

$

$

Not available

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

$24.99

$

Usually ships in 3-6 days

0

3

Honda 16011-KCK-910

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$43.99

$

In Stock, only 2 left!

0

3

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$43.99

$

In Stock, only 2 left!

0

4

Honda 16013-890-015

FLOAT SET

$

$

Not available

5

Honda 16015-ZA0-005

CHAMBER SET, FLOAT

$

$

Currently unavailable

6

Honda 16016-YA0-801

SCREW SET

$20.99

$

Usually ships in 3-6 days

0

6

Honda 16016-730-015

SCREW SET A
(Superseded to 16016-YA0-801)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 16016-YA1-801

SEE PART DETAILS - PRI; SCREW SET A

$18.99

$

In Stock, only 1 left!

0

7

Honda 16016-896-005

SEE PART DETAILS - SUP; SCREW SET A
(Superseded to 16016-YA1-801)

$18.99

$

In Stock, only 1 left!

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZA0-931

SCREW SET

$27.99

$

In Stock, only 1 left!

0

10

Honda 16100-ZA0-005

CARBURETOR ASSY. (BB50A A/B) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16166-ZA0-005

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16200-890-005

VALVE ASSY., SOLENOID

$

$

Not available

13

Honda 16210-ZA0-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

14

Honda 16212-ZA0-306

GASKET, INSULATOR

$2.99

$

In Stock, only 2 left!

0

15

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

15

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

16

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$2.99

$

In Stock, only 2 left!

0

17

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

17

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

18

Honda 16582-883-300

HOLDER, CONTROL CABLE

$4.49

$

In Stock, only 1 left!

0

19

Honda 16617-890-010

HOLDER, CABLE

$8.49

$

In Stock, only 1 left!

0

20

Honda 17100-ZA0-000

MANIFOLD, IN. (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 17214-ZA0-000

PIPE, AIR IN. (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 90042-890-010

BOLT, STUD (8X110)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 3 left!

0

24

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0

25

Honda 92900-06018-0B

BOLT, STUD (6X18)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 92700-06035

BOLT, STUD (6X35)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

28

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

29

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

30

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

31

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X320)

$31.99

$

In Stock, only 1 left!

0

32

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

33

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

33

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

34

Honda 99101-124-0980

JET, MAIN (#98)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1000

JET, MAIN (#100)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1020

JET, MAIN (#102)

$11.99

$

Usually ships in 3-6 days

0
