EL 16 (UT-16004) - Homelite Chainsaw Exploded View Parts Diagram

Chainsaw

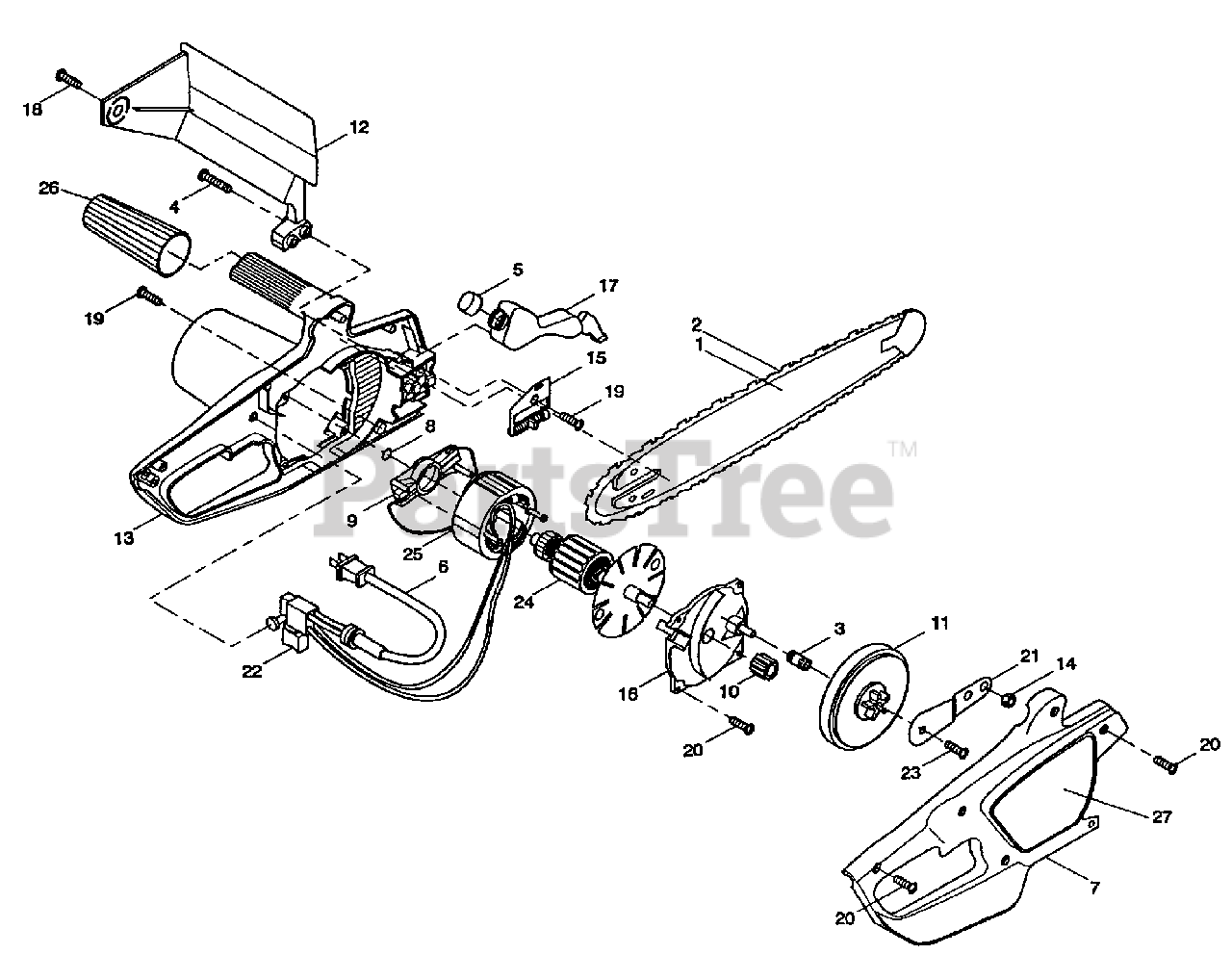

Exploded View Parts Diagram

  • Title

1

Homelite NE12001G7

GUIDE BAR-12" (EL-12)
(Superseded to NE12001O7)

$

$

Not available

Homelite NE16001G7

GUIDE BAR ASSEMBLY (EL-16)

$

$

Currently unavailable

2

Homelite D92448

SAW CHAIN (EL-12)

$

$

Currently unavailable

Homelite D92450

SAW CHAIN (EL-16)

$

$

Currently unavailable

3

Homelite 0028310

SPROCKET ROLLER BEARING

$

$

Not available

4

Homelite 0028323

BOLT-Hex Head

$

$

Not available

5

Homelite 0028318

CAP-Oil Reservoir

$

$

Not available

6

Homelite 0028321

CORD (EL-12)

$

$

Currently unavailable

Homelite 0028331

CORD (EL-16)

$

$

Not available

7

Homelite 0028304

SIDE COVER (EL-12)

$

$

Currently unavailable

Homelite 0028403

SIDE COVER (EL-16)

$

$

Not available

8

Homelite 0028314

DISC-Thrust (EL-12)

$

$

Currently unavailable

Homelite 0028404

WASHER-Thrust (EL-16)

$

$

Not available

9

Homelite 0028329

BEARING & BRUSH HOLDER (EL-12)

$

$

Not available

10

Homelite 0028308

GEAR-Drive

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 0028309

GEAR-Internal

$

$

Not available

12

Homelite 0028301

HAND GUARD-Front

$

$

Currently unavailable

13

Homelite 0028319

HOUSING-Motor
(Superseded to 0028452)

$

$

Not available

Homelite 0028407

GEAR HOUSING ASSEMBLY

$

$

Not available

14

Homelite 0028324

NUT-Hex

$

$

Not available

15

Homelite 0028316

ADJUSTING PLATE ASSEMBLY

$

$

Not available

16

Homelite 0028311

BEARING PLATE (EL-12)

$

$

Not available

17

Homelite 0028317

OIL RESERVOIR

$

$

Not available

18

Homelite 0028322

SCREW-Tap Pan Head

$

$

Not available

19

Homelite 0028315

SCREW-Tap Flat Head

$

$

Not available

20

Homelite 0028305

SCREW-Tap Pan Head

$

$

Not available

21

Homelite 0028307

SPROCKET SUPPORT

$

$

Not available

22

Homelite 0028320

SWITCH-Lock-Off

$

$

Not available

23

Homelite 0028306

SCREW-Shoulder, Pan Head

$

$

Not available

24

ARMATURE

Note: Armature & Field - Special Order Only

$

$

Not available

25

FIELD

Note: Armature & Field - Special Order Only

$

$

Not available

26

Homelite 0028409

GRIP- Handle, Front (EL-16)

$

$

Currently unavailable

27

Homelite 0028402

COVER- Sprocket (EL-16)

$

$

Not available
