EL 14 (UT-16001) - Homelite Chainsaw Chain Saw Parts Diagram

Chainsaw

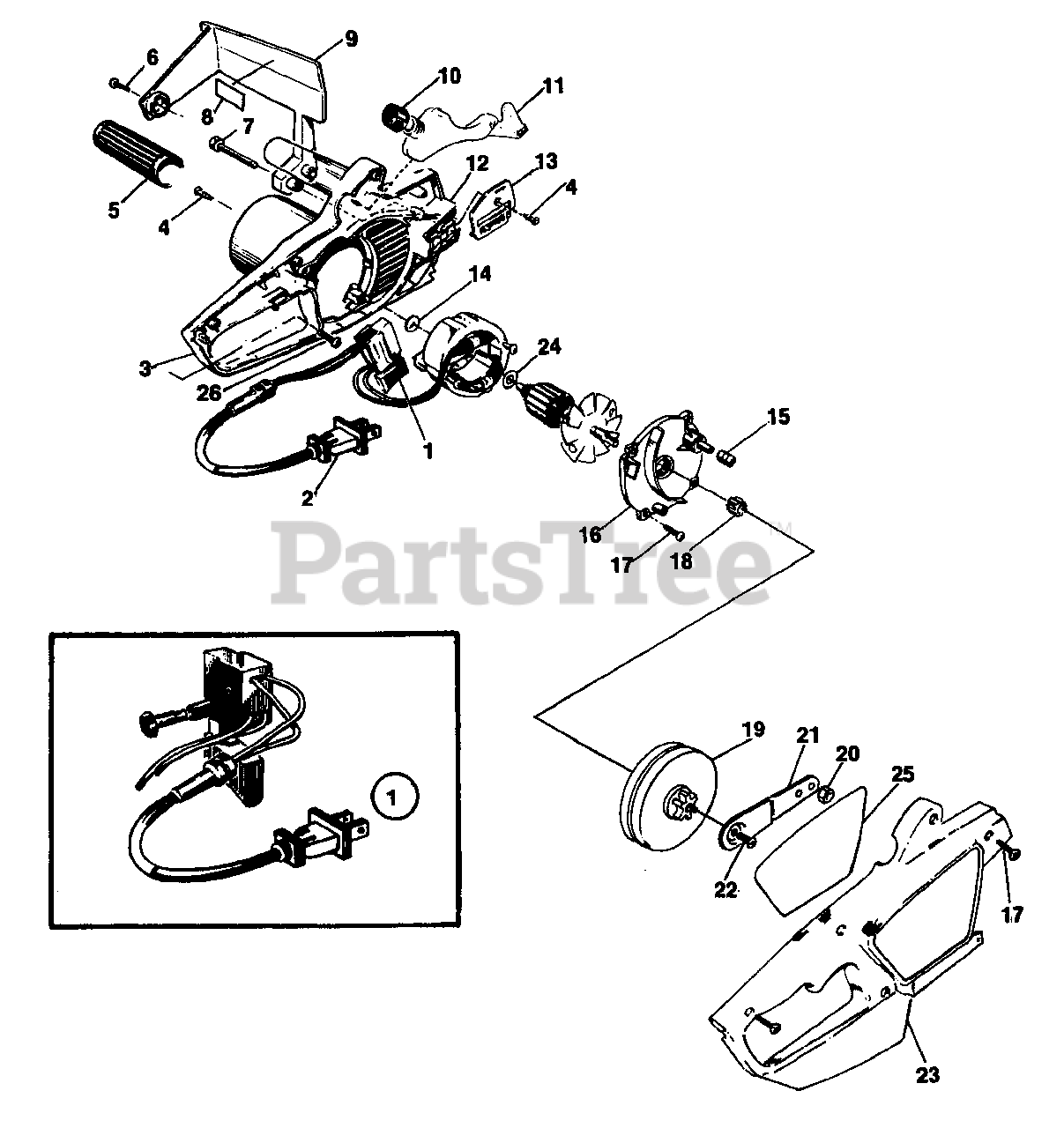

Chain Saw Parts Diagram

  • Title
1

Homelite 0028320

SWITCH - Lock-off

$

$

Not available

$

$

Currently unavailable

3

Homelite 0028319

HOUSING ASSY. - Motor 12"
(Superseded to 0028452)

$

$

Not available

Homelite 0028408

HOUSING ASSY. - Motor 14"

$

$

Currently unavailable

4

Homelite 0028315

SCREW - Tap, Flat Hd.

$

$

Not available

5

Homelite 0028409

GRIP - Handle, Front

Note: (14" only)

$

$

Currently unavailable

6

Homelite 0028322

SCREW - Pan-Hd.

$

$

Not available

7

Homelite 0028323

BOLT - Hex-Hd.

$

$

Not available

8

Homelite 96990A

DECAL - Hand Guard

$

$

Currently unavailable

9

Homelite 0028301

GUARD - Handle, Front

$

$

Currently unavailable

10

Homelite 0028318

CAP - Reservoir, Oil

$

$

Not available

11

Homelite 0028317

RESERVOIR - Oil

$

$

Not available

12

Homelite 0028407

HOUSING ASSY. - Gear

Note: (14" only)

$

$

Not available

13

Homelite 0028316

PLATE ASSY - Adjusting

$

$

Not available

14

Homelite 0028314

DISC THRUST

Note: (12" only)

$

$

Currently unavailable

15

Homelite 0028310

BEARING - Roller, Sprocket

$

$

Not available

16

Homelite 0028311

PLATE - Bearing

Note: (12" only)

$

$

Not available

17

Homelite 0028305

SCREW - Tap. Pan-Hd. 8-16x.88

Note: (12")

$

$

Not available

Homelite 0028305

SCREW - Tap, Pan-Hd. 8-16x.88

Note: (14")

$

$

Not available

18

Homelite 0028308

GEAR - Drive

$11.99

$

Usually ships in 3-7 days

0

19

Homelite 0028309

GEAR - Internal

$

$

Not available

20

Homelite 0028324

NUT - Hex

$

$

Not available

21

Homelite 0028307

SUPPORT - Sprocket

$

$

Not available

22

Homelite 0028306

SCREW - Shoulder, Pan-Hd.

$

$

Not available

23

Homelite 0028304

COVER - Side

Note: (12")

$

$

Currently unavailable

Homelite 0028403

COVER - Side

Note: (14")

$

$

Not available

24

Homelite 0028404

WASHER - Thrust

Note: (14" only)

$

$

Not available

25

Homelite 0028402

COVER - Sprocket

Note: (14" only)

$

$

Not available

26

Homelite 0028322

SCREW - Tap, Pan-Hd.

Note: (14" only)

$

$

Not available
