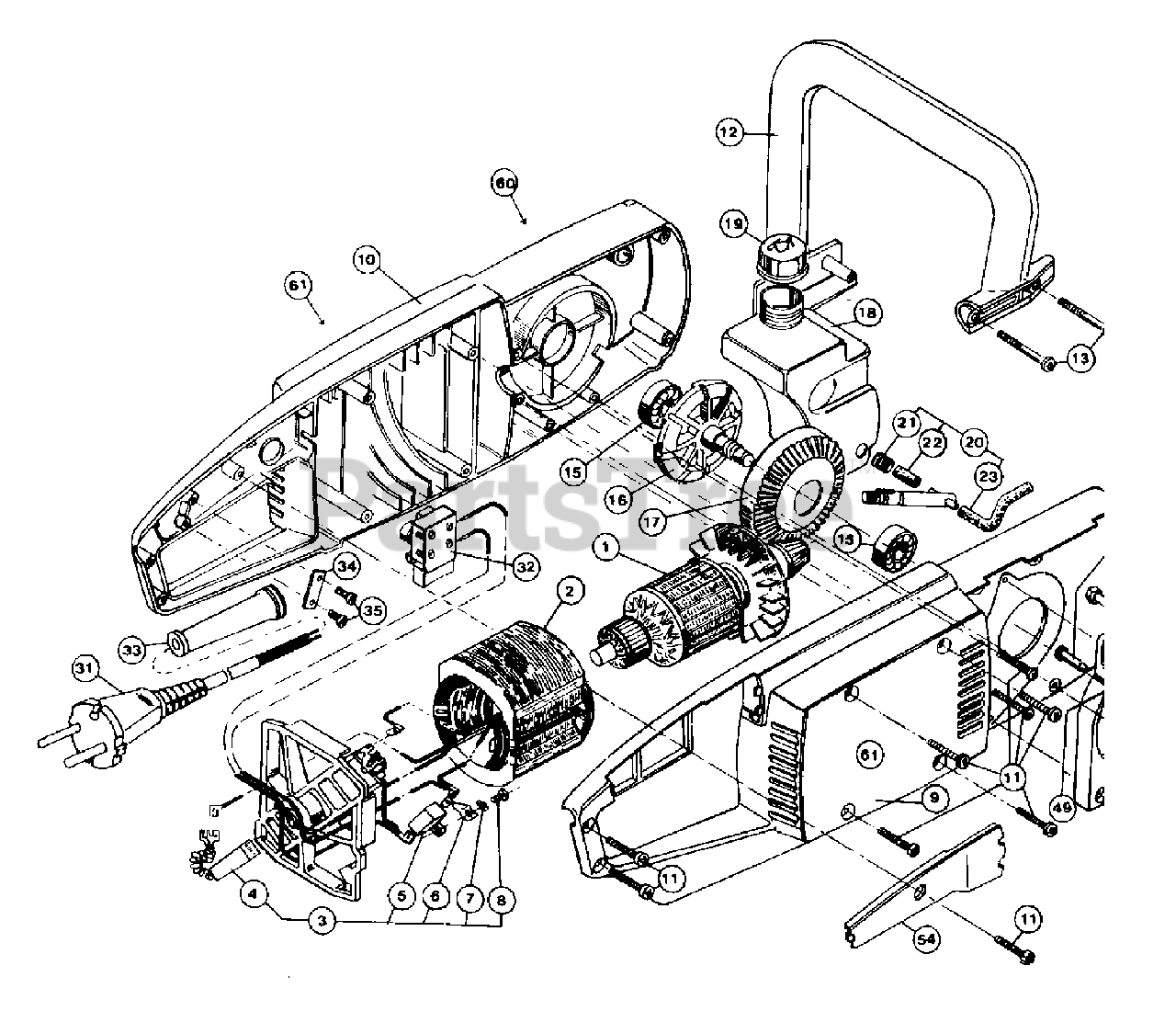

EL 14 - Jonsered Chainsaw, Electric (1990-01) MOTOR Parts Diagram

Chainsaw, Electric

MOTOR Parts Diagram

  • Title

1

Jonsered 508030201

ARMATURE 220V

Note: 220 V

$

$

Not available

5080302-02

Jonsered 508030202

ARMATURE 240V

Note: 240 V

$

$

Not available

2

Jonsered 508030210

FIELD COIL 220V

Note: 220 V

$

$

Not available

5080302-10

Jonsered 508030210

FIELD COIL 220V

Note: 240 V

$

$

Not available

3

Jonsered 508030401

BRUSH HOLDER ASS'Y NLA

$

$

Not available

4

Jonsered 400084801

CARBON BRUSH

$

$

Not available

5

Jonsered 508037001

CAPACITOR

$

$

Not available

6

Jonsered 508037701

SPRING

$

$

Not available

7

Jonsered 735213651

LOCK WASHER 4.3X8

$

$

Not available

8

Jonsered 729534001

SCREW RXS B8X9.5

$3.49

$

In Stock, Qty 11

0

9

Jonsered 508030703

MOTOR HOUSING R.

$223.86

$

Usually ships in 3-10 days

0

10

Jonsered 508030603

MOTOR HOUSING L.

$223.86

$

Usually ships in 3-10 days

0

11

Jonsered 508030901

SCREW

$3.49

$

Usually ships in 3-10 days

0

12

Jonsered 508031001

FRONT HANDLE NLA

$

$

Not available

13

Jonsered 508031101

SCREW

$

$

Not available

14

Jonsered 508031201

SCREW

$5.99

$

In Stock, only 2 left!

0

54

Jonsered 508039903

HANDLE FILLER

$

$

Not available

15

Jonsered 738210102

BALL BEARING

$20.99

$

In Stock, only 3 left!

0

16

Jonsered 508031302

DRIVE SHAFT

$

$

Not available

17

Jonsered 508031701

GEAR WHEEL

$

$

Not available

18

Jonsered 508031801

OIL TANK NLA

$

$

Not available

19

Jonsered 508031901

TANK CAP
(Superseded to 538241060)

$

$

Not available

20

Jonsered 508032001

OIL PUMP COMPL.

$

$

Not available

21

Jonsered 508032301

OIL FILTER

$

$

Not available

22

Jonsered 508032201

HOSE

$

$

Not available

23

Jonsered 508032202

HOSE

$

$

Not available

24

Jonsered 508032702

CLUTCH COMPL.

$

$

Not available

62

Jonsered 508032901

FRIKTION BAND

$

$

Not available

63

Jonsered 508033001

SPRING

$

$

Not available

64

Jonsered 508032801

HUB

$

$

Not available

65

Jonsered 508033101

NUT

$

$

Not available

66

Jonsered 508033204

CLUTCH DRUM

$

$

Not available

67

Jonsered 508033202

NEEDLE BEARING

$

$

Not available

25

Jonsered 508033301

WASHER

$

$

Not available

26

Jonsered 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

27

Jonsered 508033403

CHAIN COVER

$

$

Not available

28

Jonsered 731231655

NUT M6M M6
(Superseded to 503222402)

$5.99

$

In Stock, only 2 left!

0

31

Jonsered 508033802

CABLE W PLUG
(Superseded to 508033801)

Note: N S DK SF D B NL F A I E P

$24.22

$

Usually ships in 3-10 days

0

5080339-01

Jonsered 508033901

CABLE W/ PLUG NLA

Note: CH

$

$

Not available

5080340-02

Jonsered 508034002

CABLE W/ PLUG
(Superseded to 508034007)

Note: UK IR (PLUG)

$102.99

$

In Stock, only 4 left!

0

5080340-05

Jonsered 508034005

CABLE WITH PLUG NLA

Note: UK IR SOCKET)

$

$

Not available

5080340-03

Jonsered 508034003

CABLE W/ PLUG

Note: AUS NZ

$

$

Not available

32

Jonsered 508034101

SWITCH W/ CATCH
(Superseded to 508034103)

$20.99

$

In Stock, Qty 7

0

33

Jonsered 508034201

SLEEVE

$

$

Not available

34

Jonsered 508034301

CABLE CLAMP

$

$

Not available

35

Jonsered 508034401

SCREW

$

$

Not available

36

Jonsered 508034501

CHAINBRAKE COMPL. NLA

$

$

Not available

37

Jonsered 508034701

CHAIN CATCHER

$

$

Not available

38

Jonsered 508034801

SCREW

$

$

Not available

39

Jonsered 508035601

LOCK NUT

$

$

Not available

40

Jonsered 508035401

BEARING

$

$

Not available

41

Jonsered 508035301

RELEASE LEVER

$

$

Not available

42

Jonsered 508034901

BRAKE BAND

$

$

Not available

43

Jonsered 508035001

SPRING

$

$

Not available

44

Jonsered 723133975

SCREW MCS 5X40
(Superseded to 723133976)

$6.99

$

In Stock, Qty 20+

0
