EKT750-3014 - Kohler 7500 Series PRO EFI Engine, Made for Excel, 27hp, 20.1kW 04 CylinderHead/Breather Parts Diagram

7500 Series PRO EFI Engine, Made for Excel, 27hp, 20.1kW

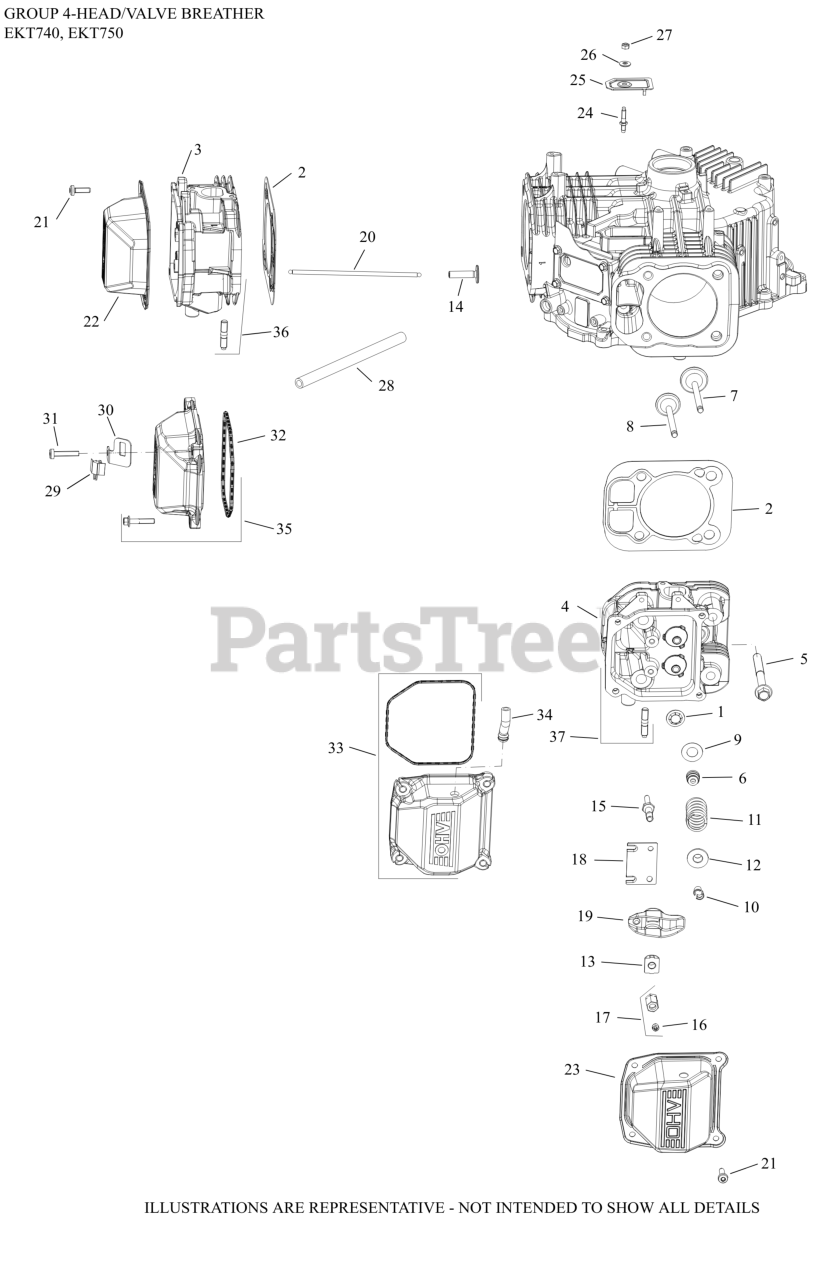

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 24 018 05-S

RETAINER, VALVE GUIDE (KM)

$2.49

$

In Stock, only 2 left!

0

2

Kohler 32 841 02-S

KIT, CYLINDER HEAD GASKET

$19.99

$

In Stock, Qty 20+

0

3

Kohler 32 318 21-S

HEAD, ASSY CYL (#1)-USE 32 755 29-S
(Superseded to 32 818 01-S)

$198.99

$

Usually ships in 2-5 days

0

4

Kohler 32 318 22-S

HEAD, ASSY CYL (#2)-(#3275530S)
(Superseded to 32 818 02-S)

$198.99

$

In Stock, only 1 left!

0

5

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 5

0

6

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

7

Kohler 32 017 01-S

VALVE, INTAKE

$8.49

$

In Stock, only 1 left!

0

7

Kohler 32 017 02-S

VALVE, INTAKE (.25) - (#2401702S)
(Superseded to 24 017 02-S)

$

$

Not available

8

Kohler 32 016 01-S

VALVE, EXHAUST

$15.99

$

In Stock, Qty 14

0

8

Kohler 32 016 02-S

VALVE, EXHAUST (.25)

$15.99

$

In Stock, only 3 left!

0

9

Kohler 275067-S

SPACER (.010")

$8.49

$

In Stock, only 2 left!

0

10

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

11

Kohler 25 089 17-S

SPRING VALVE

$2.49

$

In Stock, only 3 left!

0

12

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

13

Kohler 25 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

14

Kohler 32 019 02-S

TAPPET

$13.99

$

In Stock, only 3 left!

0

15

Kohler 32 072 04-S

STUD, ROCKER

$4.99

$

In Stock, only 3 left!

0

16

Kohler 25 086 168-S

SCREW, SET

$4.49

$

In Stock, only 2 left!

0

17

Kohler 32 100 05-S

HEX NUT ASSEMBLY

$3.99

$

In Stock, Qty 7

0

18

Kohler 32 146 09-S

PLATE, GUIDE

$2.99

$

In Stock, only 3 left!

0

19

Kohler 32 186 03-S

ARM, ROCKER

$6.49

$

In Stock, only 1 left!

0

20

Kohler 32 411 04-S

ROD, PUSH

$4.99

$

In Stock, only 3 left!

0

24

Kohler 32 072 05-S

STUD

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 32 096 16-S

COVER, BREATHER REED

$2.99

$

Usually ships in 2-5 days

0

26

Kohler 32 468 01-S

WASHER, SEALING

$2.99

$

In Stock, only 1 left!

0

27

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

28

Kohler 25 326 62-S

HOSE, BREATHER

$12.99

$

In Stock, only 1 left!

0

29

Kohler 25 154 22-S

CLIP, O2 SENSOR

$2.99

$

Usually ships in 2-5 days

0

30

Kohler 24 126 194-S

BRACKET, OXYGEN SENSOR

$1.49

$

In Stock, only 1 left!

0

31

Kohler 25 086 280-S

SCREW, PAN HEAD

$

$

Not available

32

Kohler 24 153 30-S

O-RING (YELLOW), VALVE CO
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

33

Kohler 32 096 06-S

KIT,BREATHER VALVE COVER (PLASTIC)

$29.99

$

In Stock, only 1 left!

0

34

Kohler 32 326 02-S

HOSE, FP-USE 32 326 07-S(PLASTIC COVERS)
(Superseded to 32 326 07-S)

$4.49

$

In Stock, Qty 6

0

35

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN (PLASTIC)

$35.99

$

In Stock, Qty 5

0
