EKT740-3013 - Kohler 7500 Series PRO EFI Engine, Made for Excel, 25hp 06 Blower Housing Parts Diagram

7500 Series PRO EFI Engine, Made for Excel, 25hp

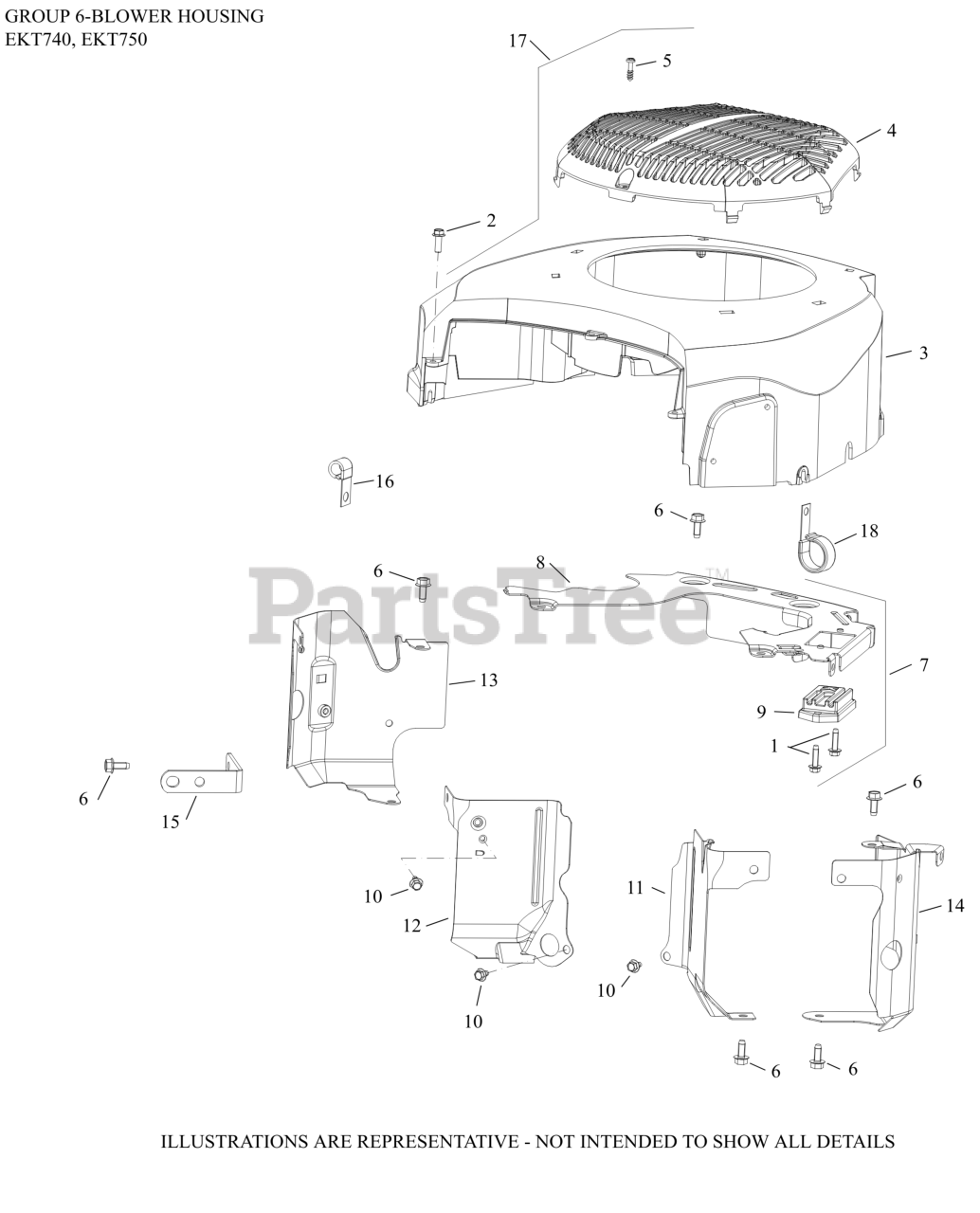

06 Blower Housing Parts Diagram

  • Title

1

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

4

Kohler 32 314 06-S

GUARD, FIXED

$10.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 449-S

SCREW, M5-2.42 (PT) THREAD

$5.49

$

In Stock, only 3 left!

0

6

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

7

Kohler 32 146 20-S

PLATE ASSEMBLY, BACKING (15A)

$111.99

$

Usually ships in 2-5 days

0

8

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

9

Kohler 25 403 30-S

REG/RECT (15 AMP, HW, OVP)-(#2540338S)
(Superseded to 25 403 38-S)

$99.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

11

Kohler 32 063 22-S

BAFFLE, VALLEY #2
(Superseded to 32 063 35-S)

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 32 063 23-S

BAFFLE, VALLEY #1

$8.49

$

Usually ships in 2-5 days

0

13

Kohler 32 063 27-S

BAFFLE, EFI RIGHT BARREL

$10.99

$

Usually ships in 2-5 days

0

14

Kohler 32 063 28-S

BAFFLE, EFI LEFT BARREL

$12.99

$

Usually ships in 2-5 days

0

15

Kohler 32 445 01-S

STRAP, LIFTING

$3.49

$

Usually ships in 2-5 days

0

17

Kohler 32 027 39-S

KIT, BLOWER HOUSING
(Superseded to 32 027 45-S)

$48.99

$

Usually ships in 2-5 days

0

46

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0
