EKT740-3013 - Kohler 7500 Series PRO EFI Engine, Made for Excel, 25hp 02 CrankCase Parts Diagram

7500 Series PRO EFI Engine, Made for Excel, 25hp

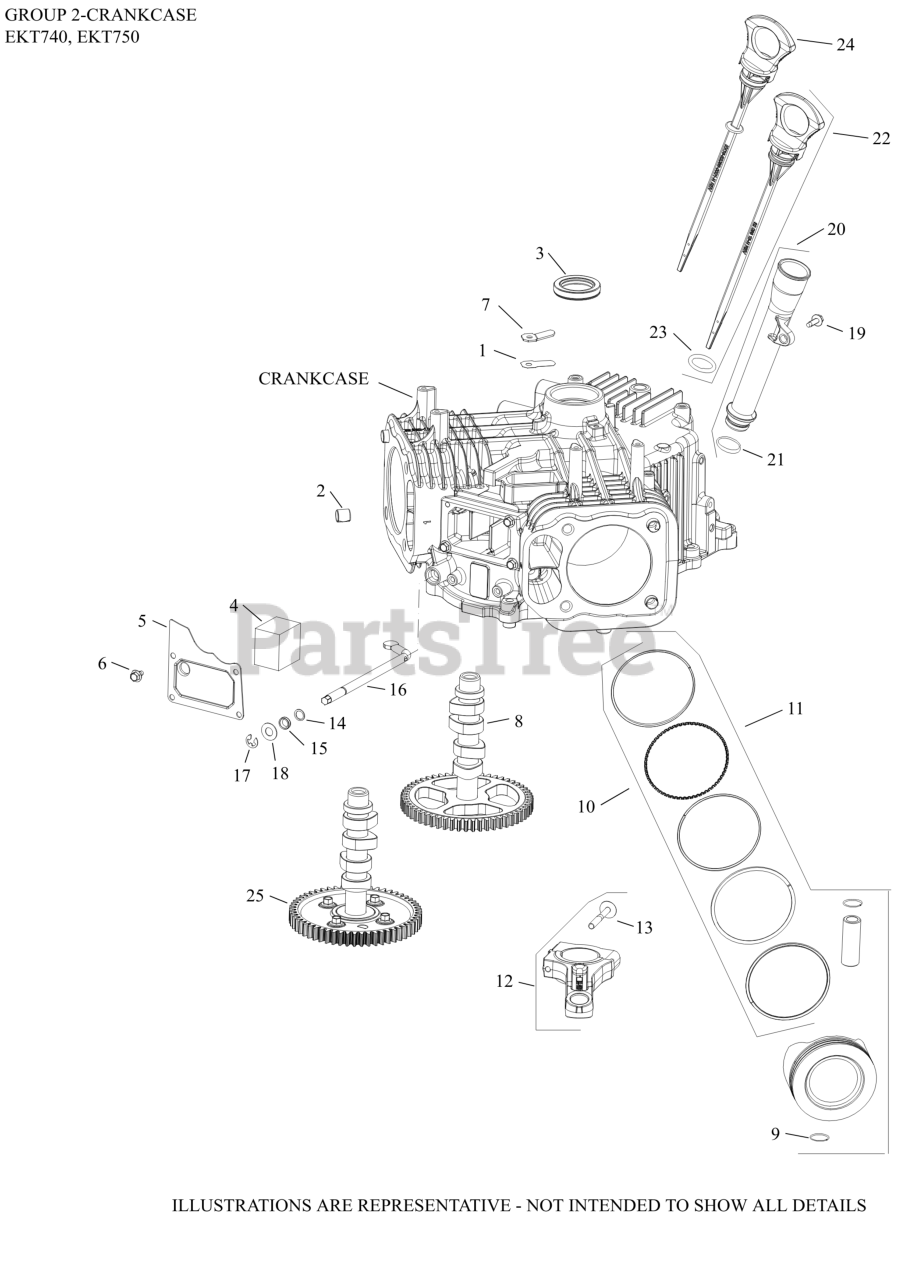

02 CrankCase Parts Diagram

  • Title

1

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, Qty 8

0

2

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 32 050 06-S

FILTER, BREATHER

$2.99

$

In Stock, only 1 left!

0

5

Kohler 16 096 02-S

COVER, BREATHER MEDIA

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

8

Kohler 32 010 07-S

CAMSHAFT ASSY

$83.99

$

In Stock, only 1 left!

0

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

10

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

Usually ships in 2-5 days

0

10

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$26.99

$

In Stock, only 1 left!

0

10

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

10

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$103.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$174.99

$

In Stock, Qty 6

0

11

Kohler 25 874 18-S

KIT,PSTN/RNG STYLE B(.08)

$206.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 19-S

KIT,PSTN/RNG STYLE B(.25)

$253.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 20-S

KIT,PSTN/RNG STYLE B(.50)

$250.99

$

Usually ships in 2-5 days

0

12

Kohler 24 067 28-S

ROD, ASSY CON (STD)-USE 24 067 30-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 3 left!

0

12

Kohler 24 067 29-S

ROD, ASSY CON(.25mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

13

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0

14

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

15

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

16

Kohler 32 755 22-S

KIT, CROSS SHAFT

$4.49

$

Usually ships in 2-5 days

0

17

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

$2.49

$

Usually ships in 2-5 days

0

18

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

19

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

20

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, only 1 left!

0

21

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

22

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, Qty 6

0

23

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, only 3 left!

0
