EKT740-3001 - Kohler 7500 Series PRO EFI Engine, Basic Version, 25hp 08 Fuel System Parts Diagram

7500 Series PRO EFI Engine, Basic Version, 25hp

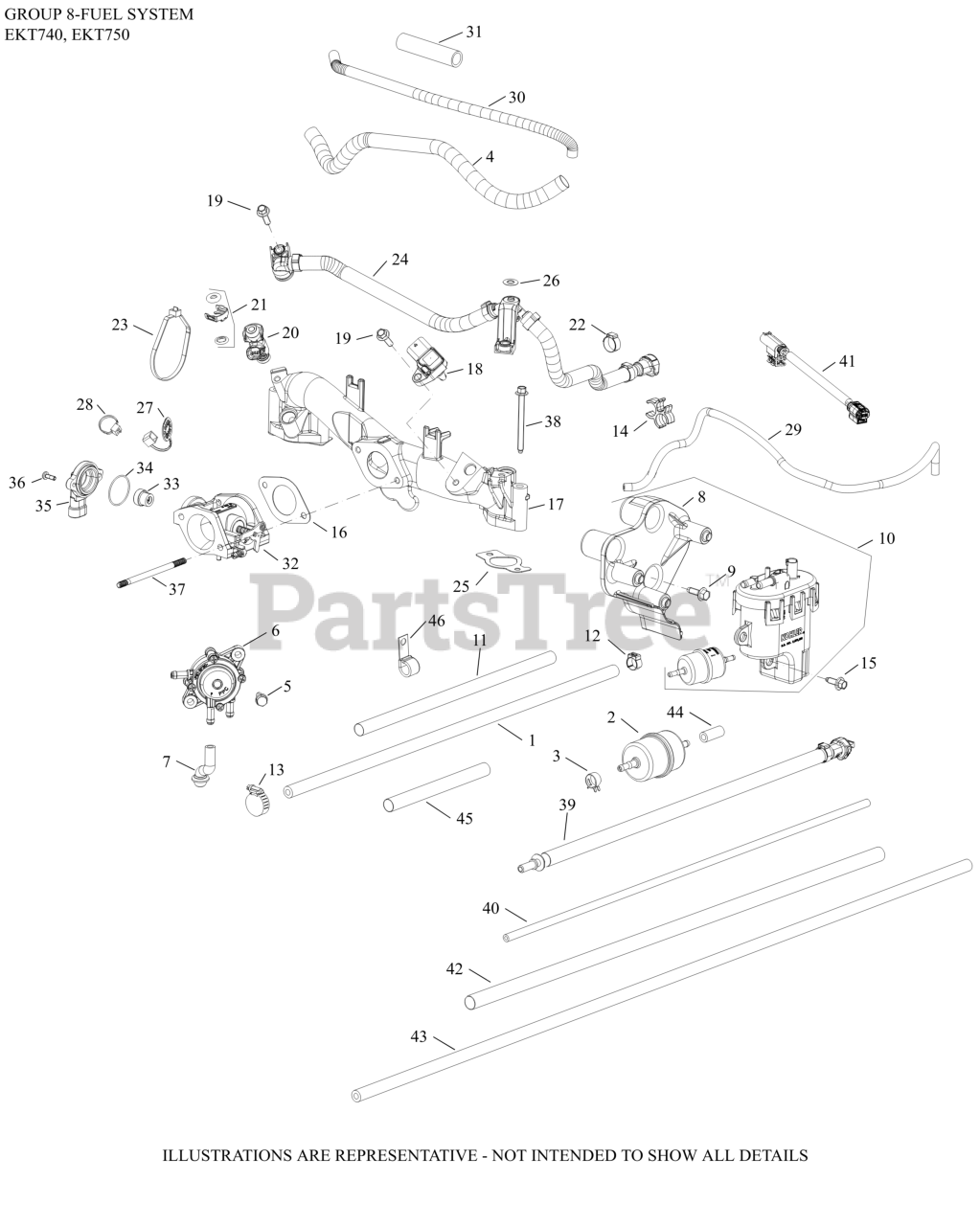

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

3

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

4

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0

5

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

6

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$

$

Not available

7

Kohler 32 326 08-S

HOSE, PULSE PUMP(STEEL COVERS)

$3.99

$

In Stock, only 4 left!

0

8

Kohler 16 063 07-S

BAFFLE, FUEL MODULE

$26.99

$

Usually ships in 2-5 days

0

9

Kohler 25 086 413-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 3 left!

0

10

Kohler 25 393 19-S

FUEL PUMP

Note: After S/N 4916300001

$359.99

$

In Stock, Qty 5

0

10

Kohler 25 755 74-S

KIT, FPM W/BRCKT(EKT740-750, EZT715-750)

Note: Before S/N 4916300011

$379.99

$

Usually ships in 2-5 days

0

11

Kohler 25 431 41-S

SLEEVE, INSULATING

$7.49

$

Usually ships in 2-5 days

0

12

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

14

Kohler 25 018 08-S

RETAINER, HOSE

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 25 086 658-S

SCREW, HEX FLANGE (M6 W/DOG POINT)

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 16 041 02-S

GASKET, THROTTLE BODY

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 16 164 04-S

MANIFOLD MACHINED (EFI)

$91.99

$

Usually ships in 2-5 days

0

18

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

19

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

20

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

21

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

22

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

23

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 24 399 36-S

FUEL HOSE ASSY(ECV,FCV,EZT,EKT,PCH,PCV)

$137.99

$

Usually ships in 2-5 days

0

25

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$2.99

$

In Stock, Qty 7

0

26

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 24 173 08-S

CAP, CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

28

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

30

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

31

Kohler 25 431 49-S

SLEEVE, CORRUGATED

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 16 583 03-S

BODY ASSEMBLY, THROTTLE W/TPS & TS

$156.99

$

In Stock, only 1 left!

0

33

Kohler 25 152 09-S

MAGNET, TPS SENSOR

$2.99

$

Usually ships in 2-5 days

0

34

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

35

Kohler 16 418 01-S

SENSOR, THROTTLE POSITION

$39.99

$

Usually ships in 2-5 days

0

36

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

37

Kohler 25 072 33-S

STUD

$

$

Not available

38

Kohler 25 086 691-S

SCREW, HEX FLANGE (M6 W/DOG POINT)

$2.49

$

Usually ships in 2-5 days

0
