EICFR5505BV (84681) - Snapper 16.5" Rear-Tine Tiller, 5.5hp MAIN CASE/GEARS (Series 4&5) Parts Diagram

16.5" Rear-Tine Tiller, 5.5hp

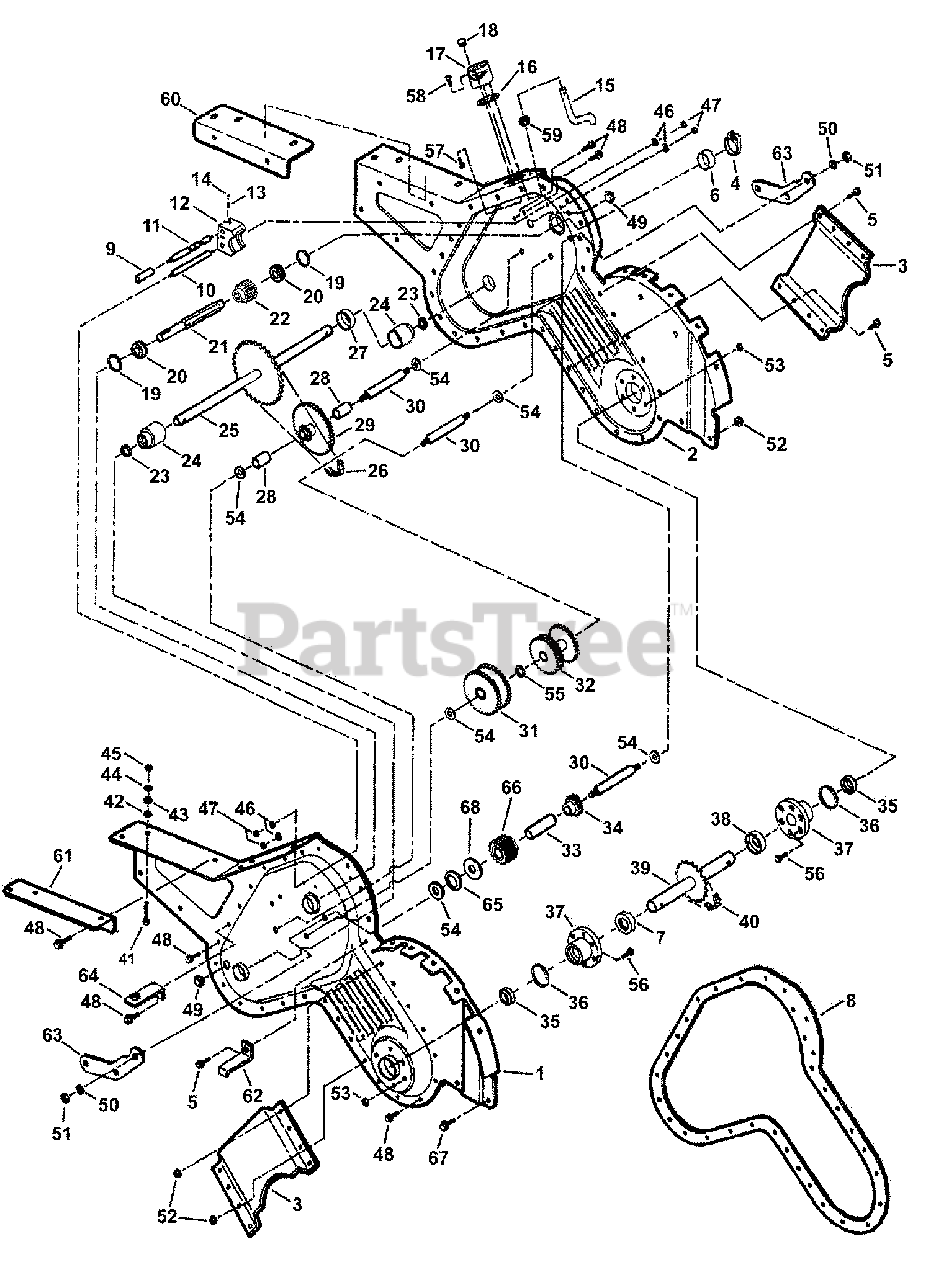

MAIN CASE/GEARS (Series 4&5) Parts Diagram

  • Title

Snapper 7057824

ASSEMBLY, Tiller Case
(Superseded to 7063124YP)

$1233.99

$

Usually ships in 2-12 days

0

1

Snapper 7034681

CASE HALF, Left Hand

$

$

Not available

2

Snapper 7034682

CASE HALF, Right Hand
(Superseded to 7034682YP)

$307.99

$

Usually ships in 2-12 days

0

3

Snapper 7034677

REINFORCEMENT, Case
(Superseded to 7034677YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7015597

CLAMP, Speedy

$

$

Not available

5

Snapper 7091681

BOLT, 5/16-18 x 1" Hex Flange Lock
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7015598

SEAL, Cap

$

$

Not available

7

Snapper 7028672

SPACER, Tine Shaft (Short)

$

$

Not available

8

Snapper 7028753

GASKET, Main Case IR5003B Tiller
(Superseded to 7028753YP)

$

$

Not available

9

Snapper 7046787

SPACER, Main Shaft (.47" long)

$7.99

$

In Stock, only 1 left!

0

10

Snapper 7021977

PIN, Guide

$

$

Not available

11

Snapper 7046786

SHAFT, Main Detent (5 Position) ICFR
(Superseded to 7046786YP)

$25.99

$

Usually ships in 2-12 days

0

12

Snapper 7046604

FORK, Primary Shaft
(Superseded to 7046604YP)

$165.99

$

Usually ships in 2-12 days

0

13

Snapper 7023252

SPRING, Compression
(Superseded to 7023252YP)

Note: Was 14500

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 7014469

BALL, Detent
(Superseded to 7014469YP)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 7015405

CRANK, Shift
(Superseded to 7015405YP)

$

$

Not available

16

Snapper 7015679

GASKET, Shift Arm Pivot
(Superseded to 7015679YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7015313

PIVOT, Shift Arm
(Superseded to 7015313YP)

$45.99

$

Usually ships in 2-12 days

0

18

Snapper 7015409

PLUG, 1/2" Button
(Superseded to 7015409YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7015350

O-RING

$

$

Not available

20

Snapper 7010756

BEARING, .625 x 1.37 x .435
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

21

Snapper 7023849

SHAFT, Input

$

$

Not available

22

Snapper 7046785

PINION, Input ICFR
(Superseded to 7046785YP)

$106.99

$

Usually ships in 2-12 days

0

23

Snapper 7015136

SEAL, Oil

$

$

Not available

24

Snapper 7015319

BEARING, Axle
(Superseded to 7015319YP)

$

$

Not available

25

Snapper 7040609

WELDMENT, Axle (#40/34T)
(Superseded to 7040609YP)

$119.99

$

Usually ships in 2-12 days

0

26

Snapper 7015347

CHAIN, Traction #40
(Superseded to 7015347YP)

$34.99

$

Usually ships in 2-12 days

0

27

Snapper 7015318

SPACER, Wheel Shaft (.686" Thick)

$

$

Not available

28

Snapper 7015348

SPACER, 5/8 x 1.11"

$

$

Not available

29

Snapper 7018790

GEAR & SPROCKET
(Superseded to 7018790YP)

$90.99

$

In Stock, only 1 left!

0

30

Snapper 7045127

SHAFT, Gear
(Superseded to 7045127YP)

$25.99

$

In Stock, only 1 left!

0

31

Snapper 7057823

* ASSY, F&R Tine Drive Gear #50, Spkt 10T Gear 34T
(Superseded to 7057823YP)

$179.99

$

Usually ships in 2-12 days

0

32

Snapper 7054412

* ASSEMBLY, Wheel Drive Gear

$

$

Currently unavailable

33

Snapper 7046791

SPACER, Reverse Idler (1.245" long)

$

$

Not available

34

Snapper 7051653

* ASSEMBLY, Reverse Idler
(Superseded to 7051653YP)

$33.99

$

Usually ships in 2-12 days

0

35

Snapper 7015342

SEAL, Oil
(Superseded to 7015342YP)

$12.99

$

In Stock, only 2 left!

0

36

Snapper 7015343

O-RING
(Superseded to 7015343YP)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 7018869

BEARING, Tine Shaft

$

$

Not available

38

Snapper 7029890

SPACER, Tine Shaft Long

$

$

Not available

39

Snapper 7041726

WELDMENT, Tine Shaft (#50/18T)

$

$

Not available

40

Snapper 7028476

CHAIN, Tine (Endless Roller) #50
(Superseded to 7028476YP)

$70.99

$

Usually ships in 2-12 days

0

41

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap GR5
(Superseded to 7091513YP)

Note: Was 91689

$4.49

$

In Stock, Qty 13

0

42

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

43

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

44

Snapper 7091690

WASHER, 5/16" Split Lock
(Superseded to 7091690YP)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 91692

$3.99

$

In Stock, Qty 20+

0

46

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

47

Snapper 7090095

NUT, 1/4-20 Hex
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

48

Snapper 7091946

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

49

Snapper 7011024

PLUG
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

50

Snapper 7090873

WASHER, 7/16" Internal Tooth Lock

$2.49

$

Usually ships in 2-12 days

0

51

Snapper 7090460

NUT, 7/16-20 Hex
(Superseded to 7090460SM)

$2.49

$

Usually ships in 2-12 days

0

52

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

53

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

54

Snapper 7090953

SHIM-WASHER

$8.49

$

Usually ships in 2-12 days

0

55

Snapper 7020938

SHIM WASHER, 5/8"

$

$

Not available

56

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap GR5
(Superseded to 001X38MA)

Note: Was 79405

$4.49

$

In Stock, Qty 18

0

57

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 5

0

58

Snapper 7091819

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

59

Snapper 7023514

O-RING, #012

$

$

Not available

60

Snapper 7038647

REINFORCEMENT, R.H. Frame
(Superseded to 7038647YP)

$22.99

$

Usually ships in 2-12 days

0

61

Snapper 7038648

REINFORCEMENT, L.H. Frame
(Superseded to 7038648YP)

$19.99

$

Usually ships in 2-12 days

0

62

Snapper 7034680

BRACE, Belt Cover

$

$

Not available

63

Snapper 7061174

SIDE PLATE

Note: Was 33415

$

$

Currently unavailable

64

Snapper 7033962

BRACKET, Belt Cover- IRT
(Superseded to 7033962YP)

$11.99

$

Usually ships in 2-12 days

0

65

Snapper 7033531

WASHER, Shim

$

$

Not available

66

Snapper 7058469

* ASSY, Gear 16T (Incl. two 15339 DX Bearings)

$

$

Not available

67

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

Note: Was 91510

$3.99

$

In Stock, Qty 5

0

68

Snapper 7072801

WASHER, Shim .63 x 1.24 x .05

$

$

Not available
