EICFR5505BV (84681) - Snapper 16.5" Rear-Tine Tiller, 5.5hp HANDLES, CONTROLS, WEIGHTS Parts Diagram

16.5" Rear-Tine Tiller, 5.5hp

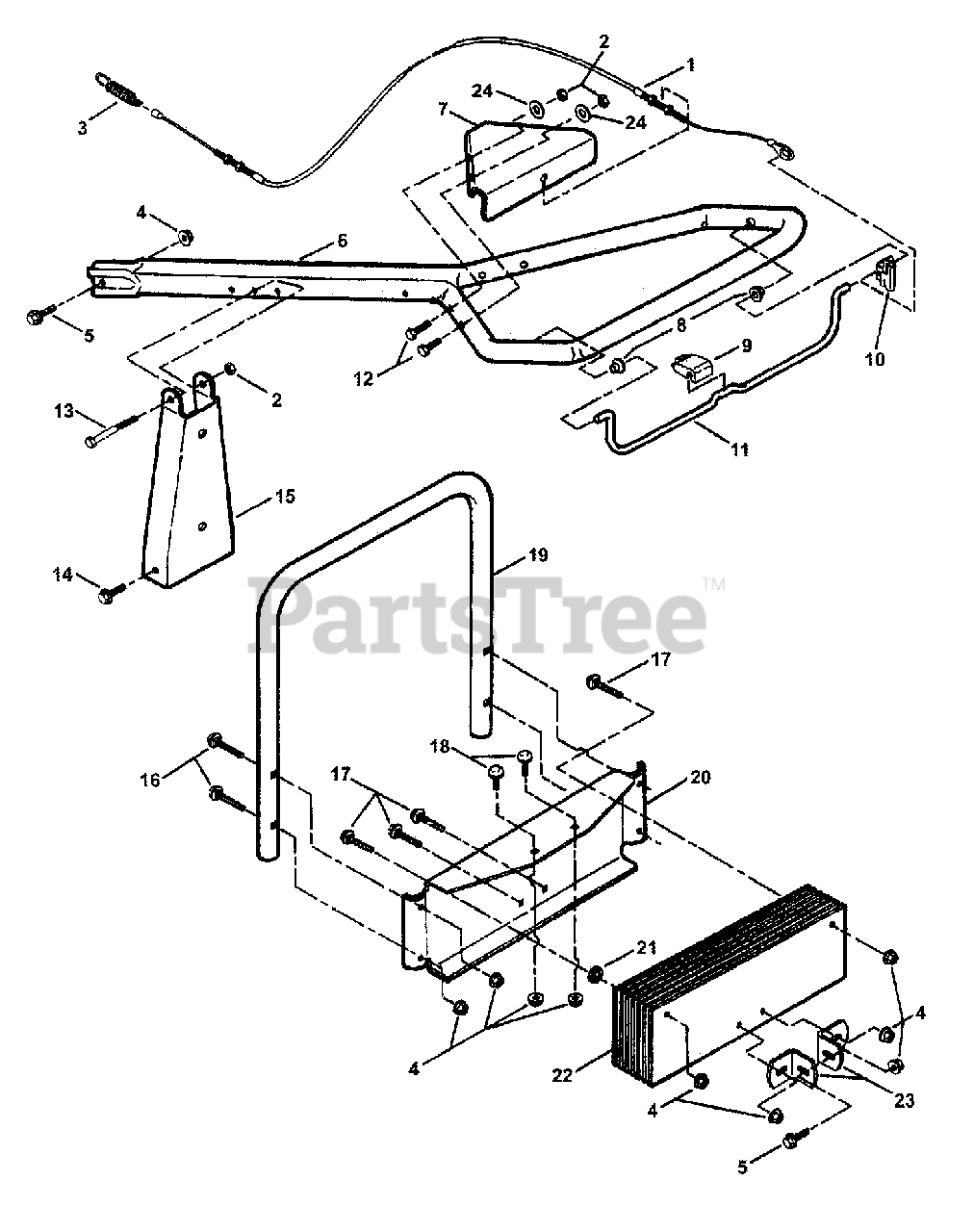

HANDLES, CONTROLS, WEIGHTS Parts Diagram

  • Title

1

Snapper 7018808

CABLE Clutch
(Superseded to 7018808YP)

$23.99

$

In Stock, only 1 left!

0

2

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

3

Snapper 7015252

SPRING, Tine
(Superseded to 7015252YP)

$10.99

$

In Stock, Qty 8

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7091681

BOLT, 5/16-18 x 1" Hex Flange Lock
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7034746

BAR, Handle IRT
(Superseded to 7034746YP)

$94.99

$

Usually ships in 2-12 days

0

7

Snapper 7036170

PANEL, Tiller Dash
(Superseded to 7036170YP)

$18.99

$

In Stock, only 1 left!

0

8

Snapper 7014681

BUSHING
(Superseded to 7014681YP)

$4.49

$

In Stock, Qty 12

0

9

Snapper 7014682

COVER, Cable
(Superseded to 7014682YP)

$10.99

$

In Stock, only 3 left!

0

10

Snapper 7032593

CATCH, Bail

$

$

Not available

11

Snapper 7018787

BAIL

$

$

Not available

12

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap GR5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

13

Snapper 7090831

SCREW, 5/16-18 x 2-3/4" Hex Head Cap GR5
(Superseded to 7090831YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

15

Snapper 7038221

SUPPORT, Handle
(Superseded to 7038221YP)

$30.99

$

Usually ships in 2-12 days

0

16

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Sq. Neck Carriage GR5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

17

Snapper 7090861

BOLT, 5/16-18 x 1-3/4" Sq. Neck Carriage GR5

$

$

Not available

18

Snapper 7091303

BOLT, 5/16-18 x 3/4" Square Neck Carriage GR5
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 7

0

19

Snapper 7036171

BAR, Stand-Up

$

$

Currently unavailable

20

Snapper 7035107

BOX, Weight
(Superseded to 7035107YP)

$56.99

$

Usually ships in 2-12 days

0

21

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

Note: not used on ICFR5004B

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7038223

WEIGHT, Steel
(Superseded to 7038223YP)

$30.99

$

Usually ships in 2-12 days

0

23

Snapper 7032496

BRACKET, Weight

$

$

Not available

24

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

Snapper 7061794

BAG, Hardware - IR5003B

Note: Contains 2 each of P/N's 28725 and 91606 (see Tiller Head Component Page)

$

$

Currently unavailable
