EICFR5004B (84641) - Snapper 16.5" Rear-Tine Tiller, 5hp TILLER HEAD COMPONENTS Parts Diagram

16.5" Rear-Tine Tiller, 5hp

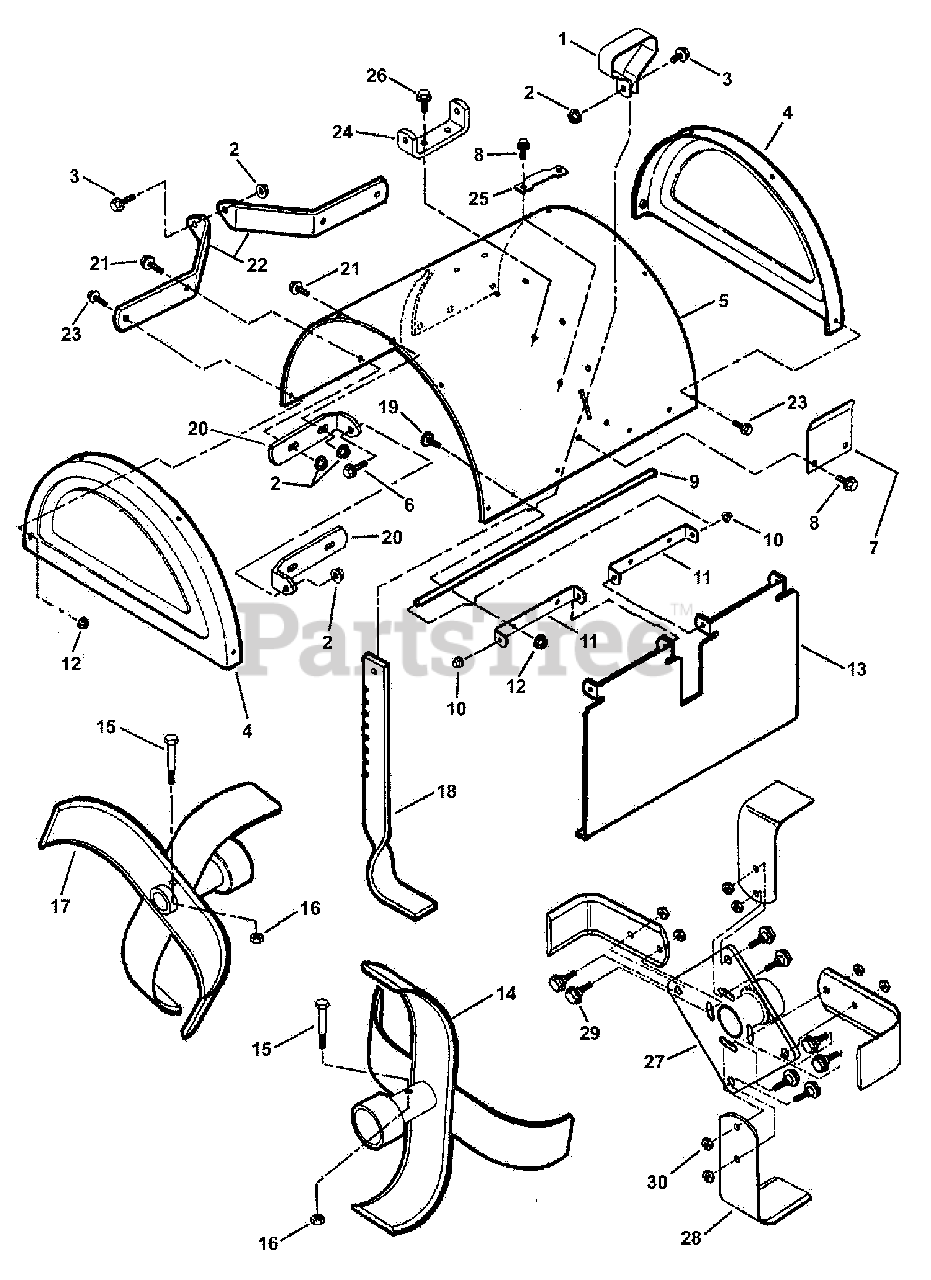

TILLER HEAD COMPONENTS Parts Diagram

  • Title

1

Snapper 7032553

HANDLE, Depth Bar
(Superseded to 7032553YP)

$17.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7091681

BOLT, 5/16-18 x 1" Hex Flange Lock
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7034745

COVER, Side Tine IR5003B

$

$

Not available

5

Snapper 7034684

COVER, Tine IR5003B
(Superseded to 7034684YP)

$88.99

$

Usually ships in 2-12 days

0

6

Snapper 7091602

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock GR5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

7

Snapper 7034756

SPRING, Depth Bar IR5003B
(Superseded to 7034756YP)

$26.99

$

In Stock, only 1 left!

0

8

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

9

Snapper 7032494

PIN, Drag Shield (1/4" Dia. x 14-1/2" Steel Rod)
(Superseded to 7032494YP)

$10.99

$

In Stock, only 1 left!

0

10

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7032536

HINGE, Half

$

$

Currently unavailable

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

13

Snapper 7036168

SHIELD, Drag
(Superseded to 7036168YP)

$51.99

$

In Stock, only 1 left!

0

14

Snapper 7075157

WELDMENT, Right Tine
(Superseded to 7075157YP)

Note: Was 49735

$302.99

$

Usually ships in 2-12 days

0

15

Snapper 7028725

SCREW, 5/16-24 x 2" Hex Head Cap GR5
(Superseded to 704056)

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7075158

WELDMENT, Left Tine
(Superseded to 7075158YP)

Note: Was 49734

$649.99

$

Usually ships in 2-12 days

0

18

Snapper 7038235

DEPTH-BAR
(Superseded to 7038235YP)

$34.99

$

Usually ships in 2-12 days

0

19

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage GR5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7034683

REINFORCEMENT, Rear Tine Cover

$

$

Currently unavailable

21

Snapper 7090595

BOLT, 5/16-18 x 5/8" Hex Flange Lock GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

22

Snapper 7038272

REINFORCEMENT, Front Tine Cover

$

$

Currently unavailable

23

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

Note: Was 91686

$3.99

$

In Stock, Qty 10

0

24

Snapper 7034755

BRACKET, Support IR5003B
(Superseded to 7034755YP)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7034757

PLATE, Latch

$

$

Not available

26

Snapper 7091841

SCREW, 5/16-18 x 1" Hex Washer Self-Tap
(Superseded to 7091841SM)

Note: Was 91742

$3.49

$

Usually ships in 2-12 days

0

Snapper 7057831

ASSEMBLY, Tine (Incl. items 27 thru 30)

Note: ICFR5004B, EICFR5004B, ICFR5505BV, CICFR5505HV, EICFR5505BV and ICFR7005BV only

$

$

Currently unavailable

27

Snapper 7046798

WELDMENT, Tine Hub ICFR

$

$

Not available

28

Snapper 7075142

TINE, 11.5" (.312" Thick)
(Superseded to 7075142YP)

Note: Was 38215

$122.99

$

In Stock, Qty 17

0

29

Snapper 7014981

BOLT, 3/8-24 Shoulder
(Superseded to 7014981SM)

$14.99

$

In Stock, Qty 8

0

30

Snapper 7090524

NUT, 3/8-24 Hex Top Lock GR C
(Superseded to 7090524YP)

$

$

Not available

Snapper 7090289

NUT, 3/8-24 Hex Center Lock GR5 or B
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0
