EI 85245 (7800018) - Snapper 24" Snow Thrower, 8.5hp DISCHARGE CHUTE Parts Diagram

24" Snow Thrower, 8.5hp

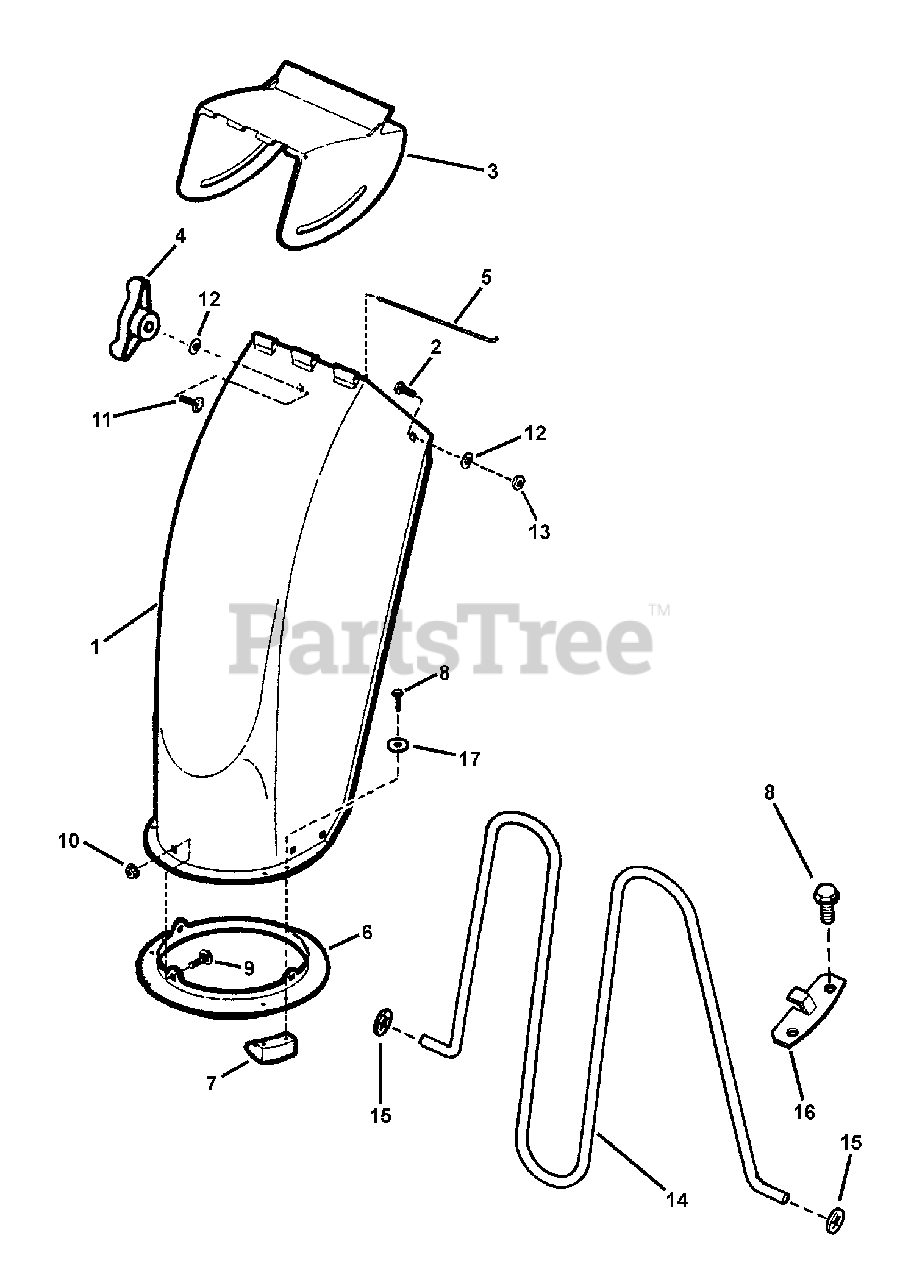

DISCHARGE CHUTE Parts Diagram

  • Title

1

Snapper 7028217

*CHUTE, Discharge
(Superseded to 7053411YP)

Note: (A Chute/Deflector Assy (7075321) includes items 1, 3 & 5.)

$

$

Not available

2

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, GR 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

3

Snapper 7028846

DEFLECTOR, Chute
(Superseded to 7029847YP)

$73.99

$

Usually ships in 2-12 days

0

4

Snapper 7035744

WING KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7028253

WIRE PIN
(Superseded to 7028253YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7039765

CHUTE RING
(Superseded to 7039765SM)

$65.99

$

In Stock, only 1 left!

0

7

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

8

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7091077

BOLT, 5/16-18 x 5/8" Square Neck Carriage, GR 5
(Superseded to 7091077YP)

$

$

Not available

10

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7091097

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

12

Snapper 7091076

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7091074

NUT, 5/16-24 Hex Center Lock, GR B
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7019692

WIRE, Safety
(Superseded to 7019692SM)

Note: (used on Euro models)

$31.99

$

Usually ships in 2-12 days

0

15

Snapper 7023673

PUSH-ON FASTENER, 5/32" Dia.
(Superseded to 7023673YP)

Note: (used on Euro models (Arden #BV5928))

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7032559

RETAINER, Safety Wire
(Superseded to 7032559YP)

Note: (used on Euro models)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

Note: (used on Euro models)

$3.99

$

In Stock, Qty 14

0
