EI 7244 (84910) - Snapper 24" Snow Thrower, 7hp Handles, Controls (Single Handle Type) Parts Diagram

24" Snow Thrower, 7hp

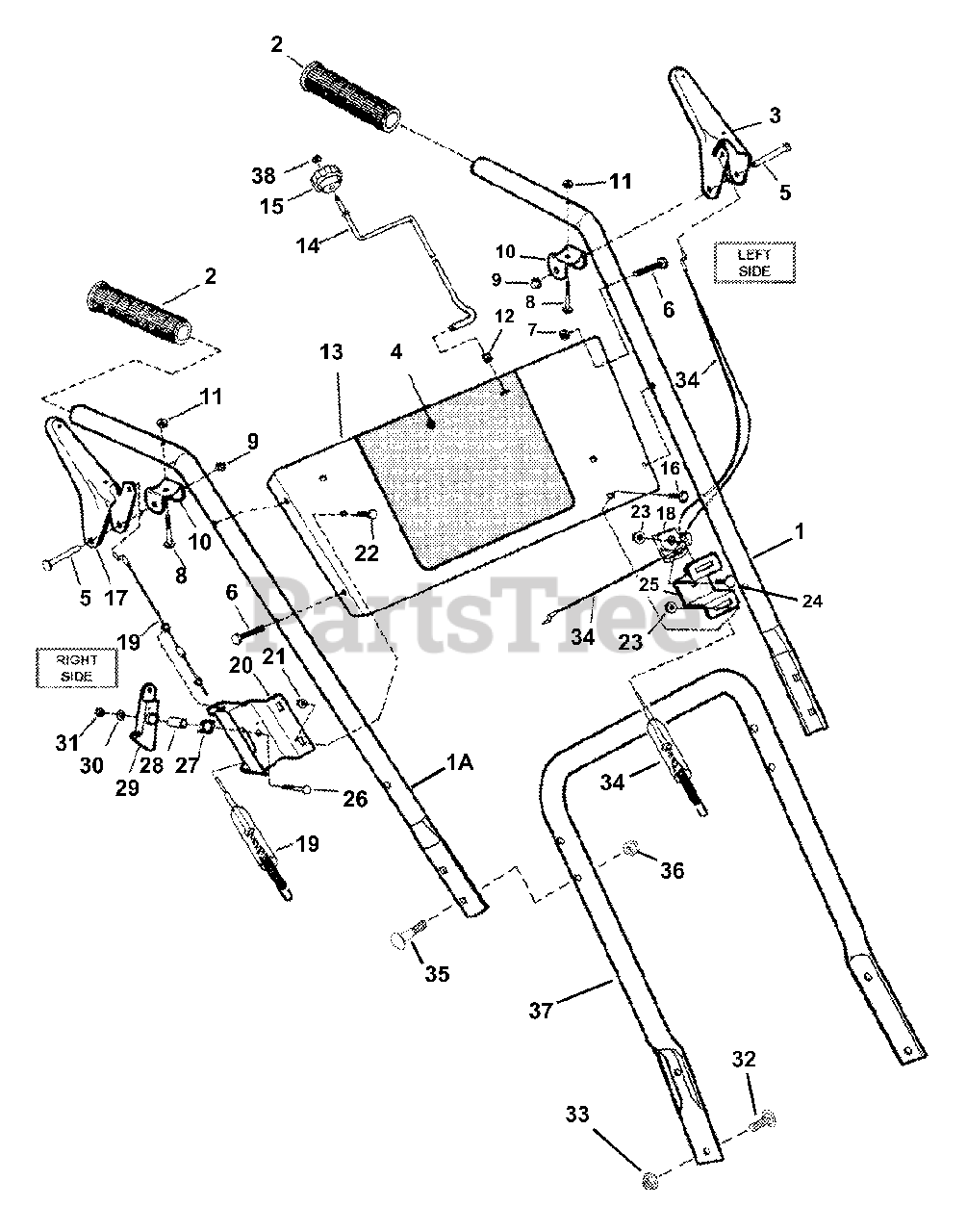

Handles, Controls (Single Handle Type) Parts Diagram

  • Title

1

Snapper 7074293

BAR, Handle (Left Hand)

$

$

Not available

1A

Snapper 7074292

BAR, Handle (Right Hand)

$

$

Not available

2

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

3

Snapper 7032907

HANDLE (Left Hand)
(Superseded to 7032907YP)

$29.99

$

Usually ships in 2-12 days

0

4

Snapper 7074836

DECAL, Control Model 7/24

$

$

Not available

Snapper 7074845

DECAL, Control Model E7/24

$

$

Not available

5

Snapper 7016297

PIN, 1/4 x 1-7/8" Clevis

$

$

Not available

6

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

7

Snapper 7091706

NUT, 5/16-18 Hex Top Lock
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

12

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

13

Snapper 7036237

PANEL, Control
(Superseded to 7036237YP)

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7028180

CRANK, Chute
(Superseded to 7028180YP)

$34.99

$

Usually ships in 2-12 days

0

15

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

16

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7032908

HANDLE (Right Side)

$

$

Not available

18

Snapper 7015960

GUIDE, Cable
(Superseded to 7015960YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 7028267

CABLE, Auger Right Side
(Superseded to 7028267YP)

$18.99

$

Usually ships in 2-12 days

0

20

Snapper 7038352

CAM BRACKET
(Superseded to 7038352YP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7091085

BOLT, #10-24 x 1/2" Flat Head Carriage
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 10

0

24

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 4 left!

0

25

Snapper 7032651

BRACKET, Cable Guide Support

$

$

Not available

26

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

27

Snapper 7015966

SPRING, Cam Lock

$

$

Not available

28

Snapper 7015969

SPACER
(Superseded to 7015969YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7018980

CAM LOCK
(Superseded to 7018980YP)

$92.99

$

Usually ships in 2-12 days

0

30

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

32

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7028268

CABLE, Clutch (Left Hand)
(Superseded to 7028268YP)

$18.99

$

Usually ships in 2-12 days

0

35

Snapper 7090760

BOLT, 5/16-18 x 2" Square Neck Carriage, Grade 5

$

$

Not available

36

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7074296

BAR, Handle (Lower)

$

$

Not available

38

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 20+
