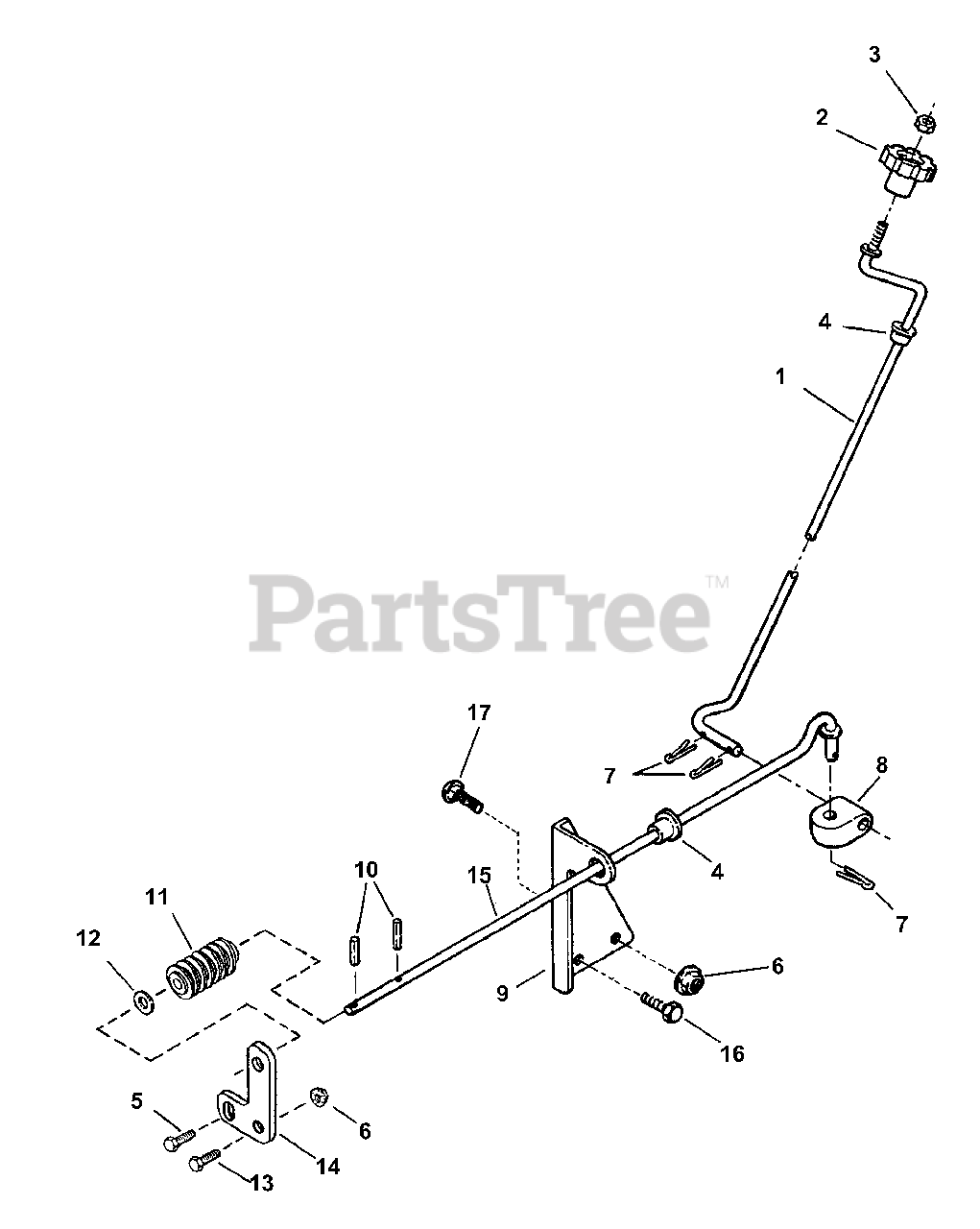

EI 7244 (84910) - Snapper 24" Snow Thrower, 7hp Chute Crank Control Parts Diagram

24" Snow Thrower, 7hp

Chute Crank Control Parts Diagram

  • Title

1

Snapper 7028180

CRANK, Chute
(Superseded to 7028180YP)

$34.99

$

Usually ships in 2-12 days

0

2

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

3

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

4

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

5

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 91082

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7028222

BLOCK

$

$

Not available

9

Snapper 7034301

BRACKET, Shaft
(Superseded to 7034301YP)

$17.99

$

In Stock, only 1 left!

0

10

Snapper 7014001

PIN, 1/8 x 3/4" Roll
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7021828

WORM
(Superseded to 7028348SM)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7011724

WASHER, Spring
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

13

Snapper 7091138

SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7028177

BRACKET, Worm Shaft
(Superseded to 7028177YP)

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 7045204

SHAFT, Worm (long)
(Superseded to 7045204YP)

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 7090858

SCREW, 5/16-18 1/2" Hex Washer Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0
