EI 55224 (84678) - Snapper 22" Snow Thrower, 5.5hp Handles, Controls (Conventional Type) Parts Diagram

22" Snow Thrower, 5.5hp

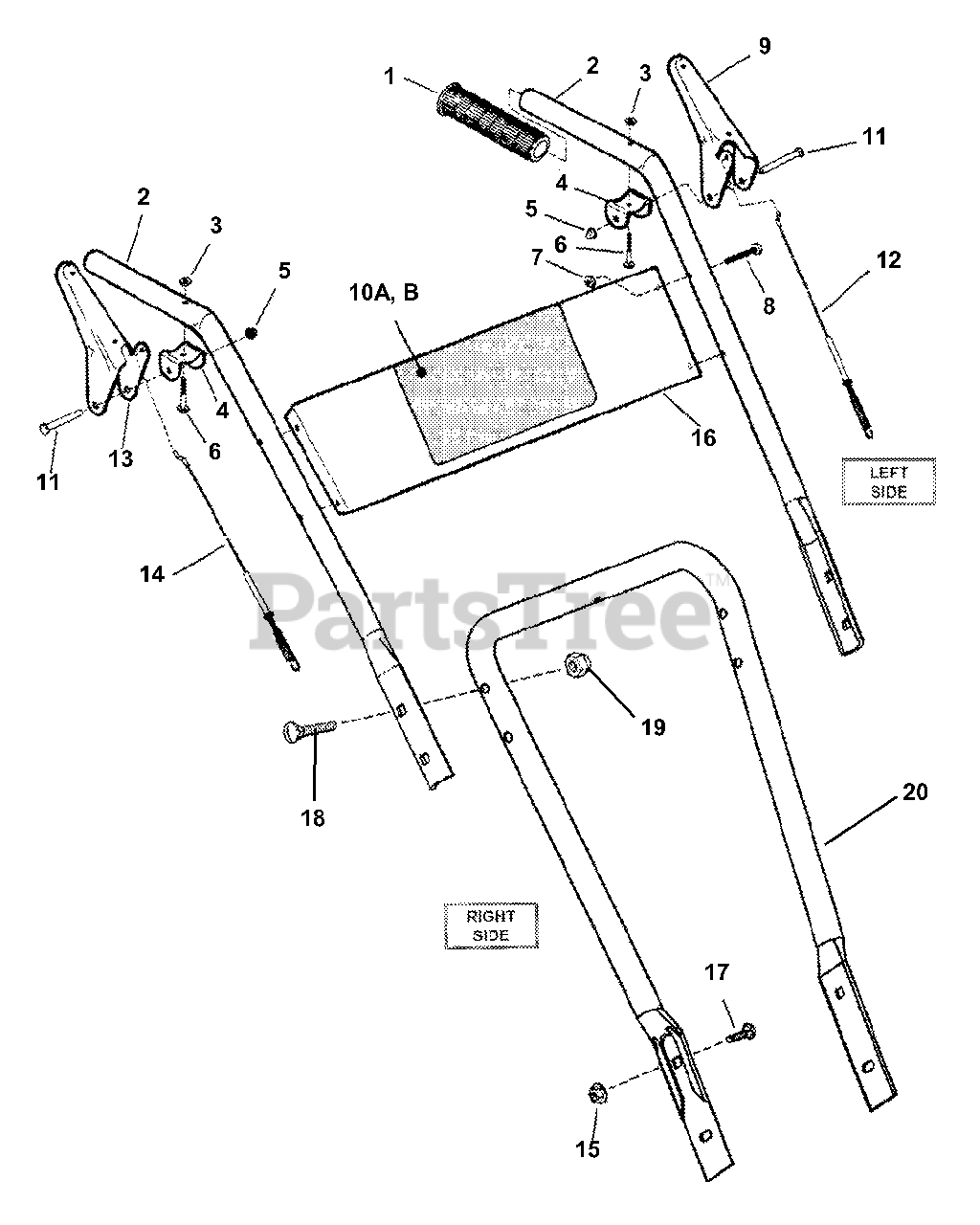

Handles, Controls (Conventional Type) Parts Diagram

  • Title

1

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

2

Snapper 7074292

BAR, Handle (Right Hand)

$

$

Not available

Snapper 7074293

BAR, Handle (Left Hand)

$

$

Not available

3

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

4

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091706

NUT, 5/16-18 Hex Top Lock, Grade B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

$29.99

$

Usually ships in 2-12 days

0

10A

Snapper 7045207

DECAL, Snapper (I55224 Model)

$

$

Not available

10B

Snapper 7045217

DECAL, Snapper (EI55224 Model)

$

$

Currently unavailable

11

Snapper 7016297

PIN, 1/4x 1-7/8" Clevis

$

$

Not available

12

Snapper 7028223

CABLE, Clutch Left Side (Short)
(Superseded to 7028223YP)

$21.99

$

In Stock, only 1 left!

0

13

Snapper 7032908

HANDLE, Right Side

$

$

Not available

14

Snapper 7028194

CABLE, Auger Right Side (Long)

$

$

Not available

15

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7045209

PANEL, Control
(Superseded to 7045209YP)

$47.99

$

Usually ships in 2-12 days

0

17

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090760

BOLT, 5/16-18 x 2" Square Neck Carriage, Grade 5

$

$

Not available

19

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7074296

BAR, Handle (Lower)

$

$

Not available
