EI 5225 (7080494) - Snapper 22" Snow Thrower, 5hp UPPER HANDLES, DASH, CONTROLS Parts Diagram

22" Snow Thrower, 5hp

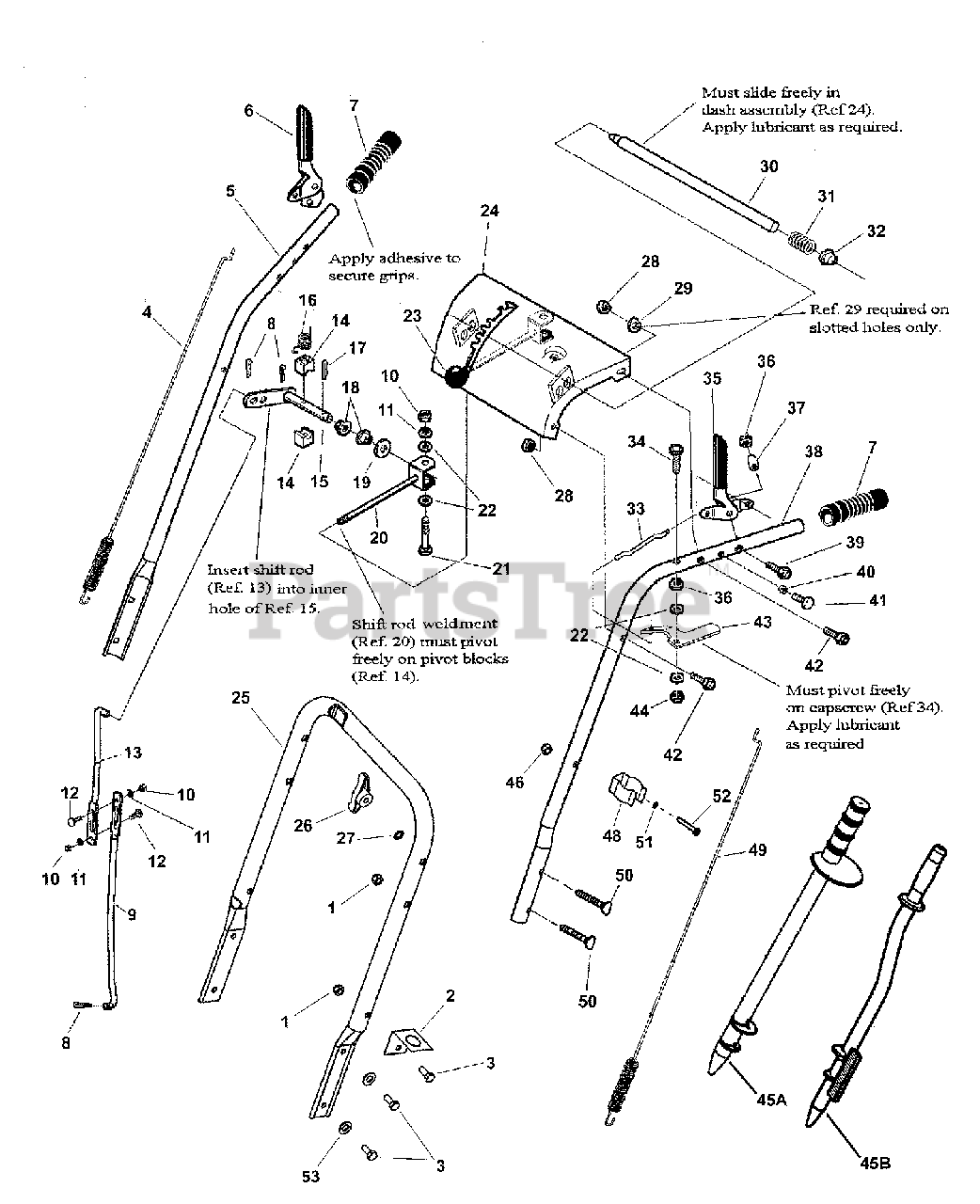

UPPER HANDLES, DASH, CONTROLS Parts Diagram

  • Title

1

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

Note: (or 7091298)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 1726727

BRACKET, Snow Stick- Lower
(Superseded to 1726727ASM)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 1921332

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: (or 7091318)

$3.99

$

In Stock, Qty 9

0

4

Snapper 7027426

CLUTCH CABLE, Auger Drive- RH
(Superseded to 7027426SM)

Note: (part number is stamped on cable)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 1726574

HANDLE, Upper, Right Hand
(Superseded to 1726574SM)

$38.99

$

Usually ships in 2-12 days

0

6

Snapper 1722638

GRIP, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

7

Snapper 1726317

GRIP, Foam, Black
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

8

Snapper 1722460

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 1666255

ROD, Shift, Lower
(Superseded to 1666255SM)

$51.99

$

In Stock, only 4 left!

0

10

Snapper 1916622

NUT, 1/4-20 2B Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 1916964

LOCKWASHER, 1/4" Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

12

Snapper 1931317

BOLT, 1/4-20 x 2" Short Square Neck Carriage, GR 5

$3.99

$

In Stock, only 3 left!

0

13

Snapper 1720238

ROD, Upper, Shift
(Superseded to 1720238SM)

$

$

Not available

14

Snapper 1668524

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 1720240

WELDMENT, Shift Rod Pivot
(Superseded to 1720240SM)

$49.99

$

Usually ships in 2-12 days

0

16

Snapper 1715123

SPRING, Compression
(Superseded to 1715123SM)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 1918452

COTTER PIN, .125 x 1.00
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

18

Snapper 1668185

BUSHING, .500 ID x .750 OD x .25
(Superseded to 1668185SM)

$5.49

$

In Stock, only 1 left!

0

19

Snapper 1924361

WASHER, 1/2" Flat (.531 ID x 1.250 OD x .08 Thick)
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 1668523

WELDMENT, Shift Rod
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

21

Snapper 1960705

SCREW, 1/4-20 x 2-1/4" Hex Flange Lock
(Superseded to 1960705SM)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 1921319

WASHER, .250 (.27 ID x .62 OD)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1726734

KNOB, Tapered - 3/8-16 Internal Thread- Red
(Superseded to 1726734SM)

$11.99

$

In Stock, only 1 left!

0

24

Snapper 1726983

WELDMENT, Dash
(Superseded to 1726983ASM)

$242.99

$

Usually ships in 2-12 days

0

25

Snapper 1726572

HANDLE, Lower
(Superseded to 1726572SM)

$95.99

$

Usually ships in 2-12 days

0

26

Snapper 7035744

WING KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 1919326

WASHER, .312 (.34 ID x .75 OD)
(Superseded to 703332)

Note: (or 7014098)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 1722633

ASSEMBLY, Rod w/Pin
(Superseded to 1722633SM)

Note: (includes items 32, 47, 54, 55 & 56.)

$35.99

$

Usually ships in 2-12 days

0

31

Snapper 1722690

SPRING, Compression
(Superseded to 1722690SM)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 1960519

PUSH NUT
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 1722630

ROD, Hold Down
(Superseded to 1722630SM)

$7.49

$

Usually ships in 2-12 days

0

34

Snapper 1960662

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 1960662SM)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 1722667

GRIP, Clutch, LH
(Superseded to 1722667SM)

$37.99

$

In Stock, only 1 left!

0

36

Snapper 1923358

NUT, 1/4-20 Hex Centerlock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

37

Snapper 1715655

SPACER, Handle
(Superseded to 1715655SM)

$7.99

$

Usually ships in 2-12 days

0

38

Snapper 1726573

HANDLE, Upper, Left Hand
(Superseded to 1726573SM)

$47.99

$

Usually ships in 2-12 days

0

39

Snapper 1922837

SCREW, 1/4-20 x 1-1/2" Hex Head Cap
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

40

Snapper 1715654

SPACER, .268 ID x .394 x .165
(Superseded to 1715654SM)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 1960671

SCREW, 1/4-20 x 3/4" Pan Head Torx Self-Tap
(Superseded to 1960671SM)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 1921221

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

43

Snapper 1722631

LEVER, Pivot
(Superseded to 1722631ASM)

$8.49

$

Usually ships in 2-12 days

0

44

Snapper 1920397

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

45A

Snapper 7075909

SNOW STICK
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

45B

Snapper 1733209

SNOW STICK w/Brush
(Superseded to 1736094YP)

Note: (replaces 7075909)

$34.99

$

In Stock, only 4 left!

0

46

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

47

Snapper 1722632

ROD, Hand Control
(Superseded to 1722633SM)

Note: (not shown; part of item 30)

$35.99

$

Usually ships in 2-12 days

0

48

Snapper 7071895

HOLDER, Snostik- Upper
(Superseded to 7071895YP)

$3.99

$

In Stock, only 2 left!

0

49

Snapper 7027425

CLUTCH CABLE, Ground Drive- LH
(Superseded to 7027425SM)

Note: (parts number is stamped on cable)

$23.99

$

Usually ships in 2-12 days

0

50

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

51

Snapper 7090011

WASHER, #10 Internal Tooth Lock
(Superseded to 7090011SM)

$3.99

$

In Stock, only 1 left!

0

52

Snapper 7091266

SCREW, #10-24 x 2" Hex Washer Head Machine, GR 5
(Superseded to 7091266SM)

$3.99

$

In Stock, only 3 left!

0

53

Snapper 1917356

LOCKWASHER, Spring .312
(Superseded to 703116)

Note: (or 7091315)

$3.49

$

In Stock, Qty 20+

0

54

Snapper 1722635

BUSHING, .250 ID x .375 OD x .750
(Superseded to 1722633SM)

Note: (not shown; part of item 30)

$35.99

$

Usually ships in 2-12 days

0

55

Snapper 1722634

PIN, Clevis
(Superseded to 1722634SM)

Note: (not shown; part of item 30)

$5.49

$

Usually ships in 2-12 days

0

56

Snapper 1722613

SPRING, Compression
(Superseded to 1722613SM)

Note: (not shown; part of item 30)

$3.49

$

Usually ships in 2-12 days
