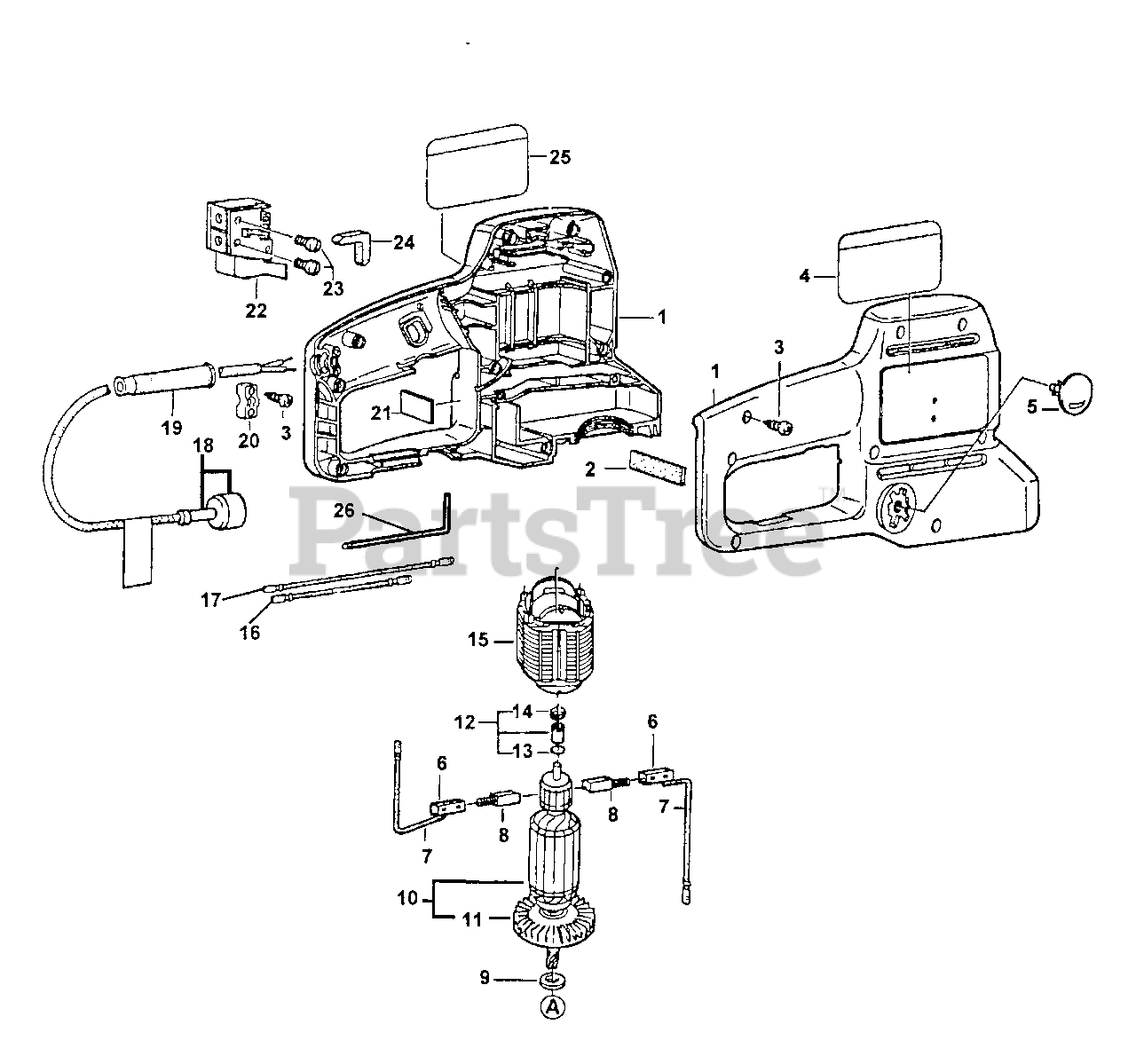

EHC-3000 - Echo Hedge Trimmer, Corded Motor Housing, Electric Motor, Switch/Cord Parts Diagram

Hedge Trimmer, Corded

Motor Housing, Electric Motor, Switch/Cord Parts Diagram

  • Title

1

Echo 72605104490

HOUSING, MOTOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 72601005008

SEAT, FELT
(Superseded to Discontinued)

$

$

Not available

3

Echo 72603435036

SCREW - 4X16

$1.49

$

Usually ships in 2-4 days

0

4

Echo 72601118751

LABEL - ECHO 2000
(Superseded to Discontinued)

$

$

Not available

5

Echo 72605500133

KNOB
(Superseded to Discontinued)

$

$

Not available

6

Echo 72604330016

HOLDER, BRUSH

$1.49

$

Usually ships in 2-4 days

0

7

Echo 72604448030

CABLE - 80mm

$1.49

$

Usually ships in 2-4 days

0

8

Echo 72604321904

BRUSH SET
(Superseded to Discontinued)

$

$

Not available

9

Echo 72600209003

SPACER

$1.49

$

Usually ships in 2-4 days

0

10

Echo 72604010603

ARMATURE - 115V
(Superseded to Discontinued)

Note: Includes ITEM 11

$

$

Not available

11

Echo 72606610027

FAN
(Superseded to Discontinued)

$

$

Not available

12

Echo 72600301024

BUMPER ASSY
(Superseded to Discontinued)

$

$

Not available

13

Echo 71600205023

SEAL, FELT
(Superseded to Discontinued)

Note: Includes ITEMS 13-14

$

$

Not available

14

Echo 71610210014

O-RING
(Superseded to Discontinued)

$

$

Not available

15

Echo 72604220432

FIELD 115V

$65.99

$

Usually ships in 2-4 days

0

16

Echo 72604448045

CABLE - 100mm
(Superseded to Discontinued)

$

$

Not available

17

Echo 72604448112

CABLE - 200mm
(Superseded to Discontinued)

$

$

Not available

18

Echo 72604460191

CORD (115V)
(Superseded to Discontinued)

$

$

Not available

19

Echo 72600703008

RELIEF, STRAIN

$1.49

$

Usually ships in 2-4 days

0

20

Echo 72601035001

CLAMP, CORD
(Superseded to Discontinued)

$

$

Not available

21

Echo 71601110449

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

22

Echo 72607200134

SWITCH, IGNITION

$10.99

$

Usually ships in 2-4 days

0

23

Echo 72603410001

SCREW
(Superseded to Discontinued)

$

$

Not available

24

Echo 72601022000

STRIP, SEAL
(Superseded to Discontinued)

$

$

Not available

25

Echo 72601118798

LABEL - MODEL EHC-3000
(Superseded to Discontinued)

$

$

Not available

26

Echo 71907950006

HEX KEY
(Superseded to Discontinued)

$

$

Not available
