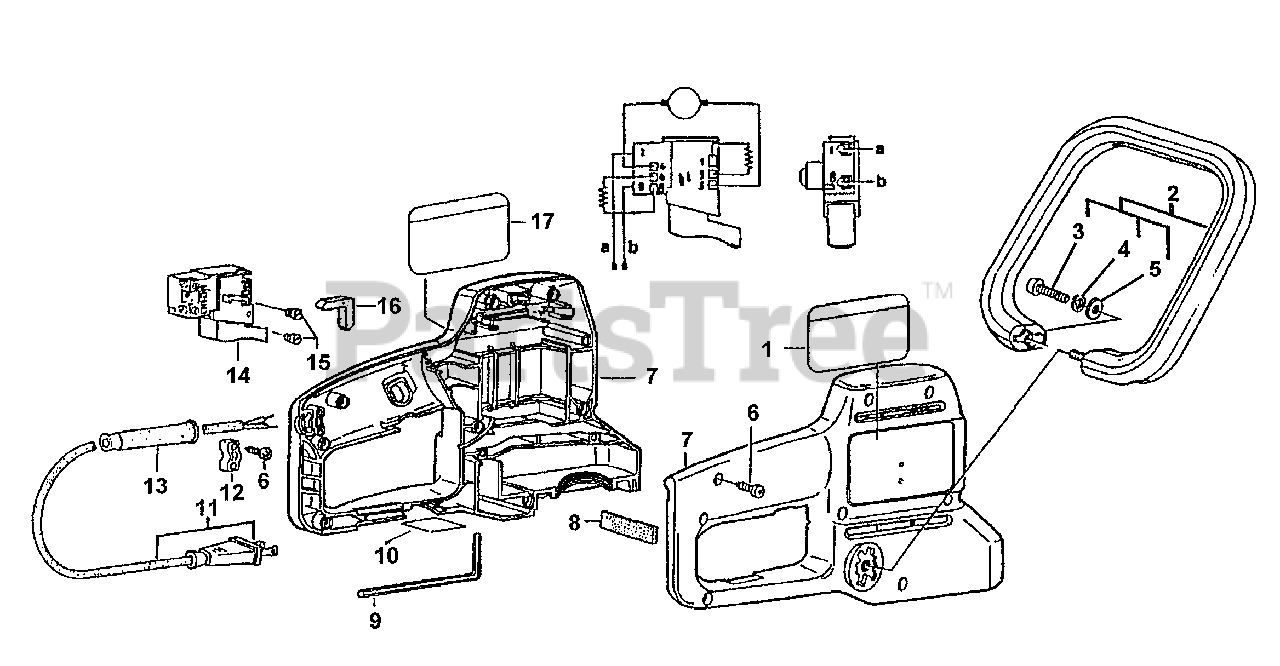

EHC-2000 - Echo Hedge Trimmer, Corded Motor Housing, Switch, Cord, Handle Parts Diagram

Hedge Trimmer, Corded

Motor Housing, Switch, Cord, Handle Parts Diagram

  • Title

1

Echo 72601118751

LABEL - ECHO 2000
(Superseded to Discontinued)

$

$

Not available

2

Echo 72602025059

AUXILIARY HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 72910141201

SCREW
(Superseded to Discontinued)

$

$

Not available

4

Echo 72916690005

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

5

Echo 72916011014

WASHER

$1.49

$

Usually ships in 2-4 days

0

6

Echo 72910611019

SCREW

$1.49

$

Usually ships in 2-4 days

0

7

Echo 72605104490

HOUSING, MOTOR
(Superseded to Discontinued)

$

$

Not available

8

Echo 72601005008

SEAT, FELT
(Superseded to Discontinued)

$

$

Not available

9

Echo 71907950006

HEX KEY
(Superseded to Discontinued)

$

$

Not available

10

Echo 71601106997

PLATE, NAME
(Superseded to Discontinued)

$

$

Not available

11

Echo 72604460156

CORD 115V 18/2

$17.99

$

Usually ships in 2-4 days

0

12

Echo 72601035001

CLAMP, CORD
(Superseded to Discontinued)

$

$

Not available

13

Echo 72600703008

RELIEF, STRAIN

$1.49

$

Usually ships in 2-4 days

0

14

Echo 72607200134

SWITCH, IGNITION

$10.99

$

Usually ships in 2-4 days

0

15

Echo 72603410001

SCREW
(Superseded to Discontinued)

$

$

Not available

16

Echo 72601022000

STRIP, SEAL
(Superseded to Discontinued)

$

$

Not available

17

Echo 72601118750

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available
