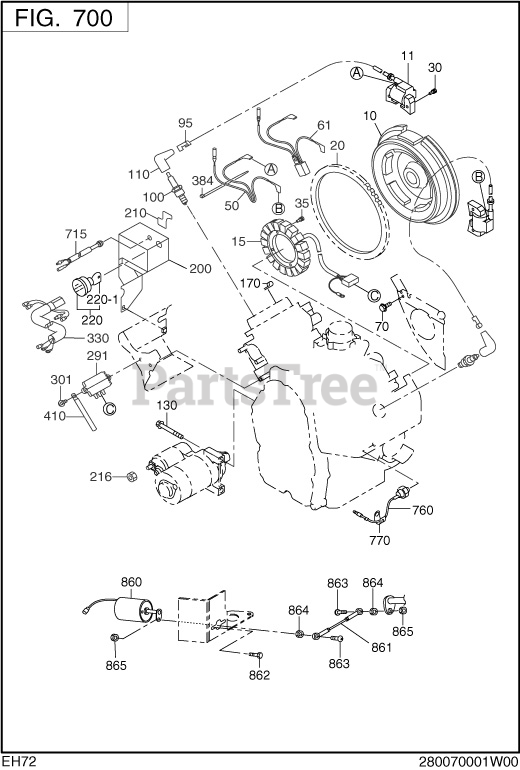

EH722LD2660 (EH722) - Subaru Robin Engine, Propane 700 Electric Device Parts Diagram

Engine, Propane

700 Electric Device Parts Diagram

  • Title

10

Subaru Robin 263-77207-01

FLYWHEEL CP

Note: Start Date: 7/31/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

11

Subaru Robin 263-78204-01

IGNITION COIL CP

Note: Start Date: 4/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK AM.

$

$

Not available

15

Subaru Robin 263-79411-A1

CHARGE COIL CP

Note: Start Date: 7/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$119.99

$

In Stock, only 1 left!

0

20

Subaru Robin 263-71002-H3

RING GEAR

Note: Start Date: 7/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 202DX233DX8.7B N=90.

$133.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 001-14062-50

BOLT AND WASHER AY

Note: Start Date: 4/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X25L W/W,SW.

$0.99

$

In Stock, Qty 6

0

35

Subaru Robin 001-16052-00

BOLT AND WASHER AY

Note: Start Date: 7/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

61

Subaru Robin KU3-11052-21

STOP DIODE CP

Note: Start Date: 7/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$34.99

$

Usually ships in 2-12 days

0

70

Subaru Robin X11-00600-10

FLANGE BOLT

Note: Start Date: 7/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.99

$

In Stock, only 4 left!

0

95

Subaru Robin X65-91000-10

PLUG TERMINAL

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

In Stock, Qty 6

0

100

Subaru Robin 065-01404-80

SPARK PLUG

Note: Start Date: 4/5/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: NGK BPR6ES.

$3.99

$

In Stock, Qty 20+

0

110

Subaru Robin X65-51000-10

SPARK PLUG CAP

Note: Start Date: 7/31/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 011-00801-00

FLANGE BOLT

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX65L.

$6.99

$

In Stock, only 3 left!

0

216

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$2.49

$

In Stock, only 4 left!

0

291

Subaru Robin 263-71901-01

REGULATOR CP

Note: End Code: 7852. Start Date: 7/31/2007 0:00:00. Start Date: 6/30/2008 0:00:00.

$75.99

$

Usually ships in 2-12 days

0

291

Subaru Robin 263-71903-A1

REGULATOR CP

Note: Start Code: 7853. Start Date: 7/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$75.99

$

Usually ships in 2-12 days

0

301

Subaru Robin 011-00601-40

FLANGE BOLT

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX18L.

$2.49

$

Usually ships in 2-12 days

0

384

Subaru Robin 056-30000-10

WIRE BAND

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.8BX1.2TX190L.

$4.99

$

Usually ships in 2-12 days

0
