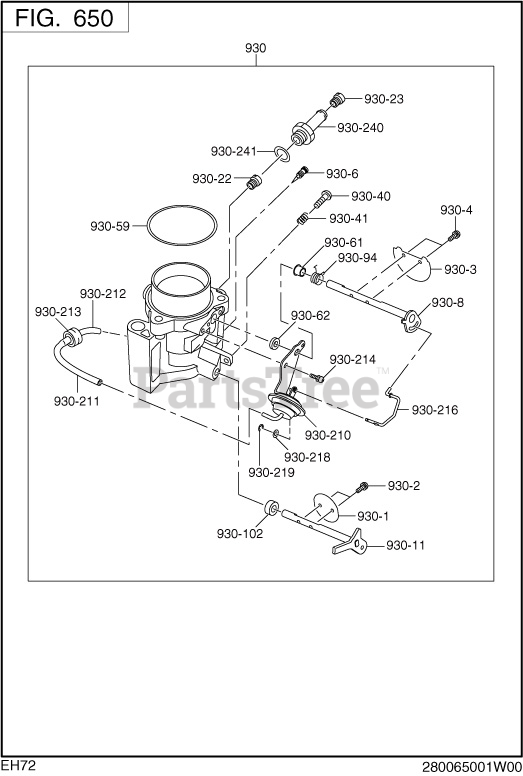

EH722LD2550 (EH722) - Subaru Robin Engine, Propane 650 Fuel & Lubricant Parts Diagram

Engine, Propane

650 Fuel & Lubricant Parts Diagram

  • Title

930

Subaru Robin 280-65212-00

MIXER AY

$483.99

$

Usually ships in 2-12 days

0

-1

280-62536-08

VALVE,THROTTLE

$

$

Not available

-2

Subaru Robin 261-62352-08

SCREW,VALVE SET

$2.99

$

Usually ships in 2-12 days

0

-3

280-62525-08

VALVE,CHOKE

$

$

Not available

-4

Subaru Robin 258-62555-08

SCREW SET(VALVE)

$0.99

$

Usually ships in 2-12 days

0

-6

280-62500-08

NEEDLE CP,IDLEADJUST

$

$

Not available

-8

280-62520-08

SHAFT AY,CHOKE

$

$

Not available

-11

280-62532-08

SHAFT AY,THROTTLE

$

$

Not available

-22

280-62402-08

JET,MAIN

$

$

Not available

-23

Subaru Robin 280-62403-08

JET,MAIN

$26.05

$

Usually ships in 2-12 days

0

-40

Subaru Robin 263-62451-08

SCREW,THRO.ADJUST

$1.49

$

In Stock, only 2 left!

0

-41

Subaru Robin 258-62445-08

SPRING(ADJUST SCREW)

$2.99

$

Usually ships in 2-12 days

0

-59

Subaru Robin 263-62560-08

O-RING,AIR HORN

$12.99

$

In Stock, only 3 left!

0

-61

Subaru Robin 280-62552-08

COLLAR,CHOKE

$4.49

$

Usually ships in 2-12 days

0

-62

280-62558-08

FILTER,CHOKE

$

$

Not available

-94

280-62446-08

SPRING,CHOKE RETURN

$

$

Not available

-102

258-62558-08

FILTER(THROTTLE SHAF

$

$

Not available

-210

280-62362-08

OPENER AY,CHOKE

$

$

Not available

-211

280-62370-08

HOSE(100MM)

$

$

Not available

-212

280-62371-08

HOSE(40MM)

$

$

Not available

-213

107-62567-08

VALVE ASSY,DELAY

$

$

Not available

-214

263-62585-08

SCREW,WITH WASHER

$

$

Not available

-216

280-62350-08

ROD,CHOKE PISTON

$

$

Not available

-218

Subaru Robin 263-62596-08

WASHER,ROD

$1.49

$

Usually ships in 2-12 days

0

-219

Subaru Robin 107-62377-08

E-RING,ROD

$0.99

$

Usually ships in 2-12 days

0

-240

280-62335-08

CONNECTOR,FUEL

$

$

Not available

-241

280-62560-08

GASKET,CONNECTOR

$

$

Not available
