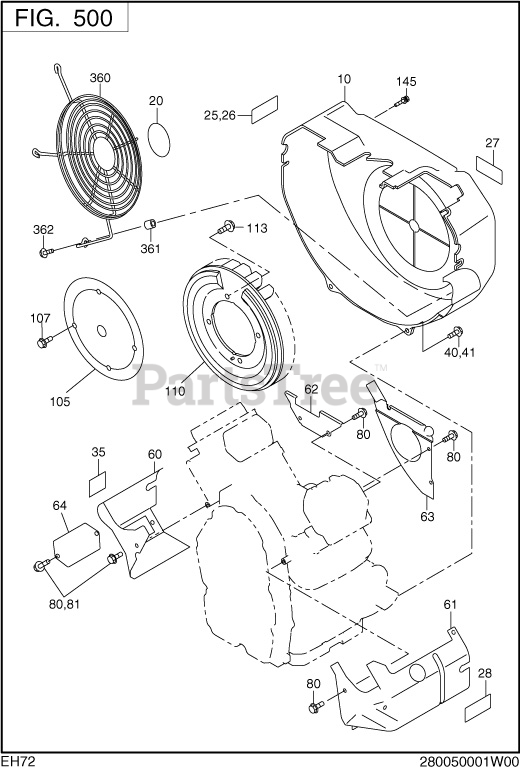

EH720DS0511 (EH720) - Subaru Robin Engine, Propane 500 Cooling & Starting Parts Diagram

Engine, Propane

500 Cooling & Starting Parts Diagram

  • Title

10

Subaru Robin 280-51102-B2

BLOWER HOUSING UN

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$149.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 073-20054-70

LABEL(TRADE MARK)

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 60D.

$11.99

$

In Stock, only 1 left!

0

25

Subaru Robin 263-92001-03

LABEL(WARNING)

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 38X80 ENGLISH.

$2.99

$

Usually ships in 2-12 days

0

26

Subaru Robin 073-20044-50

LABEL(CAUTION)

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 38X70 ILLUST.

$6.99

$

Usually ships in 2-12 days

0

27

Subaru Robin 263-95301-A3

LABEL (CHOKE)

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 25X38 ILLUST.

$0.99

$

Usually ships in 2-12 days

0

28

Subaru Robin 073-20048-10

LABEL (OPERATION)

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 45X12 ILLUST.

$2.49

$

Usually ships in 2-12 days

0

40

Subaru Robin X11-00600-30

FLANGE BOLT

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX14L.

$2.99

$

In Stock, only 3 left!

0

41

Subaru Robin X11-00601-40

FLANGE BOLT

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX18L.

$2.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 263-52612-A1

CYLINDER BAFFLE 1 CP

Note: Start Date: 8/1/2004 0:00:00. Start Date: 12/31/9999 0:00:00.

$69.99

$

In Stock, only 1 left!

0

61

Subaru Robin 280-52701-C1

CYLINDER BAFFLE 2 CP

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$72.99

$

Usually ships in 2-12 days

0

62

Subaru Robin 263-52801-03

CYLINDER BAFFLE 3

Note: End Code: 7975. Start Date: 1/1/2008 0:00:00. Start Date: 10/31/2008 0:00:00.

$7.70

$

Usually ships in 2-12 days

0

62

Subaru Robin 263-52802-A3

CYLINDER BAFFLE 3

Note: Start Code: 7976. Start Date: 11/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Currently unavailable

63

Subaru Robin 263-52912-A2

CYLINDER BAFFLE 4 UN

Note: Start Date: 8/1/2004 0:00:00. Start Date: 12/31/9999 0:00:00.

$21.99

$

Usually ships in 2-12 days

0

80

Subaru Robin X11-00600-20

FLANGE BOLT

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 2 left!

0

81

Subaru Robin X11-00600-20

FLANGE BOLT

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 2 left!

0

105

Subaru Robin 263-55001-A1

ROTATING SCREEN

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$20.99

$

Usually ships in 2-12 days

0

107

Subaru Robin 004-36042-00

SCREW AND WASHER

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 263-54102-A2

COOLING BLOWER UN

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$49.61

$

Usually ships in 2-12 days

0

113

Subaru Robin 001-14061-60

BOLT AND WASHER AY

Note: Start Date: 11/22/2001 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X16L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

145

Subaru Robin X11-00600-10

FLANGE BOLT

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.49

$

In Stock, Qty 8

0

360

Subaru Robin 280-55002-A1

FAN GUARD

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$190.99

$

Usually ships in 2-12 days

0

361

Subaru Robin 023-00602-81

SPACER

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.86

$

Usually ships in 2-12 days

0

362

Subaru Robin X11-00601-70

FLANGE BOLT

Note: Start Date: 1/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

Usually ships in 2-12 days

0
