EH650DCR021 (EH65) - Subaru Robin Engine 800 Reduction Parts Diagram

Engine

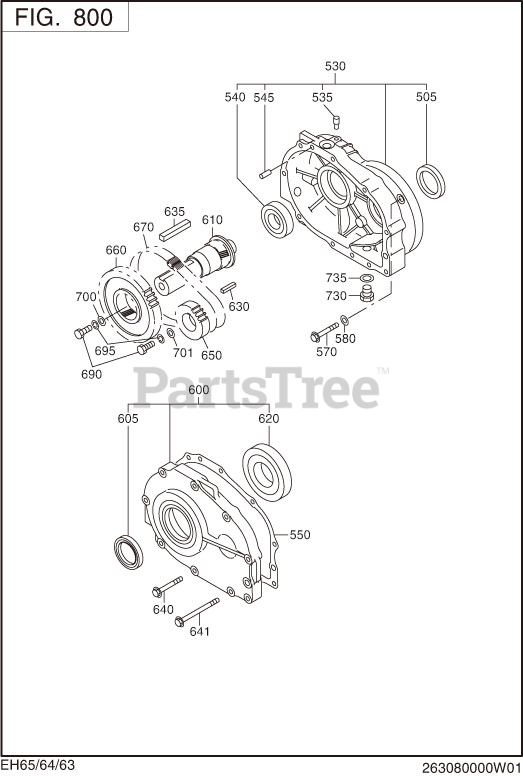

800 Reduction Parts Diagram

  • Title
505

044-04200-40

OIL SEAL

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 42DX60DX9B.

$

$

Not available

530

263-80101-01

REDUCTION CASE CP

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

535

Subaru Robin 067-00701-00

AIR BREATHER

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

0

540

Subaru Robin 060-02500-20

BALL BEARING

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 25DX62DX17B.

$26.99

$

Usually ships in 2-12 days

0

545

Subaru Robin 005-26081-80

DOWEL PIN

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

550

263-86002-03

GASKET(COVER)

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3.

$

$

Not available

570

Subaru Robin X10-11000-50

BOLT

Note: End Code: 5722. Start Date: 5/30/2002 0:00:00. Start Date: 8/31/2002 0:00:00. Remarks: 3/8-16UNCX31.8L.

$1.49

$

Usually ships in 2-12 days

0

570

011-01001-00

FLANGE BOLT

Note: Start Code: 5723. Start Date: 9/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 3/8-16UNCX19.5DX32L.

$

$

Not available

580

021-11000-10

GASKET

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10DX16DX1T.

$

$

Not available

600

263-80601-01

REDUCTION COVER CP

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

605

Subaru Robin 044-04200-30

OIL SEAL

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 42DX60DX9B.

$19.99

$

Usually ships in 2-12 days

0

610

263-81102-03

DRIVING SHAFT

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

620

Subaru Robin 060-04500-10

BALL BEARING

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 45DX100DX25B.

$87.99

$

Usually ships in 2-12 days

0

630

Subaru Robin 005-30071-51

KEY

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.40

$

Usually ships in 2-12 days

0

635

Subaru Robin 005-30105-01

KEY

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.99

$

Usually ships in 2-12 days

0

640

Subaru Robin 011-00802-20

FLANGE BOLT

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX45L.

$8.49

$

Usually ships in 2-12 days

0

641

X11-01000-80

FLANGE BOLT

Note: End Code: 5722. Start Date: 5/30/2002 0:00:00. Start Date: 8/31/2002 0:00:00.

$

$

Not available

641

011-01000-90

FLANGE BOLT

Note: Start Code: 5723. Start Date: 9/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 3/8-16UNCX19.5DX92L.

$

$

Not available

650

263-82403-03

DRIVING SPROCKET

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

660

263-82302-03

REDUCTION SPROCKET

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

670

263-85003-01

REDUCTION CHAIN CP

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

690

Subaru Robin 001-66102-50

BOLT

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

695

Subaru Robin 003-20100-00

SPRING WASHER

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.2DX18.4DX2.5T.

$0.99

$

Usually ships in 2-12 days

0

700

Subaru Robin 020-01000-30

WASHER

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.5DX45DX4.5T.

$4.49

$

Usually ships in 2-12 days

0

701

020-01001-90

WASHER

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.5DX46DX4.5T.

$

$

Not available

730

Subaru Robin 040-11400-30

PLUG

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M14X1.5X20DX12L.

$3.49

$

In Stock, only 1 left!

0

735

Subaru Robin 021-11400-20

GASKET

Note: Start Date: 5/30/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 14.1DX19DX2.3T.

$0.99

$

Usually ships in 2-12 days

0
