EH650DC5330 (EH65) - Subaru Robin Engine 300 Intake & Exhaust Parts Diagram

Engine

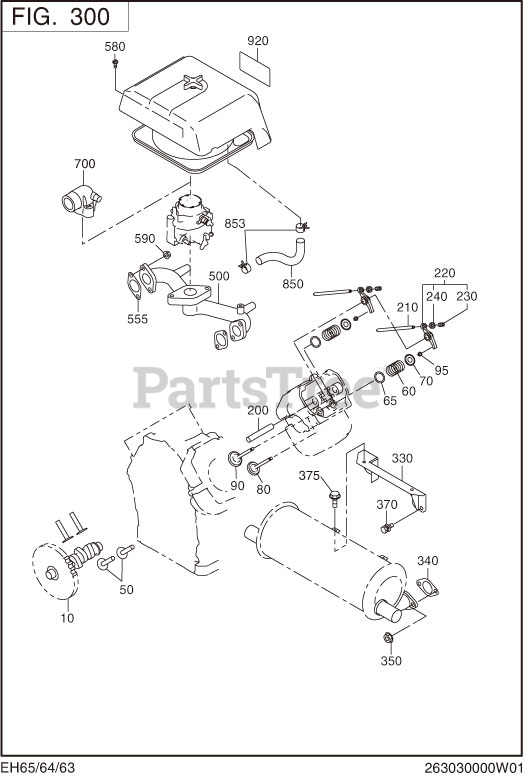

300 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 263-31701-13

CAM SHAFT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=169 133DX12B N=66.

$

$

Not available

50

Subaru Robin 263-33301-A3

TAPPET

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 27DX9DX48L.

$8.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 22.2DX2.9DX37L N=6.5.

$4.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33711-03

SPRING RETAINER

Note: End Code: 5538. Start Date: 6/9/1998 0:00:00. Start Date: 2/28/2002 0:00:00. Remarks: 7.6DX26DX8T. Interchangable with 246-33711-13.

$8.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33711-13

SPRING RETAINER

Note: Start Code: 5539. Start Date: 3/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.6DX26DX8T.

$8.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 263-33401-03

INTAKE VALVE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 35DX6DX79.8L.

$36.99

$

In Stock, only 2 left!

0

90

Subaru Robin 263-33502-03

EXHAUST VALVE

Note: End Code: 6148. Start Date: 6/9/1998 0:00:00. Start Date: 10/31/2003 0:00:00. Remarks: 31DX6DX80.3L. Interchangable with 263-33502-13.

$72.99

$

In Stock, only 2 left!

0

90

Subaru Robin 263-33502-13

EXHAUST VALVE

Note: Start Code: 6149. Start Date: 11/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 31DX6DX80.3L.

$72.99

$

In Stock, only 2 left!

0

95

Subaru Robin 246-35501-03

COLLET-VALVE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

In Stock, Qty 6

0

200

Subaru Robin 239-35001-03

ROCKER SHAFT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12DX75L.

$12.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 263-35311-01

PUSH ROD CP

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX135.5L.

$

$

Not available

220

Subaru Robin 246-36101-10

ROCKER ARM AY

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$35.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 014-90800-21

ADJUSTING SCREW

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X0.75X13.4L.

$7.49

$

Usually ships in 2-12 days

0

240

Subaru Robin 017-00800-90

NUT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X0.75X5.1H.

$6.99

$

Usually ships in 2-12 days

0

330

Subaru Robin 263-37001-A1

BRACKET MUFFLER

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Interchangable with 263-37001-H1.

$40.99

$

In Stock, only 1 left!

0

340

Subaru Robin 263-35201-A1

GASKET EXHAUST

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.6 28D 8.5DX52P.

$5.99

$

In Stock, Qty 6

0

350

Subaru Robin 018-00800-10

FLANGE NUT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$5.49

$

Usually ships in 2-12 days

0

370

Subaru Robin 001-14082-00

BOLT AND WASHER AY

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X20L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

375

Subaru Robin 011-00600-30

FLANGE BOLT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX14L.

$2.99

$

In Stock, only 3 left!

0

500

Subaru Robin 263-33001-03

INTAKE MANIFOLD

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$177.99

$

In Stock, only 1 left!

0

555

Subaru Robin 263-35503-A3

GASKET(IN MANIFOLD)

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.4 31D 8.5DX52P.

$3.49

$

In Stock, Qty 14

0

580

Subaru Robin X10-10500-10

FLANGE BOLT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

In Stock, only 4 left!

0

590

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$1.99

$

In Stock, only 4 left!

0

850

Subaru Robin 263-18001-03

RUBBER PIPE

Note: End Code: 5691. Start Date: 6/9/1998 0:00:00. Start Date: 7/31/2002 0:00:00. Remarks: 15.5DX19D FORMED. Interchangable with 263-18001-A3.

$20.99

$

Usually ships in 2-12 days

0

850

Subaru Robin 263-18001-A3

RUBBER PIPE

Note: Start Code: 5692. End Code: 6330. Start Date: 8/1/2002 0:00:00. Start Date: 4/30/2004 0:00:00. Remarks: 14.5DX20.5D FORMED. Interchangable with 263-18003-03.

$20.99

$

Usually ships in 2-12 days

0

850

Subaru Robin 263-18003-03

RUBBER PIPE

Note: Start Code: 6331. Start Date: 5/1/2004 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 14.5DX20.5D FORMED.

$20.99

$

Usually ships in 2-12 days

0

853

Subaru Robin 056-11800-20

HOSE CLAMP

Note: End Code: 5691. Start Date: 6/9/1998 0:00:00. Start Date: 7/31/2002 0:00:00. Remarks: 18.5DX10BX0.9T.

$2.49

$

Usually ships in 2-12 days

0

853

Subaru Robin 056-12000-20

HOSE CLAMP

Note: Start Code: 5692. Start Date: 8/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20DX10BX1T.

$0.99

$

In Stock, only 2 left!

0

920

263-91710-03

LABEL(TRADE MARK)

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 50X95 ENGLISH.

$

$

Not available
