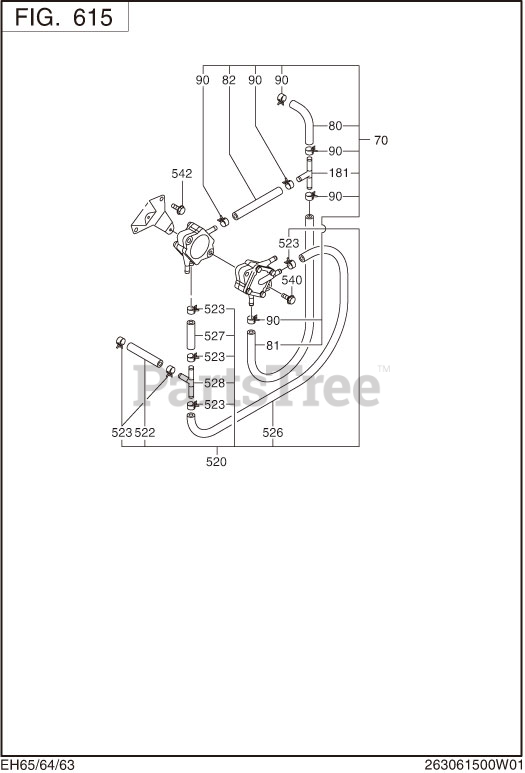

EH650DC251S (EH65) - Subaru Robin Engine 615 Fuel & Lubricant Parts Diagram

Engine

615 Fuel & Lubricant Parts Diagram

  • Title

70

Subaru Robin 263-62602-01

FUEL PIPE 2 CP

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$24.98

$

Usually ships in 2-12 days

0

80

085-10608-60

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX370L. Interchangable with 085-10600-00.

$

$

Not available

81

085-10606-60

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX370L.

$

$

Not available

82

Subaru Robin 085-10607-70

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX340L.

$7.21

$

Usually ships in 2-12 days

0

90

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

0

181

Subaru Robin 234-67101-03

T CONNECTOR

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.40

$

Usually ships in 2-12 days

0

520

Subaru Robin 263-62651-01

PULSE PIPE 2 CP

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$22.06

$

Usually ships in 2-12 days

0

522

Subaru Robin 085-10607-40

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX120L. Interchangable with 085-10600-00.

$

$

Not available

523

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

0

526

085-10608-60

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX370L. Interchangable with 085-10600-00.

$

$

Not available

527

085-10609-70

RUBBER PIPE

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX45L. Interchangable with 085-10600-00.

$

$

Not available

528

Subaru Robin 234-67101-03

T CONNECTOR

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.40

$

Usually ships in 2-12 days

0

540

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

542

Subaru Robin 011-00601-40

FLANGE BOLT

Note: Start Date: 6/9/1998 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX18L.

$2.49

$

Usually ships in 2-12 days

0
