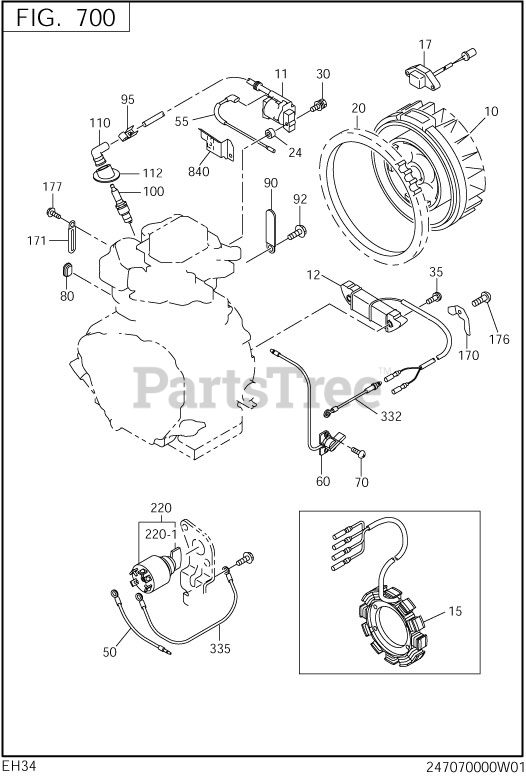

EH340DS6030 (EH34) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

700 Electric Device Parts Diagram

  • Title

10

Subaru Robin 246-77205-21

FLYWHEEL CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK 30DS401.

$276.68

$

Usually ships in 2-12 days

0

11

Subaru Robin 246-78201-21

IGNITION COIL CP
(Superseded to 246-78211-01)

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK FT008B.

$213.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 246-79251-01

CHARGE COIL CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00.

$84.56

$

Usually ships in 2-12 days

0

20

Subaru Robin 246-71002-03

RING GEAR

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: D 202DX230DX7B N=90.

$219.96

$

Usually ships in 2-12 days

0

30

Subaru Robin 001-14063-00

BOLT AND WASHER AY

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X30L W/W,SW.

$0.99

$

In Stock, only 3 left!

0

35

Subaru Robin 004-35062-00

SCREW AND WASHER AY

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X20L W/SW.

$0.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 224-73102-01

WIRE 3 CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=100 BLACK. Interchangable with 234-73101-01.

$2.49

$

Usually ships in 2-12 days

0

55

Subaru Robin 246-73101-01

WIRE 1 CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=230 BLACK.

$10.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 226-75501-03

GROMMET

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX14DX7.5H.

$2.49

$

Usually ships in 2-12 days

0

100

Subaru Robin 065-01405-80

SPARK PLUG

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: NGK BR6ES.

$17.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 065-50000-51

SPARK PLUG CAP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.99

$

Usually ships in 2-12 days

0

170

Subaru Robin 246-75502-01

CLAMP CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.20

$

Usually ships in 2-12 days

0

176

Subaru Robin 004-31060-80

SCREW,PANHEAD

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X8L.

$0.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 066-00003-30

SWITCH
(Superseded to 066-00003-31)

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00.

$136.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 066-00099-80

KEY,SWITCH

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: MARK 103.

$36.99

$

Usually ships in 2-12 days

0

335

Subaru Robin 227-73102-01

WIRE (2) CP

Note: Start Date: 10/28/1993 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=140 BLACK.

$2.99

$

Usually ships in 2-12 days

0
