EH340BS7640 (EH34) - Subaru Robin Engine 307 Intake & Exhaust Parts Diagram

Engine

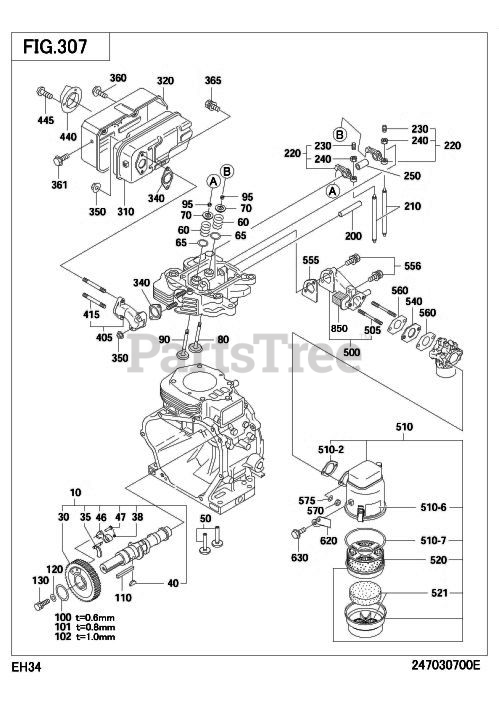

307 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 246-31602-01

CAMSHAFT CP

$129.19

$

Usually ships in 2-12 days

0

30

Subaru Robin 246-33201-03

CAMSHAFT GEAR

$157.48

$

Usually ships in 2-12 days

0

35

246-36202-11

RELEASE LEVER CP

Note: Start Code: 4474.

$

$

Not available

35

Subaru Robin 246-36202-01

RELEASE LEVER CP

Note: End Code: 4473.

$17.53

$

Usually ships in 2-12 days

0

38

Subaru Robin 246-36702-13

RETURN SPRING

$3.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 005-32044-01

WOODRUFF KEY

$4.49

$

In Stock, only 1 left!

0

46

Subaru Robin 246-36802-03

HOLDER(DECOMP)

$11.05

$

Usually ships in 2-12 days

0

47

Subaru Robin 246-36803-03

RIVET

$2.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 246-33301-03

TAPPET

$8.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Code: 3532.

$4.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 246-33601-03

VALVE SPRING

Note: End Code: 3531.

$2.99

$

Usually ships in 2-12 days

0

65

Subaru Robin 020-02000-10

WASHER

$1.49

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33711-03

SPRING RETAINER

Note: Start Code: 3532.

$8.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33701-13

SPRING RETAINER

Note: End Code: 3531.

$4.49

$

Usually ships in 2-12 days

0

80

Subaru Robin 246-33411-03

INTAKE VALVE

Note: Start Code: 3532.

$31.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 246-33401-03

INTAKE VALVE

Note: End Code: 3531.

$31.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 246-33511-03

EXHAUST VALVE

Note: Start Code: 3532.

$61.99

$

In Stock, only 1 left!

0

90

Subaru Robin 246-33501-03

EXHAUST VALVE

Note: End Code: 3531.

$58.99

$

Usually ships in 2-12 days

0

95

Subaru Robin 246-35501-03

COLLET-VALVE

$2.49

$

In Stock, Qty 6

0

100

Subaru Robin 023-03501-60

SPACER

Note: Remarks: T=0.6.

$5.99

$

Usually ships in 2-12 days

0

101

Subaru Robin 023-03501-70

SPACER

Note: Remarks: T=0.8.

$6.49

$

Usually ships in 2-12 days

0

102

Subaru Robin 023-03501-80

SPACER

Note: Remarks: T=1.0.

$4.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 005-30073-51

KEY

$7.49

$

Usually ships in 2-12 days

0

120

Subaru Robin 020-01000-10

WASHER

$2.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 001-13102-00

BOLT AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

200

Subaru Robin 239-35001-03

ROCKER SHAFT

$12.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 246-35301-11

PUSH ROD CP

$43.40

$

Usually ships in 2-12 days

0

220

Subaru Robin 246-36101-10

ROCKER ARM AY

$35.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 014-90800-21

ADJUSTING SCREW

$7.49

$

Usually ships in 2-12 days

0

240

Subaru Robin 017-00800-90

NUT

$6.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 246-36120-13

SPACER(ROCKER SHAFT)

$4.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 246-30101-31

MUFFLER CP

Note: Start Code: 4657.

$192.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 246-30101-21

MUFFLER CP

Note: End Code: 4656.

$192.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 246-34201-31

MUFFLER COVER CP

Note: Start Code: 4657.

$82.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 246-34201-21

MUFFLER COVER CP

Note: End Code: 4656.

$82.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 246-35201-03

GASKET(MUFFLER)

$3.49

$

In Stock, only 2 left!

0

350

Subaru Robin 018-00800-10

FLANGE NUT

$5.49

$

Usually ships in 2-12 days

0

360

Subaru Robin 015-20600-90

TAPPING BOLT

Note: Start Code: 4657.

$1.99

$

In Stock, Qty 5

0

360

Subaru Robin 011-00600-10

FLANGE BOLT

Note: End Code: 4656.

$2.49

$

In Stock, Qty 8

0

361

Subaru Robin 011-00600-10

FLANGE BOLT

$2.49

$

In Stock, Qty 8

0

365

Subaru Robin 001-11081-60

BOLT AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

405

Subaru Robin 246-34001-01

EXHAUST PIPE CP

$66.60

$

Usually ships in 2-12 days

0

415

Subaru Robin 010-50803-60

STUD

$6.24

$

Usually ships in 2-12 days

0

500

Subaru Robin 246-33001-01

INTAKE PIPE CP

$96.99

$

Usually ships in 2-12 days

0

505

Subaru Robin 010-50602-30

STUD

$4.49

$

Usually ships in 2-12 days

0

540

Subaru Robin 246-32901-03

INSULATOR

$9.99

$

Usually ships in 2-12 days

0

555

Subaru Robin 246-36001-13

GASKET(IN.PIPE)

$5.49

$

Usually ships in 2-12 days

0

556

Subaru Robin 001-13082-80

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

560

Subaru Robin 234-35902-03

GASKET2(INSULATOR)

Note: Remarks: T=0.2.

$1.49

$

In Stock, Qty 5

0
