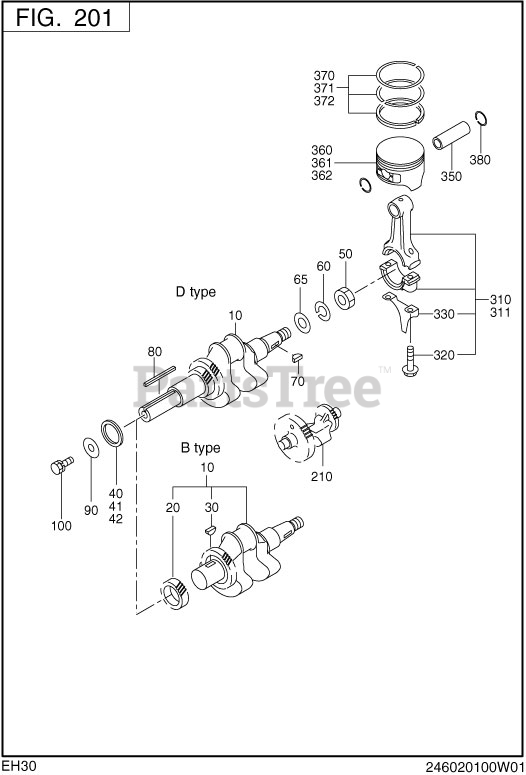

EH300BS7320 (EH30) - Subaru Robin Engine 201 Crankshaft Parts Diagram

Engine

201 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 246-20101-01

CRANKSHAFT CP

Note: End Code: 7244. Start Date: 10/28/1993. Start Date: 10/31/2006.

$363.50

$

Usually ships in 2-12 days

0

10

246-20101-11

CRANKSHAFT CP

Note: Start Code: 7245. Start Date: 11/1/2006. Start Date: 12/31/9999.

$

$

Not available

20

Subaru Robin 246-22301-03

CRANKSHAFT GEAR

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$69.65

$

Usually ships in 2-12 days

0

30

Subaru Robin 005-32054-01

WOODRUFF KEY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 5BX7.5HX19D.

$6.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-03501-60

SPACER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 35.3DX45DX0.6T.

$5.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 023-03501-70

SPACER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 35.3DX45DX0.8T.

$6.49

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-03501-80

SPACER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 35.3DX45DX1.0T.

$4.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18180-00

NUT

Note: End Code: 6726. Start Date: 10/28/1993. Start Date: 5/31/2005. Remarks: M18X1.5X15H.

$6.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 018-01800-10

FLANGE NUT

Note: Start Code: 6727. Start Date: 6/1/2005. Start Date: 12/31/9999. Remarks: M18X1.5X31DX14H.

$10.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 003-20180-00

SPRING WASHER

Note: End Code: 6726. Start Date: 10/28/1993. Start Date: 5/31/2005. Remarks: 18.2DX31DX4.6T.

$0.99

$

Usually ships in 2-12 days

0

65

Subaru Robin 003-10180-00

WASHER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 19DX32DX2.6T.

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 005-32054-01

WOODRUFF KEY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 5BX7.5HX19D.

$6.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 005-30073-51

KEY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 7BX7HX35L.

$7.49

$

Usually ships in 2-12 days

0

210

Subaru Robin 246-24105-23

BALANCER SHAFT

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$159.59

$

Usually ships in 2-12 days

0

310

Subaru Robin 246-22503-00

CONNECTING ROD AY

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$123.10

$

Usually ships in 2-12 days

0

311

246-22506-00

CONNECTING ROD AY

Note: Start Date: 12/31/9999. Remarks: 0.25 U.S..

$

$

Not available

320

Subaru Robin 246-23001-03

CONNECTING ROD BOLT

Note: End Code: 4795. Start Date: 10/28/1993. Start Date: 2/16/2000. Remarks: M8X1.25X14.6DX46L. Interchangable with 246-23001-13.

$7.49

$

Usually ships in 2-12 days

0

320

Subaru Robin 246-23001-13

CONNECTING ROD BOLT

Note: Start Code: 4796. Start Date: 2/17/2000. Start Date: 12/31/9999. Remarks: M8X1.25X14.6DX46L.

$7.49

$

Usually ships in 2-12 days

0

330

Subaru Robin 246-23101-13

OIL SCRAPER

Note: Start Date: 10/28/1993. Start Date: 12/31/9999.

$5.59

$

Usually ships in 2-12 days

0

350

Subaru Robin 246-23301-03

PISTON PIN

Note: End Code: 6665. Start Date: 10/28/1993. Start Date: 3/31/2005. Remarks: 21DX17DX64.2L. Interchangable with 246-23301-13.

$19.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 246-23301-13

PISTON PIN

Note: Start Code: 6666. Start Date: 4/1/2005. Start Date: 12/31/9999. Remarks: 21DX17DX64.2L.

$19.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 246-23401-13

PISTON

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: STD..

$66.63

$

Usually ships in 2-12 days

0

361

Subaru Robin 246-23402-13

PISTON

Note: Start Date: 12/31/9999. Remarks: 0.25 O.S..

$66.63

$

Usually ships in 2-12 days

0

362

Subaru Robin 246-23403-13

PISTON

Note: Start Date: 12/31/9999. Remarks: 0.50 O.S..

$66.63

$

Usually ships in 2-12 days

0

370

Subaru Robin 246-23501-17

PISTON RING SET

Note: Start Date: 12/31/9999. Remarks: STD..

$54.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 246-23502-17

PISTON RING SET

Note: Start Date: 12/31/9999. Remarks: 0.25 O.S..

$84.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 246-23503-17

PISTON RING SET

Note: Start Date: 12/31/9999. Remarks: 0.50 O.S..

$53.76

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-52100-20

CLIP

Note: Start Date: 10/28/1993. Start Date: 12/31/9999. Remarks: 22.1DX1.4D.

$1.99

$

Usually ships in 2-12 days

0
