EH252BS1010 (EH25-2) - Subaru Robin Engine 300 Intake & Exhaust Parts Diagram

Engine

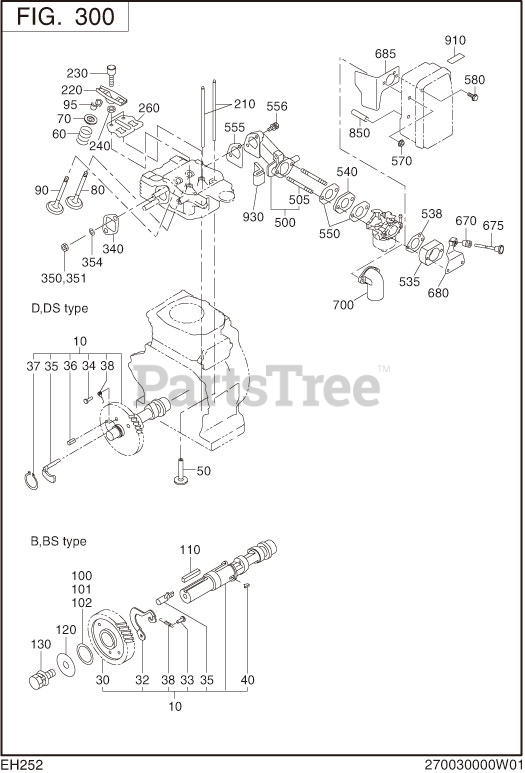

300 Intake & Exhaust Parts Diagram

  • Title

10

254-31601-21

CAMSHAFT CP

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=213 25DX60L.

$

$

Not available

30

254-33201-23

CAMSHAFT GEAR

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 30.2DX96DX21B N=38.

$

$

Not available

32

254-39001-03

FLY WEIGHT

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

33

Subaru Robin 227-39501-03

PIVOT

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX10DX12L.

$0.99

$

Usually ships in 2-12 days

0

35

Subaru Robin 270-39201-01

RELEASE PIN CP

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$27.84

$

Usually ships in 2-12 days

0

38

Subaru Robin 253-39101-03

RETURN SPRING

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.3DX0.5DX32L N=17.3.

$3.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 3BX6HX16D.

$4.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 239-33301-13

TAPPET

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 26DX8DX48L.

$10.76

$

In Stock, only 2 left!

0

60

Subaru Robin 246-33611-03

VALVE SPRING

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 22.2DX2.9DX37L N=6.5.

$5.49

$

In Stock, only 3 left!

0

70

Subaru Robin 246-33711-13

SPRING RETAINER

Note: Start Code: 5511. Start Date: 2/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.6DX26DX8T.

$9.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 246-33711-03

SPRING RETAINER

Note: End Code: 5510. Start Date: 7/16/1997 0:00:00. Start Date: 1/31/2002 0:00:00. Remarks: 7.6DX26DX8T. Interchangable with 246-33711-13.

$9.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 270-33401-03

INTAKE VALVE

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 30DX6DX80.3L.

$36.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 270-33501-03

EXHAUST VALVE

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 26DX6DX80.3L.

$60.99

$

Usually ships in 2-12 days

0

95

Subaru Robin 246-35501-03

COLLET-VALVE

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

In Stock, Qty 6

0

100

Subaru Robin 023-03001-70

SPACER

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 30.3DX40DX0.6T.

$1.99

$

Usually ships in 2-12 days

0

101

Subaru Robin 023-03001-80

SPACER

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 30.3DX40DX0.8T.

$1.49

$

Usually ships in 2-12 days

0

102

Subaru Robin 023-03001-90

SPACER

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 30.3DX40DX1.0T.

$1.49

$

Usually ships in 2-12 days

0

110

Subaru Robin 005-30073-51

KEY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 020-00800-20

WASHER

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.5DX35DX4.5T.

$2.49

$

Usually ships in 2-12 days

0

130

Subaru Robin 001-13081-60

BOLT & WASHER AY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 270-35301-03

PUSH ROD

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.6DX166.5L.

$7.06

$

Usually ships in 2-12 days

0

220

Subaru Robin 261-36001-A3

ROCKER ARM

Note: End Code: 4757. Start Date: 7/16/1997 0:00:00. Start Date: 1/9/2000 0:00:00. Interchangable with 269-36001-03.

$11.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 269-36001-03

ROCKER ARM

Note: Start Code: 4758. End Code: 7112. Start Date: 1/10/2000 0:00:00. Start Date: 6/21/2006 0:00:00. Interchangable with 269-36002-03.

$11.99

$

Usually ships in 2-12 days

0

220

269-36002-03

ROCKER ARM

Note: Start Code: 7113. Start Date: 6/22/2006 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

230

Subaru Robin 269-35801-03

BOLT (PIVOT)

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X19L SOCKET H.

$

$

Not available

240

Subaru Robin 017-00600-90

NUT

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X5.1H.

$3.49

$

Usually ships in 2-12 days

0

260

Subaru Robin 270-36501-03

GUIDE PLATE

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 246-35201-03

GASKET(MUFFLER)

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2 30D 8.5DX52P.

$3.49

$

In Stock, only 2 left!

0

350

Subaru Robin 018-00800-10

FLANGE NUT

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$5.99

$

Usually ships in 2-12 days

0

500

Subaru Robin 254-33001-01

INTAKE PIPE CP

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$105.99

$

Usually ships in 2-12 days

0

505

Subaru Robin 010-50601-91

STUD

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X88L.

$3.49

$

Usually ships in 2-12 days

0

540

Subaru Robin 234-32901-03

INSULATOR

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=10 25D 6.5DX46P.

$7.49

$

Usually ships in 2-12 days

0

550

Subaru Robin 234-35902-03

GASKET2(INSULATOR)

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2 25D 6.5DX46P.

$1.49

$

In Stock, Qty 7

0

555

Subaru Robin 246-36001-13

GASKET(IN.PIPE)

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$5.99

$

Usually ships in 2-12 days

0

556

Subaru Robin 001-13082-80

BOLT AND WASHER AY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

570

Subaru Robin 226-39212-00

NUT AND WASHER AY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX6H W/SW.

$0.99

$

Usually ships in 2-12 days

0

580

Subaru Robin 001-10061-20

BOLT AND WASHER AY

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

850

Subaru Robin 085-10802-20

RUBBER PIPE

Note: Start Date: 7/16/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX11DX75L. Interchangable with 085-10800-00.

$25.99

$

In Stock, only 1 left!

0
