EH252B71020 (EH25-2) - Subaru Robin Engine 331 Intake & Exhaust Parts Diagram

Engine

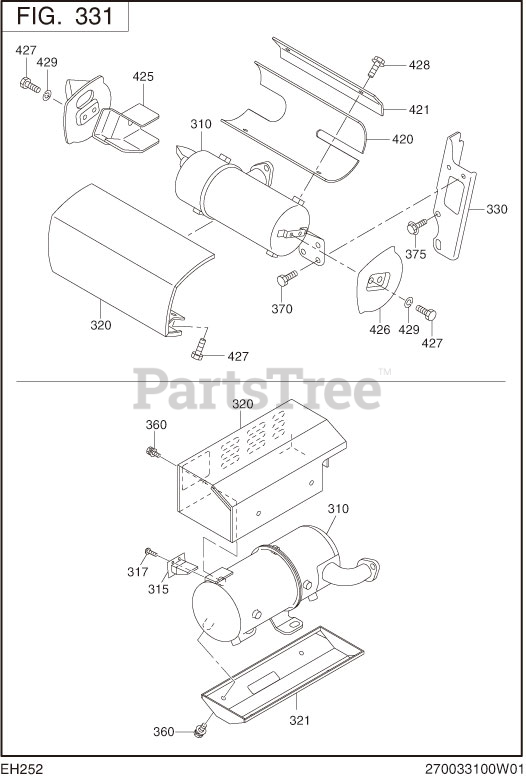

331 Intake & Exhaust Parts Diagram

  • Title

310

Subaru Robin 254-30401-01

MUFFLER CP

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$115.10

$

Usually ships in 2-12 days

0

320

Subaru Robin 207-34210-01

MUFFLER COVER CP

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Interchangable with 207-34210-11.

$63.56

$

Usually ships in 2-12 days

0

330

Subaru Robin 253-37001-11

BRACKET (MUFF) CP

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Currently unavailable

370

Subaru Robin 001-65081-20

BOLT

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

375

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

420

253-34701-13

HEAT DEFLECTOR

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

421

Subaru Robin 207-35104-01

HEAT DEFLECTOR 2

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.59

$

Usually ships in 2-12 days

0

425

Subaru Robin 254-34601-01

SIDE COVER 1 CP

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$43.40

$

Usually ships in 2-12 days

0

426

Subaru Robin 253-34602-13

SIDE COVER 2

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$27.21

$

Usually ships in 2-12 days

0

427

Subaru Robin 001-70060-80

BOLT,CROSS RECESS

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

428

Subaru Robin 001-11062-00

BOLT AND WASHER AY

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

429

Subaru Robin 003-21060-00

SPRING WASHER

Note: Start Date: 8/27/1997 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0
