EH172D62072 (EH17-2) - Subaru Robin Engine 100 Crankcase Parts Diagram

Engine

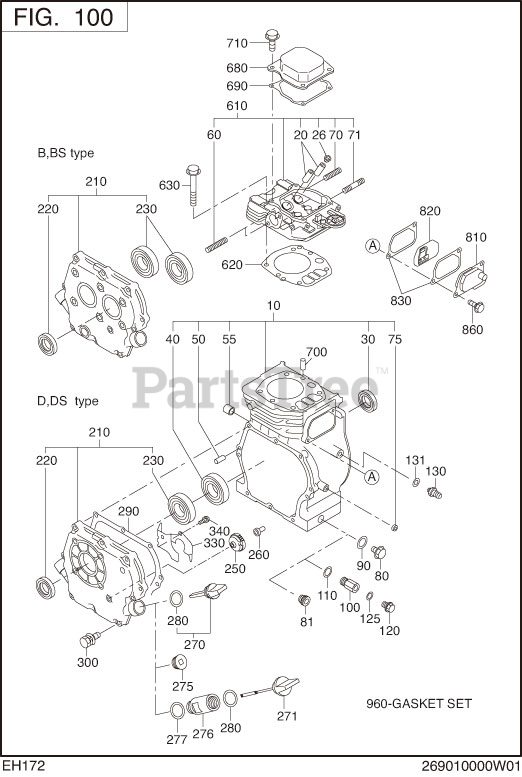

100 Crankcase Parts Diagram

  • Title

10

269-10101-21

CRANK CASE CP

Note: End Code: 7030. Start Date: 8/24/2005 0:00:00. Start Date: 3/31/2006 0:00:00. Interchangable with 269-10101-31.

$

$

Not available

10

Subaru Robin 269-10101-31

CRANK CASE CP

Note: Start Code: 7031. Start Date: 4/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00.

$486.91

$

Usually ships in 2-12 days

0

20

Subaru Robin 237-14202-03

VALVE GUIDE

Note: Start Date: 12/31/9999 0:00:00. Remarks: 5.5DX9.5DX27L.

$37.99

$

Usually ships in 2-12 days

0

26

Subaru Robin 277-16010-01

STEM SEAL

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.5DX9.5DX15DX7.8B.

$7.49

$

In Stock, only 1 left!

0

30

Subaru Robin 044-02500-70

OIL SEAL

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 25DX38DX7B. Interchangable with 044-02500-10.

$12.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-02500-10

BALL BEARING

Note: End Code: 7030. Start Date: 8/24/2005 0:00:00. Start Date: 3/31/2006 0:00:00. Remarks: 25DX52DX15B.

$18.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 031-00600-20

DOWEL PIN

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX14.5L.

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 010-50601-31

STUD

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X33L.

$1.49

$

Usually ships in 2-12 days

0

71

Subaru Robin 001-39066-00

STUD

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

75

Subaru Robin 044-00800-10

OIL SEAL

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX14DX4B.

$7.49

$

Usually ships in 2-12 days

0

80

Subaru Robin 040-11400-30

PLUG

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M14X1.5X20DX12L.

$3.49

$

In Stock, only 1 left!

0

90

Subaru Robin 021-11400-20

GASKET

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 14.1DX19DX2.3T.

$0.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 253-11014-01

MAIN BEARING COVER C

Note: End Code: 7030. Start Date: 8/24/2005 0:00:00. Start Date: 3/31/2006 0:00:00.

$154.64

$

Usually ships in 2-12 days

0

210

253-11014-21

MAINBEARING COVER CP

Note: Start Code: 7031. Start Date: 4/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

220

Subaru Robin 044-02501-60

OIL SEAL

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 25DX41DX7B.

$14.99

$

In Stock, only 1 left!

0

230

Subaru Robin 060-02500-10

BALL BEARING

Note: End Code: 7030. Start Date: 8/24/2005 0:00:00. Start Date: 3/31/2006 0:00:00. Remarks: 25DX52DX15B.

$18.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 227-45003-01

GOVERNOR GEAR CP

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 52DX26T N=25.

$44.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX9DX16DX26L.

$11.99

$

Usually ships in 2-12 days

0

270

Subaru Robin 282-63601-H1

OIL GAUGE CP

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M18X1.5,L=59+23.

$8.99

$

Usually ships in 2-12 days

0

280

Subaru Robin X21-31600-20

GASKET

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 16DX23DX1.2T RUBBER.

$0.99

$

In Stock, Qty 9

0

290

Subaru Robin 269-16001-03

GASKET (BEARING COV)

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3.

$14.99

$

In Stock, only 2 left!

0

300

Subaru Robin 013-00600-40

BOLT AND WASHER AY

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X30L W/SW.

$1.49

$

Usually ships in 2-12 days

0

330

Subaru Robin 253-17501-13

SHELTER PLATE

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

340

Subaru Robin 004-35051-00

SCREW & WASHER AY

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

610

269-13002-21

CYLINDER HEAD CP

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

620

Subaru Robin 253-15001-33

GASKET (HEAD)

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$9.49

$

Usually ships in 2-12 days

0

630

Subaru Robin 011-00801-00

FLANGE BOLT

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX65L.

$6.49

$

In Stock, only 3 left!

0

680

Subaru Robin 269-15503-03

ROCKER COVER

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.53

$

Usually ships in 2-12 days

0

690

Subaru Robin 269-16007-03

GASKET(ROCKER COVER)

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=3.5.

$15.99

$

Usually ships in 2-12 days

0

700

Subaru Robin 031-00600-20

DOWEL PIN

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX14.5L.

$0.99

$

Usually ships in 2-12 days

0

710

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 2 left!

0

810

Subaru Robin 253-14301-11

BREATHER COVER CP

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.49

$

Usually ships in 2-12 days

0

820

Subaru Robin 253-14401-11

BREATHER PLATE CP

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.49

$

Usually ships in 2-12 days

0

830

Subaru Robin 253-16006-33

GASKET(BREATHER CVR)

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.2.

$1.99

$

Usually ships in 2-12 days

0

860

Subaru Robin 011-00600-30

FLANGE BOLT

Note: Start Date: 8/24/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX14L.

$2.99

$

In Stock, only 3 left!

0

960

Subaru Robin 269-99001-07

GASKET SET

Note: Start Date: 12/31/9999 0:00:00.

$53.99

$

Usually ships in 2-12 days

0
