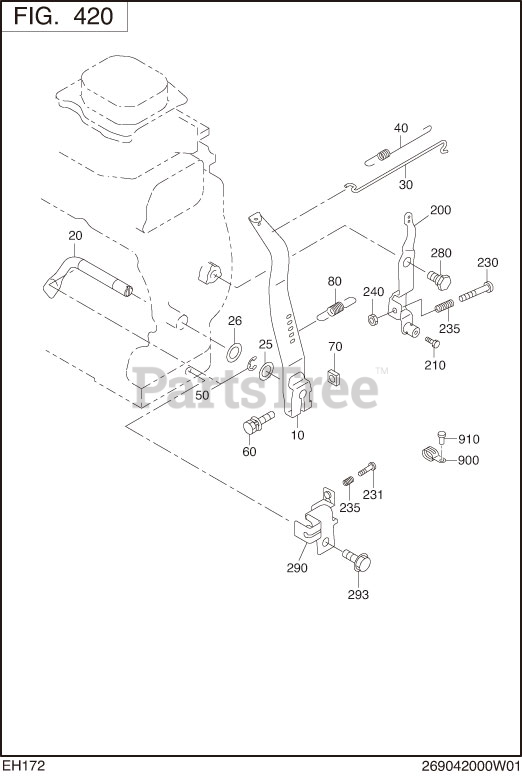

EH172BS7100 (EH17-2) - Subaru Robin Engine 420 Governor Parts Diagram

Engine

420 Governor Parts Diagram

  • Title

10

Subaru Robin 253-42301-23

GOVERNOR LEVER

$19.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 227-42201-03

GOVERNOR SHAFT

Note: Start Code: 5274.

$21.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 227-42201-03

GOVERNOR SHAFT

Note: Start Code: 5226. End Code: 5273.

$21.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 227-42201-03

GOVERNOR SHAFT

Note: End Code: 5225.

$21.99

$

Usually ships in 2-12 days

0

25

Subaru Robin 003-11080-00

WASHER

$0.99

$

Usually ships in 2-12 days

0

26

Subaru Robin 003-11080-00

WASHER

Note: Start Code: 5015.

$0.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 253-42701-01

GOVERNOR ROD CP

Note: Start Code: 5226.

$6.99

$

In Stock, only 1 left!

0

30

Subaru Robin 253-42701-01

GOVERNOR ROD CP

Note: End Code: 5225.

$6.99

$

In Stock, only 1 left!

0

40

Subaru Robin 253-42801-03

ROD SPRING

Note: End Code: 5225. Remarks: 9DX0.7DX91L N=8.5.

$6.49

$

In Stock, only 1 left!

0

50

Subaru Robin 003-13060-00

CLIP

Note: Start Code: 5274.

$0.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 003-13060-00

CLIP

Note: Start Code: 5226. End Code: 5273.

$0.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 003-13060-00

CLIP

Note: End Code: 5225.

$0.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 001-14063-00

BOLT AND WASHER AY

$0.99

$

In Stock, only 3 left!

0

70

Subaru Robin 018-60600-20

NUT

Note: Remarks: M6X1.0X4.9H SQUARE.

$0.99

$

In Stock, Qty 7

0

80

Subaru Robin 252-42503-23

GOVERNOR SPRING

Note: Remarks: 6.8DX0.9DX47L N=10.5.

$6.49

$

Usually ships in 2-12 days

0

200

Subaru Robin 252-43402-30

SPEED CONTROL AY

Note: Start Code: 5448.

$30.99

$

Usually ships in 2-12 days

0

200

Subaru Robin 252-43402-20

SPEED CONTROL AY

Note: End Code: 5447. Interchangable with 252-43402-30.

$30.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 011-60400-30

BOLT

Note: Remarks: M4X0.7X8L.

$0.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 004-31052-50

SCREW,PANHEAD

$0.99

$

Usually ships in 2-12 days

0

231

Subaru Robin 004-31042-50

SCREW

$0.99

$

Usually ships in 2-12 days

0

235

Subaru Robin 230-49003-13

SPRING (ADJUSTER)

Note: Remarks: 6DX0.6DX17L N=7.

$0.99

$

Usually ships in 2-12 days

0

240

Subaru Robin 002-17050-00

NUT

$0.99

$

Usually ships in 2-12 days

0

280

Subaru Robin 226-43101-01

LINK PIVOT CP

$20.99

$

Usually ships in 2-12 days

0

290

252-44201-11

WIRE BRACKET CP

Note: End Code: 7305.

$

$

Not available

293

Subaru Robin 011-00600-30

FLANGE BOLT

Note: Remarks: M6X1.0X14DX14L.

$2.99

$

In Stock, only 3 left!

0
