EH172BS0260 (EH17-2) - Subaru Robin Engine 720 Electric Device Parts Diagram

Engine

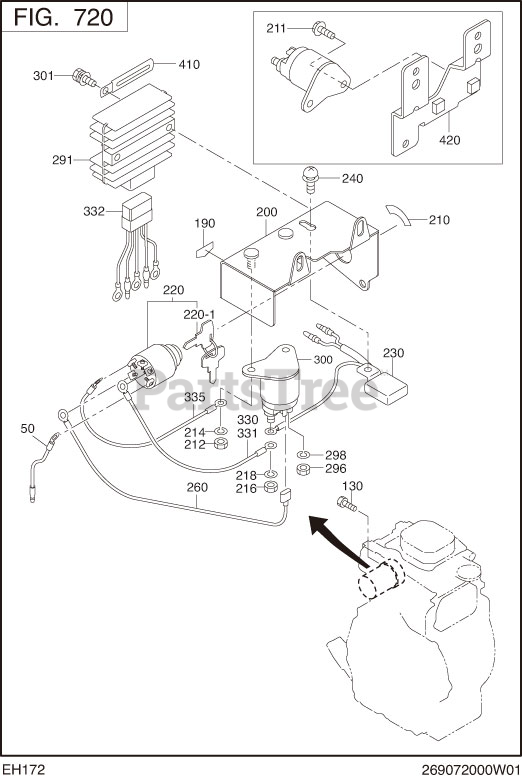

720 Electric Device Parts Diagram

  • Title

130

Subaru Robin 001-14083-50

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

190

Subaru Robin 073-20044-80

LABEL(BATTERY)

$6.49

$

Usually ships in 2-12 days

0

200

253-75116-01

CONTROL BOX CP

Note: Start Code: 5240.

$

$

Not available

200

253-75115-01

CONTROL BOX CP

Note: End Code: 5239.

$

$

Not available

210

Subaru Robin 073-20044-60

LABEL(STARTER SWITCH

$5.49

$

Usually ships in 2-12 days

0

212

Subaru Robin 002-17050-00

NUT

$0.99

$

Usually ships in 2-12 days

0

214

Subaru Robin 003-20050-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

216

Subaru Robin 002-27060-00

NUT

$0.99

$

In Stock, Qty 9

0

218

Subaru Robin 003-20060-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 066-00003-30

SWITCH
(Superseded to 066-00003-31)

$150.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 066-00099-80

KEY,SWITCH

Note: Remarks: MARK 103.

$40.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 232-71401-01

DIODE RECTIFIER CP

$54.99

$

Usually ships in 2-12 days

0

240

Subaru Robin 004-35061-00

SCREW AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

296

Subaru Robin 002-27060-00

NUT

$0.99

$

In Stock, Qty 9

0

298

Subaru Robin 003-20060-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 066-10000-10

MAGNETIC SWITCH

$138.99

$

Usually ships in 2-12 days

0

301

Subaru Robin 001-11061-60

BOLT AND WASHER AY

Note: End Code: 5239.

$0.99

$

Usually ships in 2-12 days

0
