EH172B00000 (EH17-2) - Subaru Robin Engine 101 Crankcase Parts Diagram

Engine

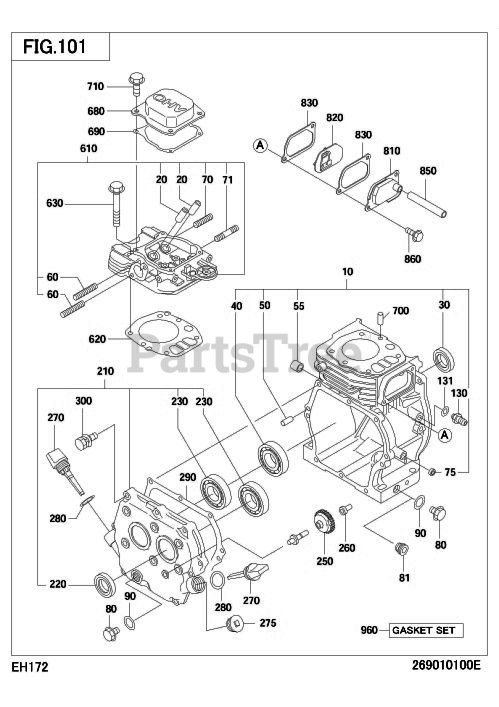

101 Crankcase Parts Diagram

  • Title
10

269-10101-11

CRANK CASE CP

Note: Start Code: 5054.

$

$

Not available

10

Subaru Robin 269-10101-01

CRANK CASE CP

Note: End Code: 5053.

$470.46

$

Usually ships in 2-12 days

0

20

Subaru Robin 237-14202-03

VALVE GUIDE

Note: Remarks: OVER SIZE.

$37.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 044-02500-70

OIL SEAL

Note: Remarks: 25X38X7. Interchangable with 044-02500-10.

$12.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-02500-10

BALL BEARING

Note: Remarks: BB6205C3.

$18.99

$

Usually ships in 2-12 days

0

$0.99

$

Usually ships in 2-12 days

0

$1.99

$

Usually ships in 2-12 days

0

$1.49

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

75

Subaru Robin 044-00800-10

OIL SEAL

Note: Remarks: VC8144.

$7.49

$

Usually ships in 2-12 days

0

$3.49

$

In Stock, only 2 left!

0

$0.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 253-10911-01

MAIN BEARING COVER C

$160.61

$

Usually ships in 2-12 days

0

220

Subaru Robin 044-02500-70

OIL SEAL

Note: Remarks: 25X38X7. Interchangable with 044-02500-10.

$12.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 060-02500-10

BALL BEARING

Note: Remarks: BB6205C3.

$18.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 227-45003-01

GOVERNOR GEAR CP

$44.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

$11.99

$

Usually ships in 2-12 days

0

$8.99

$

Usually ships in 2-12 days

0

$0.99

$

In Stock, Qty 9

0

290

Subaru Robin 253-16002-13

GASKET (BEARING COV)

Note: Start Code: 4596.

$14.99

$

In Stock, only 2 left!

0

290

Subaru Robin 253-16002-03

GASKET (BEARING COV)

Note: End Code: 4595.

$14.99

$

In Stock, only 2 left!

0

300

Subaru Robin 013-00600-40

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

610

Subaru Robin 269-13001-01

CYLINDER HEAD CP

$317.99

$

Usually ships in 2-12 days

0

620

$9.49

$

Usually ships in 2-12 days

0

630

$6.49

$

In Stock, only 3 left!

0

680

Subaru Robin 253-15501-03

ROCKER COVER

Note: End Code: 4383.

$12.53

$

Usually ships in 2-12 days

0

680

Subaru Robin 269-15503-03

ROCKER COVER

Note: Start Code: 4384.

$12.53

$

Usually ships in 2-12 days

0

690

Subaru Robin 269-16004-03

GASKET(ROCKER COVER)

$12.99

$

Usually ships in 2-12 days

0

$0.99

$

Usually ships in 2-12 days

0

710

$2.49

$

In Stock, only 2 left!

0

810

Subaru Robin 253-14301-11

BREATHER COVER CP

$9.49

$

Usually ships in 2-12 days

0

820

Subaru Robin 253-14401-11

BREATHER PLATE CP

$9.49

$

Usually ships in 2-12 days

0

830

Subaru Robin 253-16006-33

GASKET(BREATHER CVR)

$1.99

$

Usually ships in 2-12 days

0

850

Subaru Robin 085-10800-00

RUBBER PIPE

Note: Remarks: 8X11XM.

$23.99

$

In Stock, only 1 left!

0

860

$2.99

$

In Stock, only 3 left!

0

960

$53.99

$

Usually ships in 2-12 days

0
