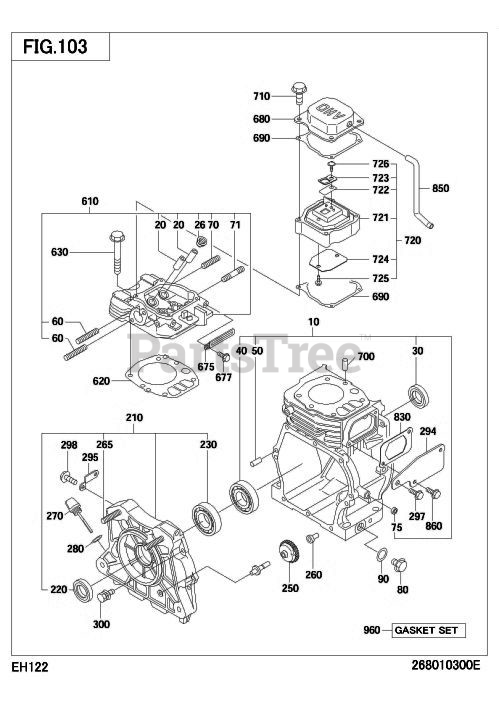

EH122D46010 (EH12-2) - Subaru Robin Rammer Engine 103 Crankcase Parts Diagram

Rammer Engine

103 Crankcase Parts Diagram

  • Title
10

Subaru Robin 252-10301-11

CRANK CASE CP

Note: End Code: 4442.

$430.15

$

Usually ships in 2-12 days

0

10

Subaru Robin 252-10301-31

CRANK CASE CP

Note: Start Code: 4931.

$430.15

$

Usually ships in 2-12 days

0

10

Subaru Robin 252-10301-21

CRANK CASE CP

Note: Start Code: 4443. End Code: 4930.

$430.15

$

Usually ships in 2-12 days

0

20

Subaru Robin 237-14202-03

VALVE GUIDE

Note: Remarks: OVER SIZE.

$37.99

$

Usually ships in 2-12 days

0

$7.49

$

In Stock, only 1 left!

0

30

Subaru Robin 044-02501-50

OIL SEAL

Note: Remarks: 25X38X7.

$12.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-02501-00

BALL BEARING

Note: Start Code: 4443.

$11.93

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-02500-10

BALL BEARING

Note: End Code: 4442. Remarks: BB6205C3.

$18.99

$

Usually ships in 2-12 days

0

$0.99

$

Usually ships in 2-12 days

0

$6.49

$

Usually ships in 2-12 days

0

$1.49

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

75

Subaru Robin 044-00800-10

OIL SEAL

Note: Remarks: VC8144.

$7.49

$

Usually ships in 2-12 days

0

$3.49

$

In Stock, only 3 left!

0

$0.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 252-11101-21

MAIN BEARING COVER C

$305.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 044-02501-60

OIL SEAL

Note: Remarks: 25X41.24X7.

$14.99

$

In Stock, only 1 left!

0

230

Subaru Robin 060-02500-10

BALL BEARING

Note: Remarks: BB6205C3.

$18.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 227-45003-01

GOVERNOR GEAR CP

$44.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

$11.99

$

Usually ships in 2-12 days

0

$7.86

$

Usually ships in 2-12 days

0

270

Subaru Robin 268-63603-03

OIL GAUGE

Note: Start Code: 4780.

$19.99

$

Usually ships in 2-12 days

0

270

Subaru Robin 252-63601-01

OIL GAUGE CP

Note: End Code: 4779.

$19.99

$

Usually ships in 2-12 days

0

$0.99

$

In Stock, Qty 7

0

294

Subaru Robin 252-17002-01

BRACKET(M.B.C) CP

$9.78

$

Usually ships in 2-12 days

0

295

Subaru Robin 252-17001-01

SUPPORT(M.B.C)

$4.99

$

Usually ships in 2-12 days

0

297

Subaru Robin 001-13081-60

BOLT & WASHER AY

$0.99

$

Usually ships in 2-12 days

0

298

Subaru Robin 001-13081-60

BOLT & WASHER AY

$0.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 013-00602-00

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

610

Subaru Robin 268-13101-01

CYLINDER HEAD CP

Note: Start Code: 4688.

$178.69

$

Usually ships in 2-12 days

0

610

Subaru Robin 268-13003-01

CYLINDER HEAD CP

Note: End Code: 4687.

$

$

Not available

620

$9.49

$

Usually ships in 2-12 days

0

630

$6.49

$

In Stock, only 3 left!

0

$3.49

$

Usually ships in 2-12 days

0

677

$2.49

$

In Stock, only 4 left!

0

680

$6.65

$

Usually ships in 2-12 days

0

690

Subaru Robin 269-16004-03

GASKET(ROCKER COVER)

$12.99

$

Usually ships in 2-12 days

0

$0.99

$

Usually ships in 2-12 days

0

710

$2.99

$

Usually ships in 2-12 days

0

720

Subaru Robin 252-15601-20

SPACER(BREATHER) AY

Note: Start Code: 4292.

$41.29

$

Usually ships in 2-12 days

0

720

Subaru Robin 252-15601-10

SPACER(BREATHER)AY

Note: End Code: 4291.

$41.29

$

Usually ships in 2-12 days

0

721

Subaru Robin 252-15601-13

SPACER(BREATHER)

Note: Start Code: 4292.

$29.78

$

Usually ships in 2-12 days

0

721

Subaru Robin 252-15601-03

SPACER(BREATHER)

Note: End Code: 4291.

$48.18

$

Usually ships in 2-12 days

0

722

$5.54

$

Usually ships in 2-12 days

0

723

Subaru Robin 252-16101-03

RETAINER PLATE

$1.99

$

Usually ships in 2-12 days

0

724

Subaru Robin 252-14401-23

PLATE

Note: Start Code: 4292.

$3.49

$

Usually ships in 2-12 days

0

724

Subaru Robin 252-14401-13

PLATE

Note: End Code: 4291.

$3.49

$

Usually ships in 2-12 days

0

725

$2.49

$

Usually ships in 2-12 days

0

726

Subaru Robin 004-35061-20

SCREW & WASHER AY

$0.99

$

Usually ships in 2-12 days

0

830

Subaru Robin 268-16201-03

GASKET(BREATHER CVR)

Note: Start Code: 4262.

$2.99

$

Usually ships in 2-12 days

0

830

Subaru Robin 253-16006-33

GASKET(BREATHER CVR)

Note: End Code: 4261.

$1.99

$

Usually ships in 2-12 days

0

850

$6.99

$

In Stock, only 1 left!

0

860

Subaru Robin 001-13061-60

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

960

$53.99

$

Usually ships in 2-12 days

0
