EH092DN8510 (EH092) - Subaru Robin Rammer Engine 205 Crankshaft Parts Diagram

Rammer Engine

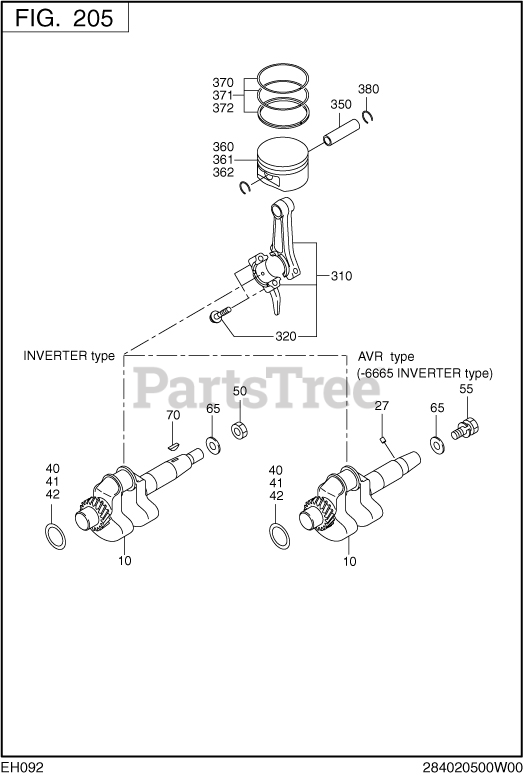

205 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 284-20501-11

CRANKSHAFT CP

Note: End Code: 6665. Start Date: 9/2/2003 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: L=154.

$159.50

$

Usually ships in 2-12 days

0

10

Subaru Robin 284-20601-01

CRANKSHAFT CP

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=171.

$203.75

$

Usually ships in 2-12 days

0

27

Subaru Robin 031-00400-10

DOWEL PIN

Note: End Code: 6665. Start Date: 9/2/2003 0:00:00. Start Date: 3/31/2005 0:00:00.

$0.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-02001-00

SPACER

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20.5DX28DX0.8T.

$3.49

$

Usually ships in 2-12 days

0

41

Subaru Robin 023-02001-10

SPACER

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20.5DX28DX1.0T.

$2.49

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-02001-20

SPACER

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20.5DX28DX1.2T.

$3.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18140-00

NUT

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

55

Subaru Robin 001-14082-50

BOLT AND WASHER AY

Note: End Code: 6665. Start Date: 9/2/2003 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: M8X1.25X25L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

65

Subaru Robin 020-00801-40

WASHER

Note: End Code: 6665. Start Date: 9/2/2003 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: 8.5DX28DX4.5T.

$3.49

$

Usually ships in 2-12 days

0

65

Subaru Robin 020-01500-40

WASHER

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 15.3DX25DX2.5T.

$1.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 005-32031-01

WOODRUFF KEY

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 284-22501-30

CONNECTING ROD AY

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 66CDX18B 21D-11D.

$86.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 284-23001-03

CONNECTING ROD BOLT

Note: Start Date: 5/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.8X11DX25L.

$1.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 230-23301-03

PISTON PIN

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11DX8DX40L.

$3.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 284-23401-H3

PISTON

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD(51DX31H).

$102.99

$

Usually ships in 2-12 days

0

361

Subaru Robin 284-23402-H3

PISTON

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.25 O.S.(51DX31H).

$107.99

$

Usually ships in 2-12 days

0

362

Subaru Robin 284-23403-H3

PISTON

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.50 O.S.(51DX31H).

$139.99

$

Usually ships in 2-12 days

0

370

Subaru Robin 284-23501-07

PISTON RING SET

Note: Start Date: 9/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD(51D).

$55.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 274-23502-07

PISTON RING SET

Note: Start Date: 9/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.25 O.S.(51D).

$58.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 274-23503-07

PISTON RING SET

Note: Start Date: 9/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.50 O.S.(51D).

$58.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51100-10

CLIP

Note: Start Date: 9/2/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12DX1D.

$0.99

$

In Stock, only 1 left!

0
