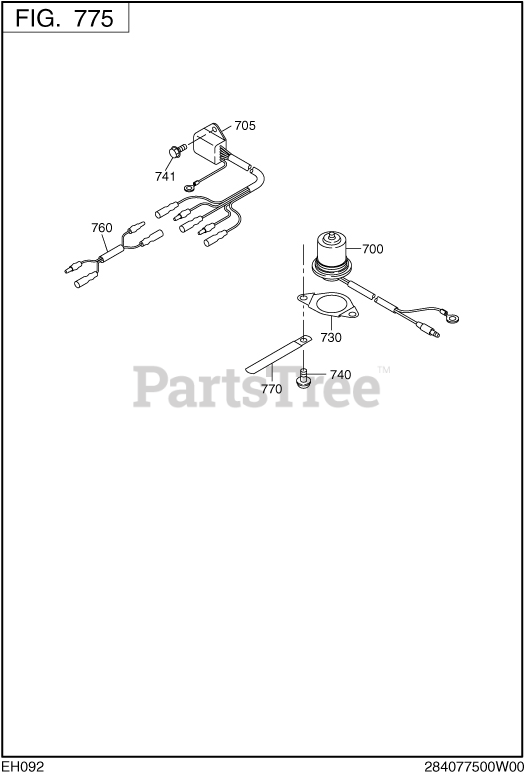

EH092DN8110 (EH092) - Subaru Robin Rammer Engine 775 Electric Device Parts Diagram

Rammer Engine

775 Electric Device Parts Diagram

  • Title

700

Subaru Robin 230-76301-11

OIL SENSOR CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$73.99

$

Usually ships in 2-12 days

0

705

Subaru Robin KU3-11041-01

FLOAT C/U CP 2

Note: End Code: 7091. Start Date: 9/11/2003 0:00:00. Start Date: 5/31/2006 0:00:00.

$

$

Not available

730

Subaru Robin 230-75801-03

SENSOR RETAINER

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

0

740

Subaru Robin 004-35061-00

SCREW AND WASHER AY

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X10L W/SW.

$0.99

$

Usually ships in 2-12 days

0

741

Subaru Robin 011-00600-20

FLANGE BOLT

Note: End Code: 7091. Start Date: 9/11/2003 0:00:00. Start Date: 5/31/2006 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 2 left!

0

760

Subaru Robin 284-79591-11

OILSENSOR HARNESS CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.50

$

Usually ships in 2-12 days

0

770

Subaru Robin 226-75101-03

CLAMP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.5DX10BX55LX0.7T.

$1.49

$

Usually ships in 2-12 days

0
