Subaru Robin EH092DN8110 (EH092) - Subaru Robin Rammer Engine 105 Crankcase Parts Lookup with Diagrams

10

Subaru Robin 284-10103-01

CRANKCASE CP

Note: End Code: 6879. Start Date: 9/11/2003 0:00:00. Start Date: 10/31/2005 0:00:00. Interchangable with 284-10103-11.

$285.91

$

Usually ships in 2-12 days

10

Subaru Robin 284-10103-11

CRANKCASE CP

Note: Start Code: 6880. Start Date: 11/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00.

$285.91

$

Usually ships in 2-12 days

20

Subaru Robin 237-14202-03

VALVE GUIDE

Note: Start Date: 9/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.5DX9.5DX27L.

$37.99

$

Usually ships in 2-12 days

26

Subaru Robin 277-16010-01

STEM SEAL

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.5DX9.5DX15DX7.8B.

$7.49

$

In Stock, only 1 left!

30

Subaru Robin 044-02000-70

OIL SEAL

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20DX32DX6B.

$7.99

$

Usually ships in 2-12 days

40

Subaru Robin 060-02001-40

BALL BEARING

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20DX42DX12B.

$15.99

$

Usually ships in 2-12 days

50

Subaru Robin 031-00600-20

DOWEL PIN

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX14.5L.

$0.99

$

Usually ships in 2-12 days

51

Subaru Robin 277-15011-03

PIPE KNOCK

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.3DX8.5DX14L.

$1.99

$

Usually ships in 2-12 days

70

Subaru Robin 010-50604-20

STUD

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X84L.

$1.99

$

Usually ships in 2-12 days

75

Subaru Robin 044-00600-20

OIL SEAL

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX10DX2.5B.

$6.99

$

Usually ships in 2-12 days

80

Subaru Robin 040-11400-30

PLUG

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M14X1.5X20DX12L.

$3.49

$

In Stock, only 3 left!

90

Subaru Robin 021-11400-20

GASKET

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 14.1DX19DX2.3T.

$0.99

$

Usually ships in 2-12 days

210

Subaru Robin 284-11201-21

MAINBEARING COVER CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$105.73

$

Usually ships in 2-12 days

225

Subaru Robin 230-17102-03

PLUG (RUBBER)

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 32DX5T.

$2.49

$

Usually ships in 2-12 days

230

Subaru Robin 060-02001-40

BALL BEARING

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 20DX42DX12B.

$15.99

$

Usually ships in 2-12 days

250

Subaru Robin 284-45003-01

GOVERNOR GEAR CP

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 44DX20T N=26.

$17.99

$

Usually ships in 2-12 days

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

Note: Start Date: 6/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX9DX16DX26L.

$11.99

$

Usually ships in 2-12 days

270

Subaru Robin 230-63601-11

OIL GAUGE CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M18X1.5 L=38+18.

$3.49

$

Usually ships in 2-12 days

280

Subaru Robin 021-31600-20

GASKET

Note: Start Date: 7/1/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 16DX23DX1.2T RUBBER. Interchangable with X21-31600-20.

$0.99

$

In Stock, Qty 7

290

Subaru Robin 284-16003-03

GASKET(BEARING COVER

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3.

$3.49

$

Usually ships in 2-12 days

300

Subaru Robin 011-00601-01

FLANGE BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX28L.

$2.49

$

Usually ships in 2-12 days

610

Subaru Robin 284-13003-01

CYLINDER HEAD CP

Note: End Code: 6971. Start Date: 9/11/2003 0:00:00. Start Date: 1/31/2006 0:00:00.

$279.99

$

Usually ships in 2-12 days

610

Subaru Robin 284-13003-11

CYLINDER HEAD CP

Note: Start Code: 6972. Start Date: 2/1/2006 0:00:00. Start Date: 12/31/9999 0:00:00.

$279.99

$

Usually ships in 2-12 days

620

Subaru Robin 284-15001-13

GASKET (HEAD)

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$9.99

$

Usually ships in 2-12 days

630

Subaru Robin 011-00802-10

FLANGE BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16DX55L.

$2.99

$

Usually ships in 2-12 days

631

Subaru Robin 011-00803-01

FLANGE BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

Usually ships in 2-12 days

632

Subaru Robin 010-00804-20

BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X60L.

$3.99

$

Usually ships in 2-12 days

637

Subaru Robin 020-00802-10

WASHER

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.5DX17DX3.2T.

$1.99

$

Usually ships in 2-12 days

680

Subaru Robin 284-15501-03

ROCKER COVER

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.68

$

Usually ships in 2-12 days

690

Subaru Robin 284-16004-03

GASKET(ROCKER COVER)

Note: End Code: 7395. Start Date: 9/11/2003 0:00:00. Start Date: 3/31/2007 0:00:00. Remarks: T=0.7. Interchangable with 284-16007-03.

$4.49

$

In Stock, only 1 left!

690

Subaru Robin 284-16007-03

GASKET(ROCKER COVER)

Note: Start Code: 7396. Start Date: 4/1/2007 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$4.49

$

In Stock, only 1 left!

700

Subaru Robin 277-15011-03

PIPE KNOCK

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.3DX8.5DX14L.

$1.99

$

Usually ships in 2-12 days

710

Subaru Robin 011-00604-20

FLANGE BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

810

Subaru Robin 284-14301-01

BREATHER COVER CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$5.88

$

Usually ships in 2-12 days

820

Subaru Robin 284-14401-01

BREATHER PLATE CP

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.99

$

Usually ships in 2-12 days

830

Subaru Robin 230-16006-13

GASKET(TAPPET COVER)

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.8.

$2.99

$

Usually ships in 2-12 days

840

Subaru Robin 230-16007-03

GASKET (BREATHER)

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=2.

$1.49

$

Usually ships in 2-12 days

860

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

930

Subaru Robin 33K-58317-03

SPONGE CRANK

Note: Start Date: 9/11/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

960

Subaru Robin 284-99002-17

GASKET SET

Note: Start Date: 9/1/2003 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

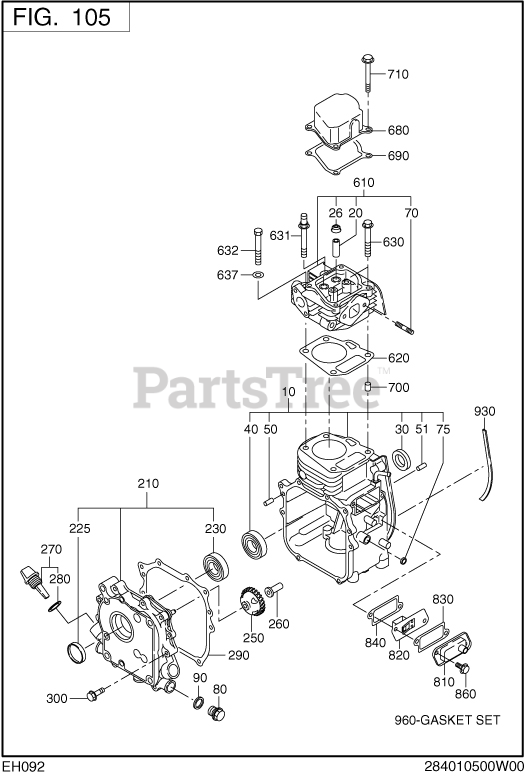

EH092DN8110 (EH092) - Subaru Robin Rammer Engine 105 Crankcase Parts Diagram

105 Crankcase Parts Diagram
