EH092D47030 (EH092) - Subaru Robin Rammer Engine 303 Intake & Exhaust Parts Diagram

Rammer Engine

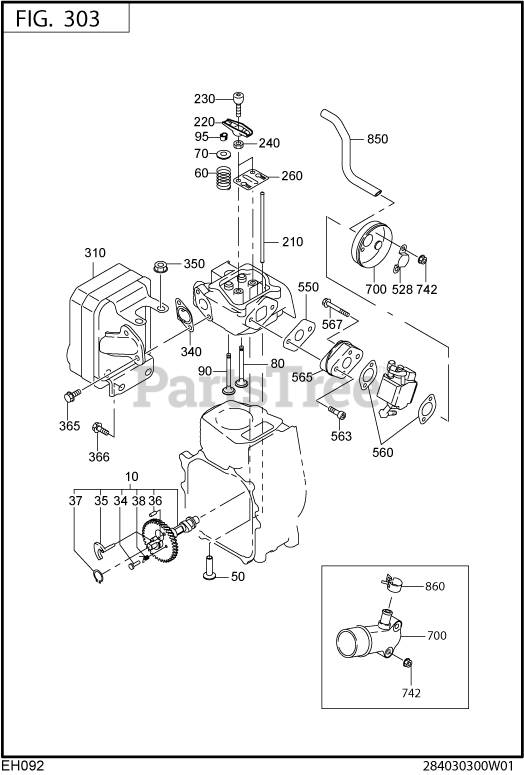

303 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 284-31701-21

CAMSHAFT CP

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=92 63DX6.6B N=38.

$98.04

$

Usually ships in 2-12 days

0

34

Subaru Robin 227-38601-23

PIN(SPRING)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 3.8DX7.5DX14L.

$15.54

$

Usually ships in 2-12 days

0

35

Subaru Robin 284-36401-03

RELEASE LEVER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$28.99

$

Usually ships in 2-12 days

0

36

Subaru Robin 005-19041-00

SPRING PIN

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.4DX10LX0.8T.

$0.99

$

In Stock, only 2 left!

0

37

Subaru Robin 003-15170-00

SNAP RING OUTER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

38

Subaru Robin 274-38701-23

RETURN SPRING

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX0.5DX5.2L N=9.7.

$1.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 274-33301-03

TAPPET

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 17DX8DX32L.

$15.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 274-33601-03

VALVE SPRING

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 17.1DX2DX26.7L N=5.5.

$4.49

$

Usually ships in 2-12 days

0

70

Subaru Robin 274-33702-03

SPRING RETAINER

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

80

Subaru Robin 274-33401-03

INTAKE VALVE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 21DX5.5DX63.6L.

$23.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 274-33501-03

EXHAUST VALVE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 18DX5.5DX63.6L.

$32.99

$

In Stock, only 1 left!

0

95

Subaru Robin 132-10KA0-31

COLLET-VALVE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

In Stock, only 1 left!

0

210

Subaru Robin 274-35301-03

PUSH ROD

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4DX121.6L.

$5.49

$

Usually ships in 2-12 days

0

220

Subaru Robin 274-36003-03

ROCKER ARM

Note: End Code: 7121. Start Date: 2/26/2002 0:00:00. Start Date: 6/30/2006 0:00:00. Interchangable with 284-36001-03.

$8.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 284-36001-03

ROCKER ARM

Note: Start Code: 7122. End Code: 7395. Start Date: 7/1/2006 0:00:00. Start Date: 3/31/2007 0:00:00. Interchangable with 284-36001-13.

$8.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 284-36001-13

ROCKER ARM

Note: Start Code: 7396. Start Date: 4/1/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 269-35801-03

BOLT (PIVOT)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X19L SOCKET H.

$

$

Not available

240

Subaru Robin 017-00600-90

NUT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X0.75X5.1H.

$2.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 274-36501-03

GUIDE PLATE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 284-30102-31

MUFFLER CP

Note: End Code: 7578. Start Date: 2/26/2002 0:00:00. Start Date: 9/30/2007 0:00:00. Interchangable with 284-30106-01.

$222.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 284-30106-01

MUFFLER CP

Note: Start Code: 7579. Start Date: 10/1/2007 0:00:00. Start Date: 12/31/9999 0:00:00.

$222.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 284-35201-03

GASKET (EXHAUST)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$6.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$1.99

$

In Stock, only 4 left!

0

365

Subaru Robin 011-00604-60

FLANGE BOLT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX14L.

$2.99

$

Usually ships in 2-12 days

0

366

Subaru Robin 001-14081-60

BOLT AND WASHER AY

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16L W/W,SW.

$1.49

$

Usually ships in 2-12 days

0

528

Subaru Robin 284-37001-03

PLATE 1

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

550

Subaru Robin 284-36501-03

GASKET (INTAKE)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$2.49

$

Usually ships in 2-12 days

0

560

Subaru Robin 106-65002-03

GASKET(CARB.)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3 20D 5.5DX31P.

$0.99

$

In Stock, Qty 8

0

563

Subaru Robin 011-90600-90

BOLT(SOCKET HEAD)

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X20L.

$1.99

$

In Stock, only 4 left!

0

565

Subaru Robin 284-33101-03

INTAKE FLANGE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$23.99

$

Usually ships in 2-12 days

0

567

Subaru Robin 010-00501-10

BOLT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

700

Subaru Robin 284-38101-03

INTAKE PIPE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00.

$70.99

$

Usually ships in 2-12 days

0

742

Subaru Robin 017-60500-10

SELF LOCK NUT

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.8X11DX6H.

$2.49

$

Usually ships in 2-12 days

0

850

Subaru Robin 284-16103-03

RUBBER PIPE

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8DX11D FORMED.

$6.89

$

Usually ships in 2-12 days

0

860

Subaru Robin 056-11200-40

HOSE CLAMP

Note: Start Date: 2/26/2002 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12DX8BX0.8T.

$1.99

$

Usually ships in 2-12 days

0
