EH092D20030 (EH092) - Subaru Robin Rammer Engine 770 Electric Device Parts Diagram

Rammer Engine

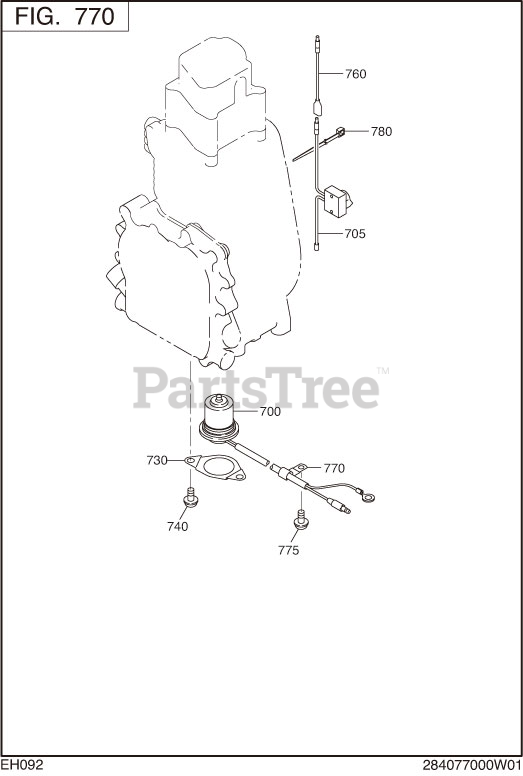

770 Electric Device Parts Diagram

  • Title

700

Subaru Robin 230-76301-11

OIL SENSOR CP

$80.99

$

Usually ships in 2-12 days

0

705

KU3-11072-01

FLOAT C/U CP6

Note: Start Code: 6666.

$

$

Not available

705

Subaru Robin KU3-11041-01

FLOAT C/U CP 2

Note: End Code: 6665.

$

$

Not available

730

Subaru Robin 230-75801-03

SENSOR RETAINER

$4.99

$

Usually ships in 2-12 days

0

740

Subaru Robin 004-35061-00

SCREW AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

760

Subaru Robin 214-73122-01

WIRE 22 CP

Note: End Code: 6665. Remarks: L=85 BLACK.

$5.49

$

Usually ships in 2-12 days

0

770

Subaru Robin 206-75501-01

CLAMP CP

Note: Start Code: 6666. Remarks: 10DXM6X12BX0.6T.

$3.99

$

Usually ships in 2-12 days

0

775

Subaru Robin 011-00600-60

FLANGE BOLT

Note: Start Code: 6666. Remarks: M6X1.0X14DX8L.

$0.99

$

Usually ships in 2-12 days

0

780

Subaru Robin 056-30000-20

WIRE BAND

Note: End Code: 6665. Remarks: 2.5BX1.2TX100L.

$1.99

$

Usually ships in 2-12 days

0
