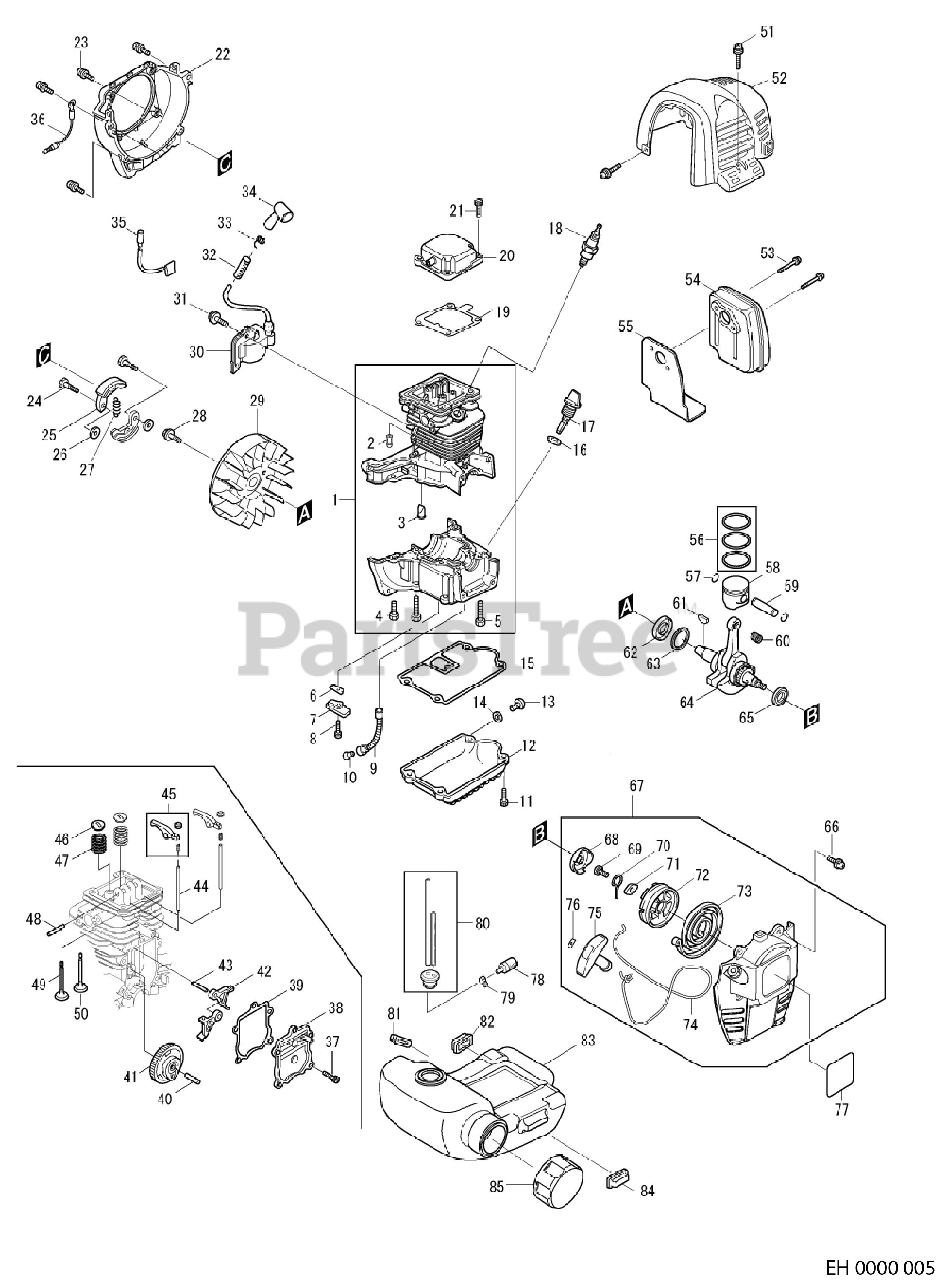

EH035V2B401 (EH035) - Subaru Robin Engine Engine Parts Diagram

Engine

Engine Parts Diagram

  • Title
1

593-10380-02

CYLINDER BLOCK SET

Note: Includes ITEMS 2-5

$

$

Not available

2

424200-2

SPACER

$

$

Not available

3

424201-0

VALVE, CHECK

$

$

Not available

4

266812-3

BOLT - M5X16

$

$

Not available

5

266573-5

BOLT - M5X33

$

$

Not available

6

346083-9

LEAD VALVE

$

$

Not available

7

Subaru Robin 593-15013-00

RETAINER PLATE

$4.49

$

Usually ships in 2-12 days

0

8

266810-7

BOLT - M4X10

$

$

Not available

$17.99

$

Usually ships in 2-12 days

0

10

325666-8

WEIGHT

$

$

Not available

11

266811-5

BOLT - M5X14

$

$

Not available

$13.26

$

Usually ships in 2-12 days

0

13

$0.99

$

Usually ships in 2-12 days

0

14

346305-7

GASKET

$

$

Not available

$13.99

$

In Stock, only 1 left!

0

16

424100-6

GASKET

$

$

Not available

17

$11.99

$

Usually ships in 2-12 days

0

18

Subaru Robin 168401-9

PLUG, SPARK -CMR6A

$40.99

$

Usually ships in 2-12 days

0

19

Subaru Robin 593-15016-00

GASKET, ROCKER COVER

$9.99

$

In Stock, only 1 left!

0

20

$13.26

$

Usually ships in 2-12 days

0

21

266811-5

BOLT - M5X14

$

$

Not available

22

318614-4

HOUSING, BLOWER

$

$

Not available

23

Subaru Robin 266813-1

BOLT - M5X16

$2.99

$

Usually ships in 2-12 days

0

24

Subaru Robin 266800-0

BOLT - M8X24

$

$

Currently unavailable

25

168563-3

SHOE, CLUTCH

$

$

Not available

26

$3.99

$

Usually ships in 2-12 days

0

27

Subaru Robin 531-80040-10

SPRING, CLUTCH

$3.49

$

Usually ships in 2-12 days

0

28

265577-4

BOLT - M6X16

$

$

Not available

$112.73

$

Usually ships in 2-12 days

0

30

Subaru Robin 593-70120-10

COIL, IGNITION

$176.59

$

Usually ships in 2-12 days

0

31

011-90499-70

BOLT - M4X20

$

$

Not available

32

444021-6

TUBE

$

$

Not available

33

Subaru Robin 324891-8

TERMINAL, SPARK PLUG CAP

$4.99

$

Usually ships in 2-12 days

0

34

$5.49

$

Usually ships in 2-12 days

0

35

638665-4

LEAD UNIT

$

$

Not available

36

638784-6

WIRE

$

$

Not available

37

266811-5

BOLT - M5X14

$

$

Not available

38

Subaru Robin 593-15015-00

COVER, CAM GEAR

$7.29

$

Usually ships in 2-12 days

0

39

Subaru Robin 593-15017-00

GASKET, COVER CAM GEAR

$15.99

$

In Stock, only 1 left!

0

40

268238-5

PIN - 5X21.8

$

$

Not available

41

$119.99

$

Usually ships in 2-12 days

0

$13.99

$

Usually ships in 2-12 days

0

43

Subaru Robin 268239-3

PIN - 4×15.8

$

$

Currently unavailable

44

$

$

Currently unavailable

45

125554-7

ROCKER ARM ASSY

$

$

Not available

46

Subaru Robin 325912-9

RETAINER, SPRING

$

$

Currently unavailable

47

234181-0

SPRING - 13

$

$

Not available

48

256200-2

PIN - 5×31.8

$

$

Not available

49

Subaru Robin 325913-7

VALVE, EXHAUST

$23.99

$

Usually ships in 2-12 days

0

50

325914-5

VALVE, INTAKE

$

$

Not available

51

266808-4

SCREW - M5X12

$

$

Not available

52

Subaru Robin 593-55022-00

COVER, CYLINDER

$30.79

$

Usually ships in 2-12 days

0

53

266440-4

BOLT - M5X40

$

$

Not available

54

593-30140-01

MUFFLER

$

$

Not available

55

345916-5

GASKET, EXHAUST

$

$

Not available

56

Subaru Robin 195141-6

PISTON RING SET

$56.99

$

In Stock, only 1 left!

0

$2.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

59

257796-6

PIN, PISTON

$

$

Not available

60

212085-6

NEEDLE CAGE1014

$

$

Not available

61

254040-2

KEY - 3

$

$

Not available

62

Subaru Robin 213537-0

SEAL, OIL - 12

$23.99

$

In Stock, only 1 left!

0

63

Subaru Robin 267425-3

WASHER - 26

$

$

Currently unavailable

64

Subaru Robin 142170-0

CRANKSHAFT CP

$

$

Currently unavailable

65

Subaru Robin 213682-1

SEAL, OIL - 12

$14.99

$

In Stock, only 2 left!

0

66

Subaru Robin 266809-2

SCREW - M5X14

$1.99

$

In Stock, Qty 9

0

67

Subaru Robin 593-50040-01

COVER STARTER ASSY

Note: Includes ITEMS 68-76

$128.99

$

Usually ships in 2-12 days

0

$11.99

$

Usually ships in 2-12 days

0

69

266585-8

SCREW - 5X12 (TAPPING)

$

$

Not available

70

325923-4

ARM, SWING

$

$

Not available

$4.49

$

Usually ships in 2-12 days

0

$24.99

$

Usually ships in 2-12 days

0

$27.99

$

Usually ships in 2-12 days

0

74

444036-3

ROPE, STARTER

$

$

Not available

75

Subaru Robin 424317-1

KNOB, STARTER

$18.99

$

Usually ships in 2-12 days

0

76

424360-0

STOPPER, ROPE

$

$

Not available

77

$17.99

$

Usually ships in 2-12 days

0

78

Subaru Robin 163447-0

FILTER, FUEL

$

$

Not available

79

Subaru Robin 345920-4

CLAMP, HOSE

$

$

Not available

$13.99

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 2-12 days

0

$7.49

$

Usually ships in 2-12 days

0

83

455360-9

TANK, FUEL

$

$

Not available

$8.99

$

Usually ships in 2-12 days

0

85

140435-4

CAP, FUEL TANK

$

$

Not available
