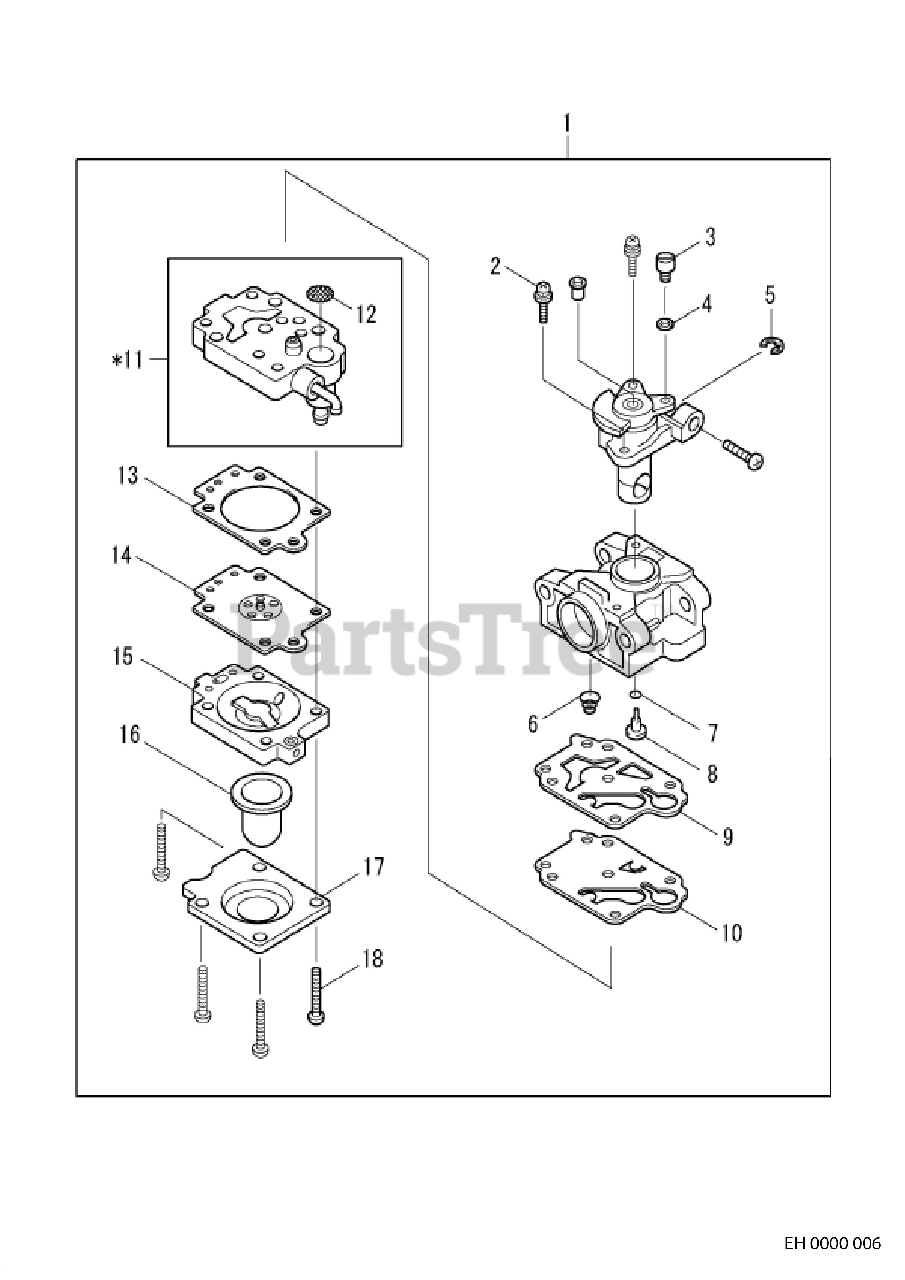

EH035V2B401 (EH035) - Subaru Robin Engine Carburetor Parts Diagram

Engine

Carburetor Parts Diagram

  • Title

$495.99

$

Usually ships in 2-12 days

0

3

325922-6

SWIVEL

$

$

Not available

4

413140-9

WASHER

$

$

Not available

5

257964-1

STOP RING E-3

$

$

Not available

$

$

Currently unavailable

7

213538-8

O RING - 2

$

$

Not available

8

325924-2

JET

$

$

Not available

9

Subaru Robin 442155-9

GASKET, PUMP

$15.99

$

In Stock, only 1 left!

0

10

Subaru Robin 168575-6

DIAPHRAGM, PUMP

$17.99

$

In Stock, only 1 left!

0

11

Subaru Robin 593-60150-20

PUMP BODY ASSY

$86.50

$

Usually ships in 2-12 days

0

12

WJ0-00963-64

SCREEN

$

$

Not available

13

Subaru Robin 442154-1

GASKET, METERING DIAPHRAGM

$11.99

$

Usually ships in 2-12 days

0

14

168574-8

DIAPHRAGM, METERING

$

$

Not available

15

140438-8

AIR PURGE BODY

$

$

Not available

16

Subaru Robin 424314-7

BULB, PURGE

$

$

Not available

17

Subaru Robin 346270-0

COVER, PURGE BULB

$17.99

$

Usually ships in 2-12 days

0

18

266582-4

SCREW - 3X24

$

$

Not available
