EH 4400 (UT-03638) - Homelite Generator Generator II Parts Diagram

Generator

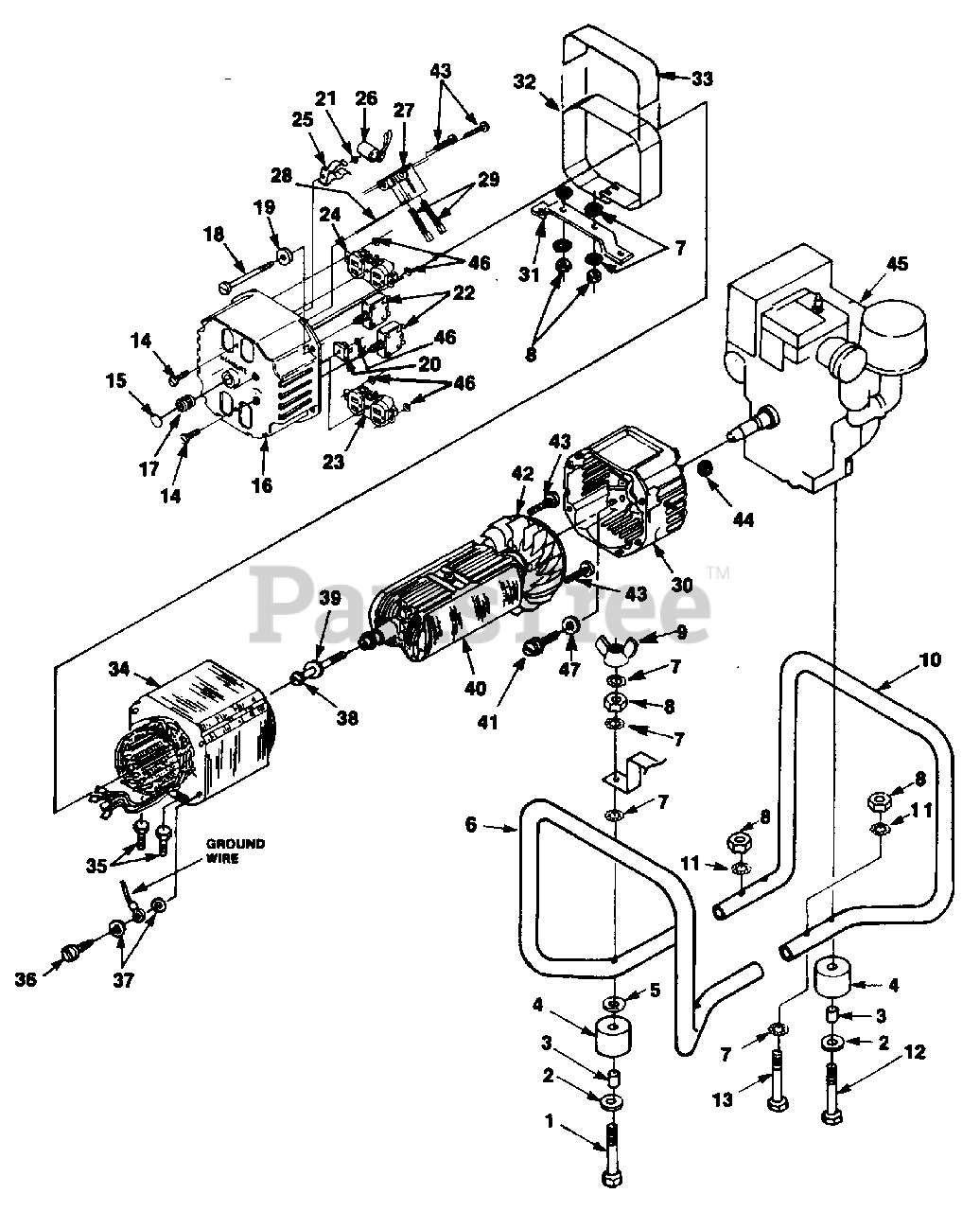

Generator II Parts Diagram

  • Title

1

Homelite 80089

SCREW

$

$

Not available

2

Homelite 84046

WASHER- Flat (5/16")

$

$

Not available

3

Homelite 49733

SPACER- Foot

$

$

Not available

4

Homelite 48789

FOOT

$

$

Not available

5

Homelite 84058

WASHER- Flat (5/16")

$

$

Not available

6

Homelite 028431

MEMBER- Frame

Note: (gen. end)

$

$

Currently unavailable

7

Homelite 83033

WASHER- Lock
(Superseded to 83081)

Note: (ext./Int.)

$

$

Not available

8

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

9

Homelite 81015

NUT- Wing

$

$

Not available

10

Homelite 028421

MEMBER- Frame

Note: (eng. end)

$

$

Not available

11

Homelite 83081

WASHER- Lock

Note: (Int.)

$

$

Not available

12

Homelite 82530

SCREW- (5/16 x 31/4")

$

$

Not available

13

Homelite JA400200

SCREW

$

$

Not available

14

Homelite 80630

SCREW- Mach. pan hd.

$

$

Not available

15

Homelite 02438

PLUG- Expansion

$

$

Not available

16

Homelite 023623

BRUSH HEAD

$

$

Currently unavailable

17

Homelite 03044

BEARING- Needle

$

$

Not available

18

Homelite 4885306

BOLT- Stator
(Superseded to UP03433)

$

$

Not available

19

Homelite 84124

WASHER- Flat
(Superseded to UP03418)

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 95672

RECTIFIER

$37.99

$

Usually ships in 3-7 days

0

21

Homelite 02436

WASHER- Shaft retention

$

$

Not available

22

Homelite 49831

BREAKER- Circuit (20 amp.)
(Superseded to UP03489)

$

$

Not available

23

Homelite 02863

RECEPTACLE- (240 V) (Nema 6-20R)
(Superseded to 02863A)

$

$

Not available

24

Homelite 50991

RECEPTACLE-Duplex(Nema 5-15R)
(Superseded to UP03497)

$

$

Not available

25

Homelite 02435

CLIP-Spring cap

$

$

Not available

26

Homelite A02860

CAPACITOR

Note: (w/Lead)

$

$

Currently unavailable

27

Homelite 02365

BRUSH HOLDER
(Superseded to UP03449)

$36.99

$

Usually ships in 3-7 days

0

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

28

Homelite 02857

PIN- Retaining

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

30

Homelite 020266

BELL- End
(Superseded to UP06695)

$

$

Not available

31

Homelite 028451

BRACKET- Generator support

$

$

Not available

32

Homelite 028781

WRAPPER- Stator

$

$

Currently unavailable

33

Homelite 02982

DECAL- Warning

$

$

Currently unavailable

34

Homelite A02796S

STATOR

$

$

Currently unavailable

35

Homelite 80083

SCREW- 5/16-18 x 3/4"

$

$

Not available

36

Homelite 82538

SCREW

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 83121

WASHER- Lock

Note: (int./ext)

$

$

Not available

38

Homelite 4885210

BOLT- Rotor

$

$

Currently unavailable

39

Homelite 03433

WASHER
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

40

Homelite A02799AS

ROTOR

$

$

Not available

41

Homelite 80187

SCREW-(3/8-16 x 7/8")
(Superseded to PS80187)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite A04013

FAN- Generator
(Superseded to UP03737)

$

$

Not available

43

Homelite 82526

SCREW- Pan hd.

$

$

Not available

44

Homelite 81267

NUT- Hex

$

$

Not available

45

ENGINE

Note: For engine replacement parts locate the engine brand name model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

46

Homelite 02437

WASHER- Shaft retention

$5.99

$

Usually ships in 3-7 days

0

47

Homelite 83078

WASHER- Lock (3/8")

$

$

Not available
