EH 2500 HD/CSA (UT-03707) - Homelite Generator Generator Parts Diagram

Generator

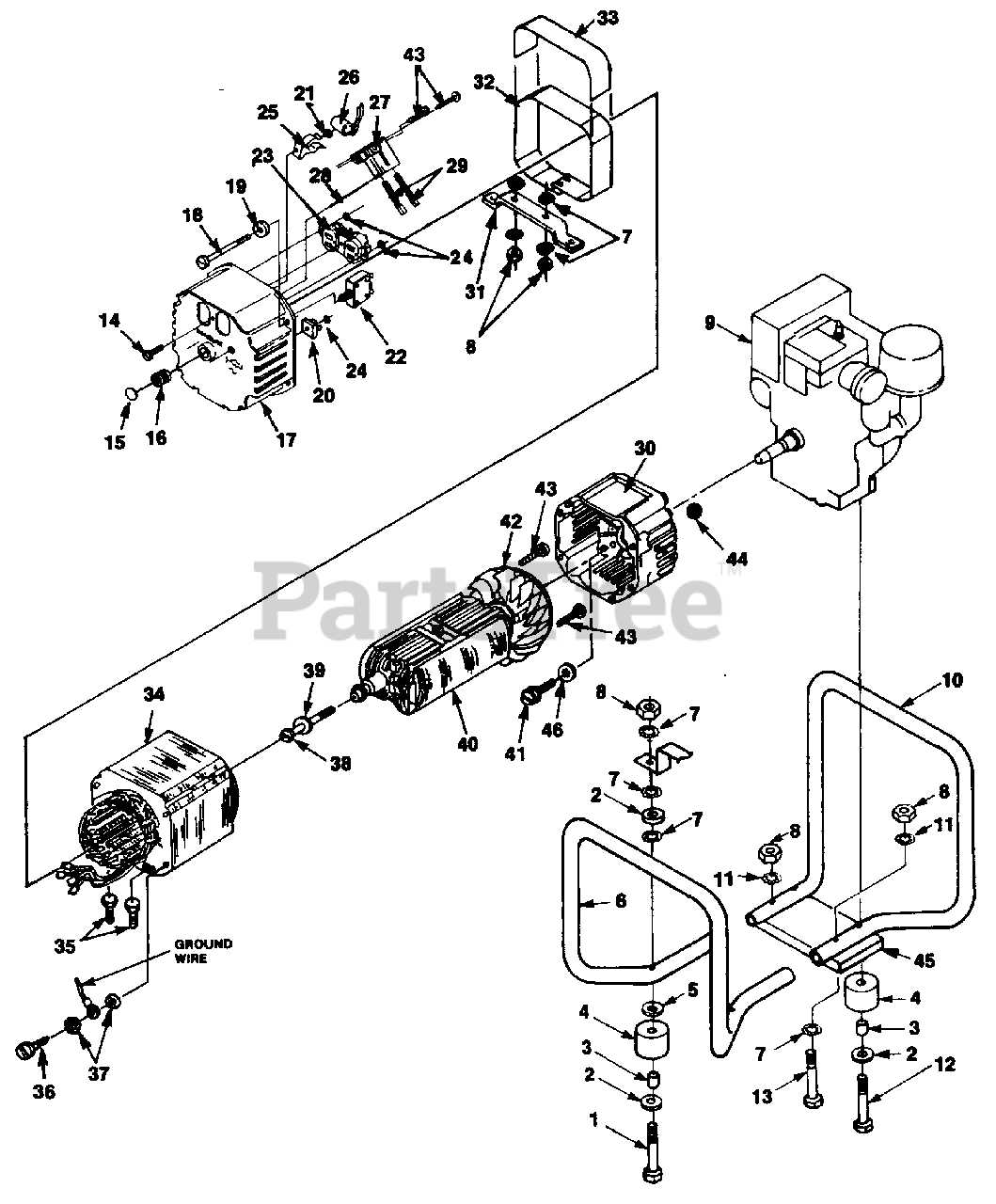

Generator Parts Diagram

  • Title

1

Homelite 80089

SCREW

$

$

Not available

2

Homelite 84046

WASHER- Flat (5/16")

$

$

Not available

3

Homelite 49733

SPACER- Foot

$

$

Not available

4

Homelite 48789

FOOT

$

$

Not available

5

Homelite 84058

WASHER- Flat (5/16")

$

$

Not available

6

Homelite 028671

MEMBER- Frame (gen. end)
(Superseded to A07986)

$214.99

$

Usually ships in 3-7 days

0

7

Homelite 83033

WASHER- Lock (ext./Int.)
(Superseded to 83081)

$

$

Not available

8

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

9

ENGINE

Note: For engine replacement parts locate the engine brand name model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

10

Homelite 028661

MEMBER- Frame (eng. end)
(Superseded to A07986)

$

$

Currently unavailable

11

Homelite 83081

WASHER- Lock (Int.)

$

$

Not available

12

Homelite 82530

SCREW- (5/16 x 31/4")

$

$

Not available

13

Homelite JA400200

SCREW

$

$

Not available

14

Homelite 80630

SCREW- Mach. pan hd.

$

$

Not available

15

Homelite 02438

PLUG- Expansion

$

$

Not available

16

Homelite 03044

BEARING- Needle

$

$

Not available

17

Homelite 023626A

BRUSH HEAD
(Superseded to 023622B)

$

$

Currently unavailable

18

Homelite 4885305

BOLT- Stator

$

$

Not available

19

Homelite 84124

WASHER- Flat
(Superseded to UP03418)

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 95672

RECTIFIER

$37.99

$

Usually ships in 3-7 days

0

21

Homelite 02436

WASHER- Shaft retention

$

$

Not available

22

Homelite 49831

BREAKER- Circuit (20 amp.)
(Superseded to UP03489)

$

$

Not available

23

Homelite 49832

RECEPTACLE- Duplex (Nema 5-20R)

$

$

Not available

24

Homelite 02437

WASHER- Shaft Retention

$5.99

$

Usually ships in 3-7 days

0

25

Homelite 02435

CLIP- Spring cap

$

$

Not available

26

Homelite A02860

CAPACITOR (w/Lead)

$

$

Currently unavailable

27

Homelite 02365

BRUSH HOLDER
(Superseded to UP03449)

$36.99

$

Usually ships in 3-7 days

0

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

28

Homelite 02857

PIN

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

30

Homelite 020266

BELL- End
(Superseded to UP06695)

$

$

Not available

31

Homelite 028441

BRACKET- Generator support

$

$

Currently unavailable

32

Homelite 028771

WRAPPER- Stator

$

$

Currently unavailable

33

Homelite 02981

DECAL- Warning

$

$

Currently unavailable

34

Homelite A02797S

STATOR

$

$

Currently unavailable

35

Homelite 80083

SCREW- 5/16-18 x 3/4"

$

$

Not available

36

Homelite 82538

SCREW

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 83121

WASHER- Lock (int./ext)

$

$

Not available

38

Homelite 4885211

BOLT- Rotor

$

$

Not available

39

Homelite 03433

WASHER
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

40

Homelite A02800AS

ROTOR

$

$

Not available

41

Homelite 80604

SCREW
(Superseded to UP03390)

$

$

Not available

42

Homelite A04013

FAN- Generator
(Superseded to UP03737)

$

$

Not available

43

Homelite 82526

SCREW- Pan hd.

$

$

Not available

44

Homelite 81267

NUT- Hex

$

$

Not available

45

Homelite 498421

PLATE- Frame

$

$

Not available

46

Homelite 83078

WASHER- Lock

$

$

Not available
