EH 2500 CSA (UT-03646) - Homelite Generator Generator Parts Diagram

Generator

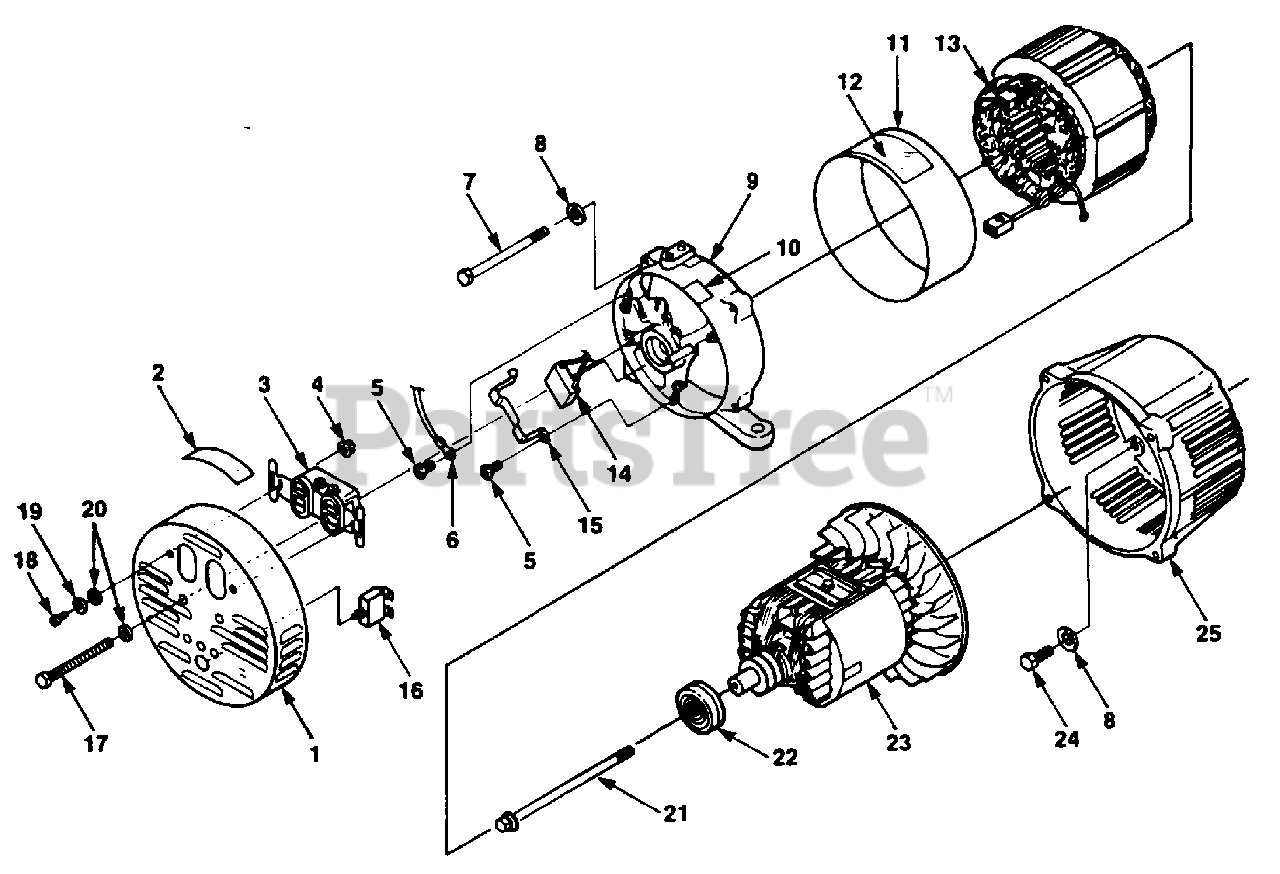

Generator Parts Diagram

  • Title

1

Homelite 0120907

END COVER

$

$

Currently unavailable

2

Homelite 49495

DECAL- Warning

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 50991

RECEPTACLE (120V) (EH2500)
(Superseded to UP03497)

$

$

Not available

Homelite 49832

RECEPTACLE (120V) (EH2500 CSA)

$

$

Not available

4

Homelite 81009

NUT (120V receptacle)

$

$

Not available

5

Homelite 0120911

SCREW- (m5 x 12mm) (brush holder)

$

$

Currently unavailable

6

Homelite A47610

LEAD- Electrical (ground)

$

$

Currently unavailable

7

Homelite 0120913

BOLT- Stator

$

$

Currently unavailable

8

Homelite 83033

WASHER- Lock ext./int.
(Superseded to 83081)

$

$

Not available

9

Homelite 0120905

END BELL

$

$

Currently unavailable

10

Homelite 0120910

GROMMET

$5.99

$

Usually ships in 3-7 days

0

11

Homelite 0120902

COVER- Stator

$

$

Currently unavailable

12

Homelite 49641

DECAL- Output

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 0120901

STATOR

$

$

Not available

14

Homelite 0120906

CAPACITOR

$

$

Not available

15

Homelite 0120909

HOLDER- Capacitor

$

$

Not available

16

Homelite 49831

BREAKER- Circuit (20 amp)
(Superseded to UP03489)

$

$

Not available

17

Homelite 0120912

BOLT- Cover (m5)

$

$

Not available

18

Homelite 80260

SCREW (120V receptacle)

$

$

Not available

19

Homelite 83022

WASHER- Lock
(Superseded to UP03410)

$

$

Not available

20

Homelite 84111

WASHER- Flat

$

$

Not available

21

Homelite 0120908

BOLT- Rotor

$

$

Not available

22

Homelite 0120904

BEARING- Ball

$

$

Currently unavailable

23

Homelite 0120903

ROTOR

$950.99

$

Usually ships in 3-7 days

0

24

Homelite 80604

SCREW- Hex hd. (3/8-16 x 1")
(Superseded to UP03390)

$

$

Not available

25

Homelite 0120916

ADAPTER

$

$

Currently unavailable

Homelite 0120914

HARNESS- Wire (not shown)

$

$

Currently unavailable
