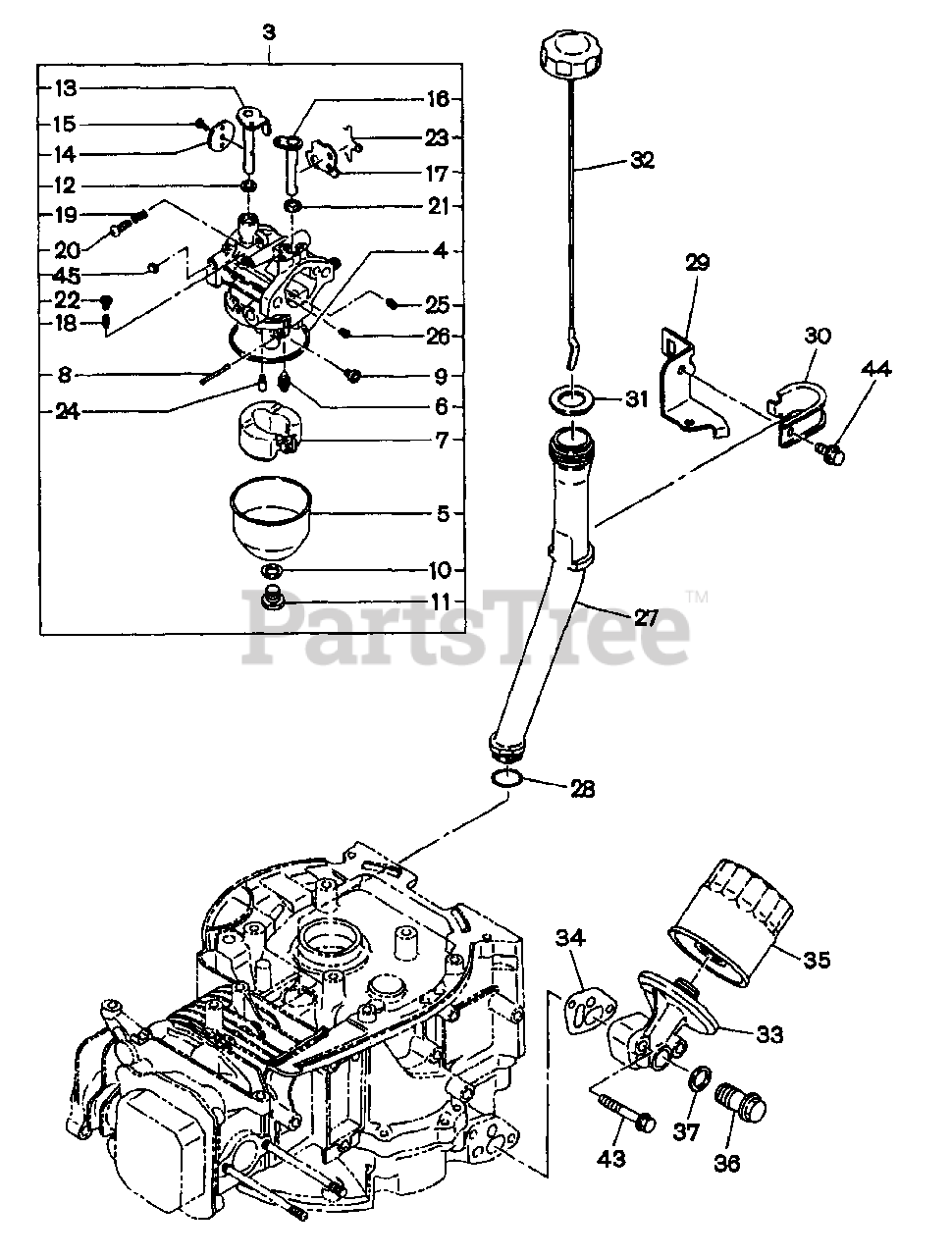

  • Title
3

Snapper 261-62301-10

CARBURETOR ASS'Y

Note: Was 261-62301-00 (Includes items 4 thru 26 and 45)

$

$

Not available

4

Snapper 261-62545-08

GASKET, float chamber

$

$

Not available

5

Snapper 261-62350-08

CHAMBER, float

$

$

Not available

6

Snapper 226-62501-08

VALVE, float

$

$

Not available

$

$

Not available

8

$

$

Not available

$

$

Not available

10

Snapper 215-62430-08

GASKET, chamber set

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 261-62351-08

PLUG, chamber set

$

$

Not available

$

$

Not available

13

Snapper 261-62530-08

THROTTLE SHAFT ASS'Y

$

$

Not available

14

Snapper 261-62535-08

THROTTLE VALVE

$

$

Not available

$

$

Not available

16

Snapper 261-62520-08

CHOKE SHAFT ASS'Y

$

$

Not available

17

Snapper 261-62525-08

CHOKE VALVE

$

$

Not available

18

Snapper 261-62420-08

SLOW JET (#42)

$

$

Not available

$

$

Currently unavailable

20

Snapper 261-62353-08

ADJUST SCREW

$

$

Not available

$

$

Not available

22

Snapper 261-62355-08

PLUG, slow jet

$

$

Not available

$

$

Not available

24

Snapper 261-62357-08

PLUG, slow passage

$

$

Not available

25

Snapper 261-62415-08

JET, slow air bleed

$

$

Not available

26

Snapper 261-62410-08

JET, main air bleed

$

$

Not available

27

$

$

Not available

28

Snapper 024-01900-00

O-RING

Note: Was 006-26101-90

$4.99

$

In Stock, Qty 5

0

29

Snapper 261-65301-01

BRACKET, oil filler

$

$

Not available

30

Snapper 261-65201-03

CLAMP, oil filler

$

$

Not available

$

$

Not available

32

Snapper 261-63601-01

OIL GAUGE, compl.

$

$

Not available

33

Snapper 261-65501-03

OIL FILTER BRACKET

$

$

Not available

34

Snapper 261-65601-13

GASKET, oil filter bracket

Note: Was 261-65601-03

$

$

Not available

35

Snapper 261-65902-A0

OIL FILTER ASS'Y

Note: Was 248-65801-00

$

$

Not available

36

Snapper 261-65701-01

OIL DRAIN PLUG

$

$

Not available

$

$

Not available

43

Snapper 011-00601-70

FLANGE BOLT

$

$

Not available

44

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

45

Snapper 261-62358-08

PLUG, expansion

$

$

Not available
